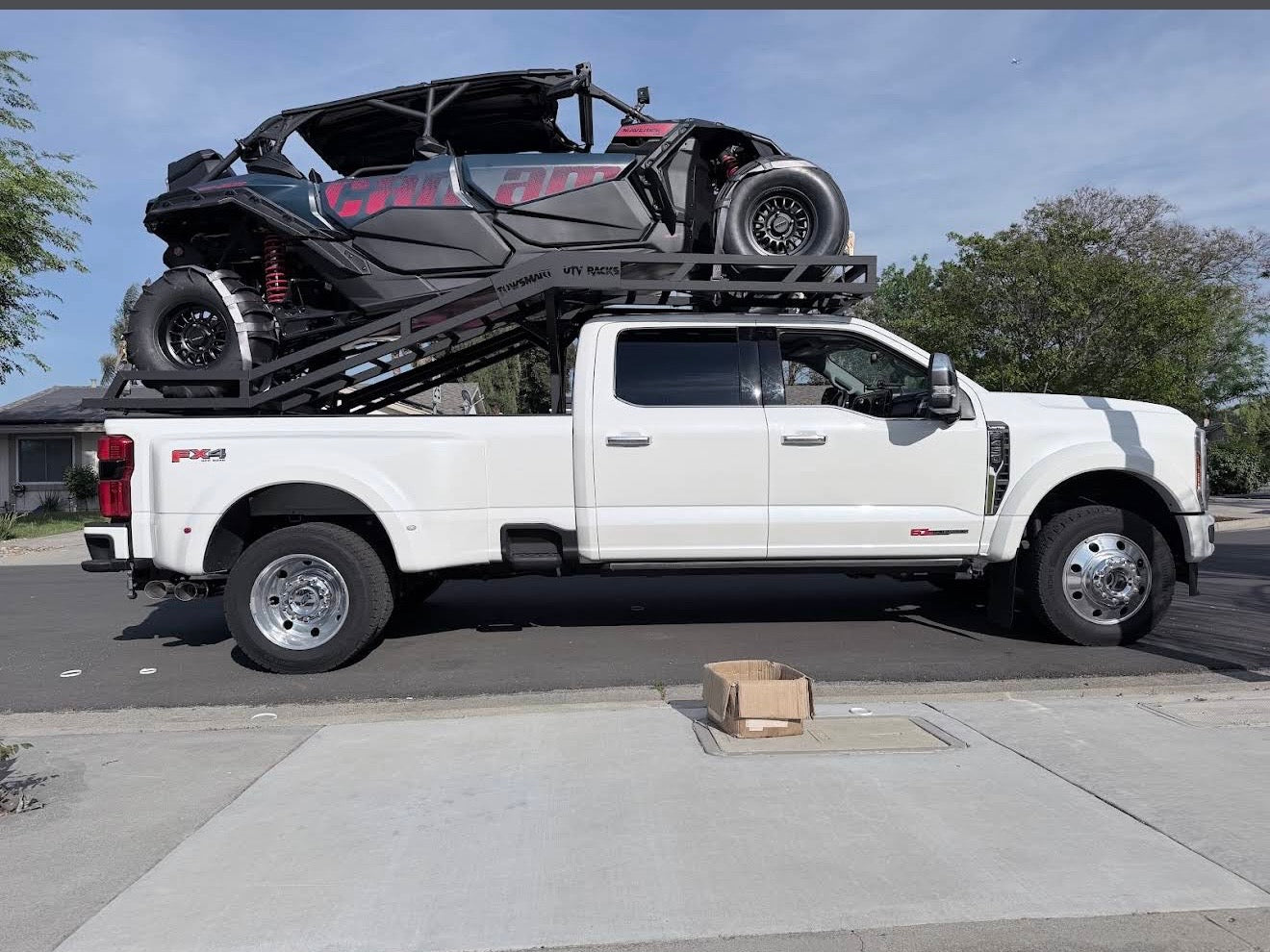

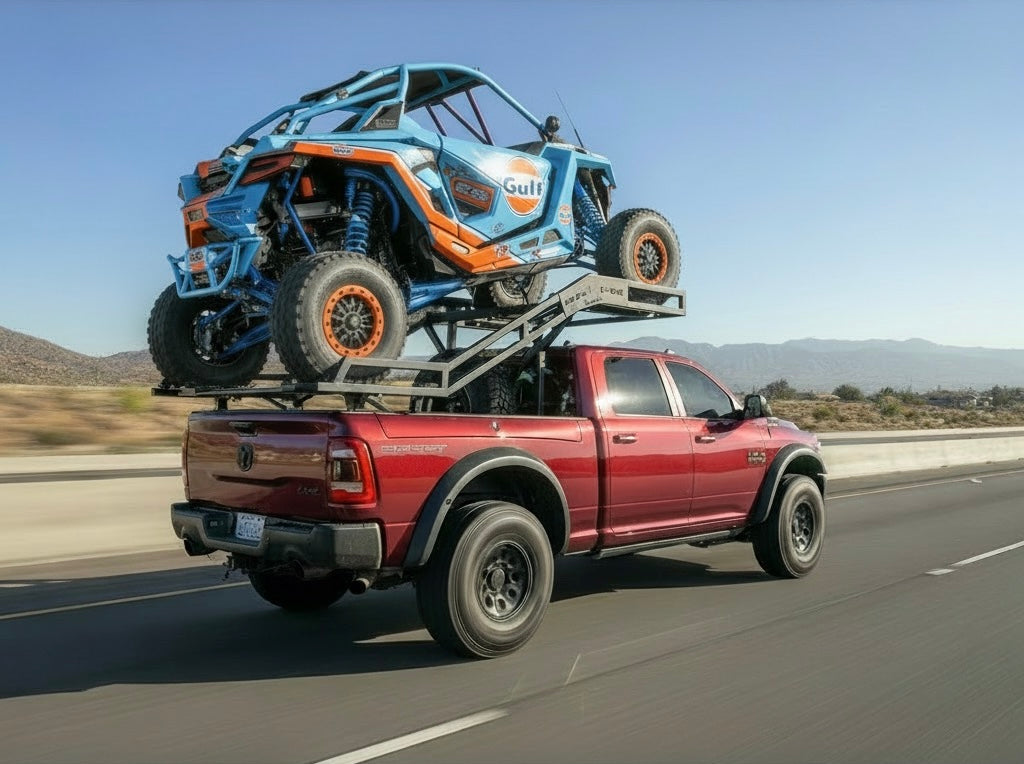

Tow Smart • UTV Deck System

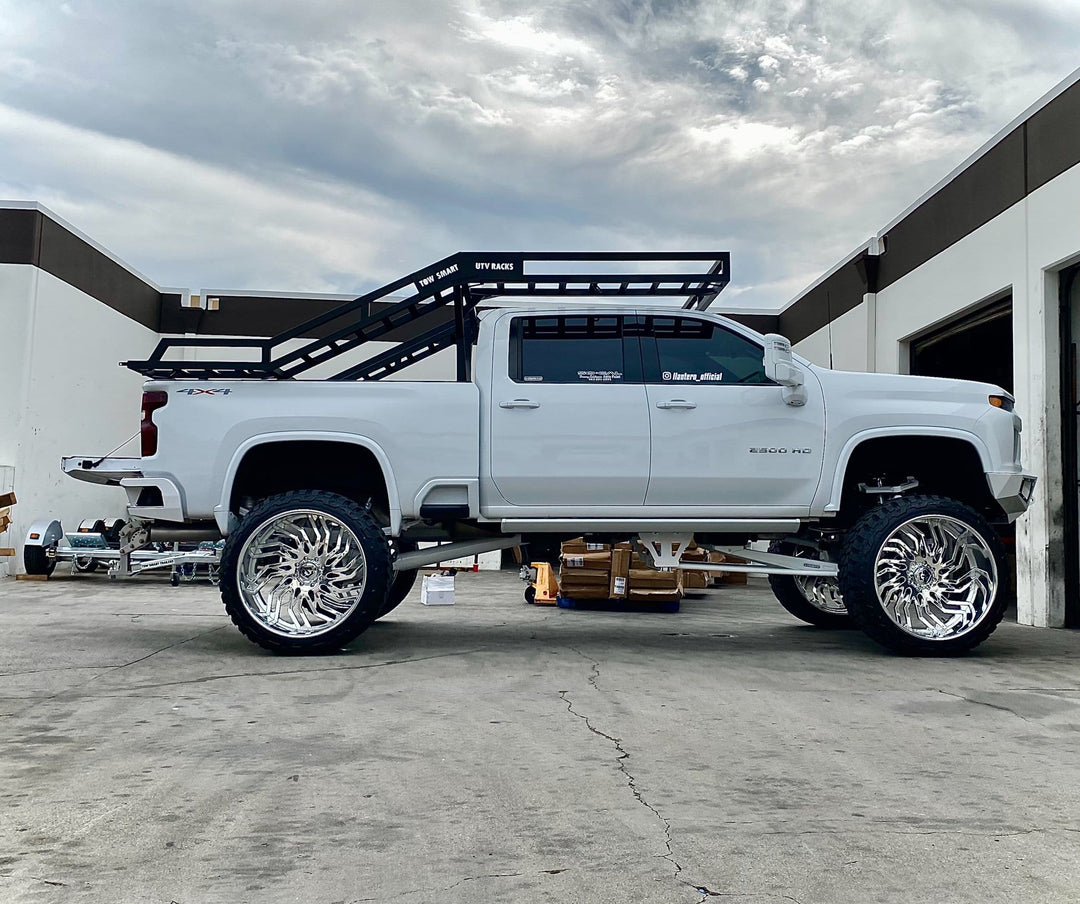

Short Bed UTV Truck Rack
Universal fit for factory 6′–6′8″ short-bed trucks. Haul your side-by-side while keeping your hitch free for a camper or boat. No drilling. Built in Santa Fe Springs, CA.
Short Bed Only — 6′–6′8″ Free 12.2 ft Ramp Upgrade — $600 Value
2×2 Steel Frame
No-Drill Mount
3000 lb Rated
Powder-Coated
Made in California

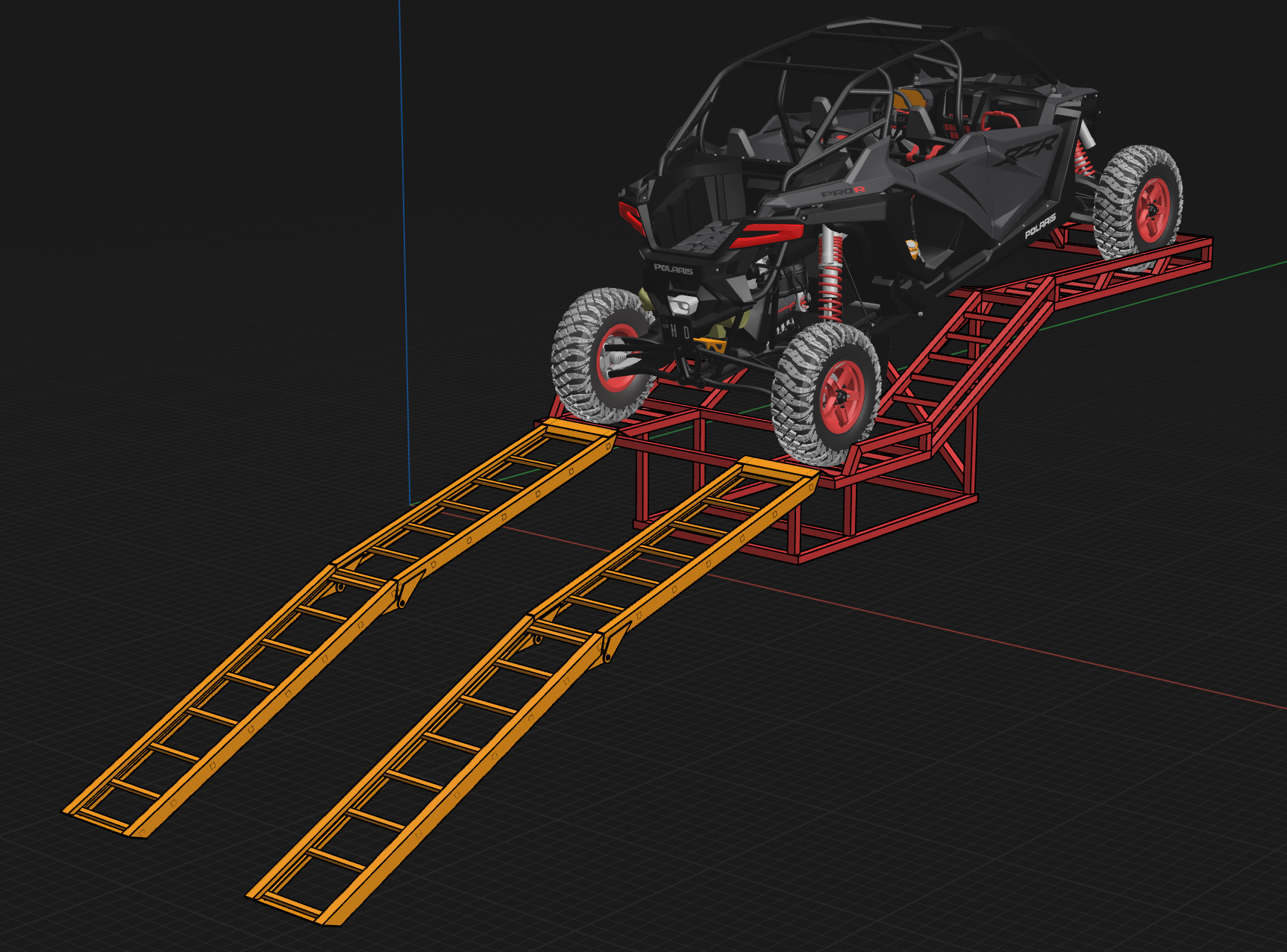

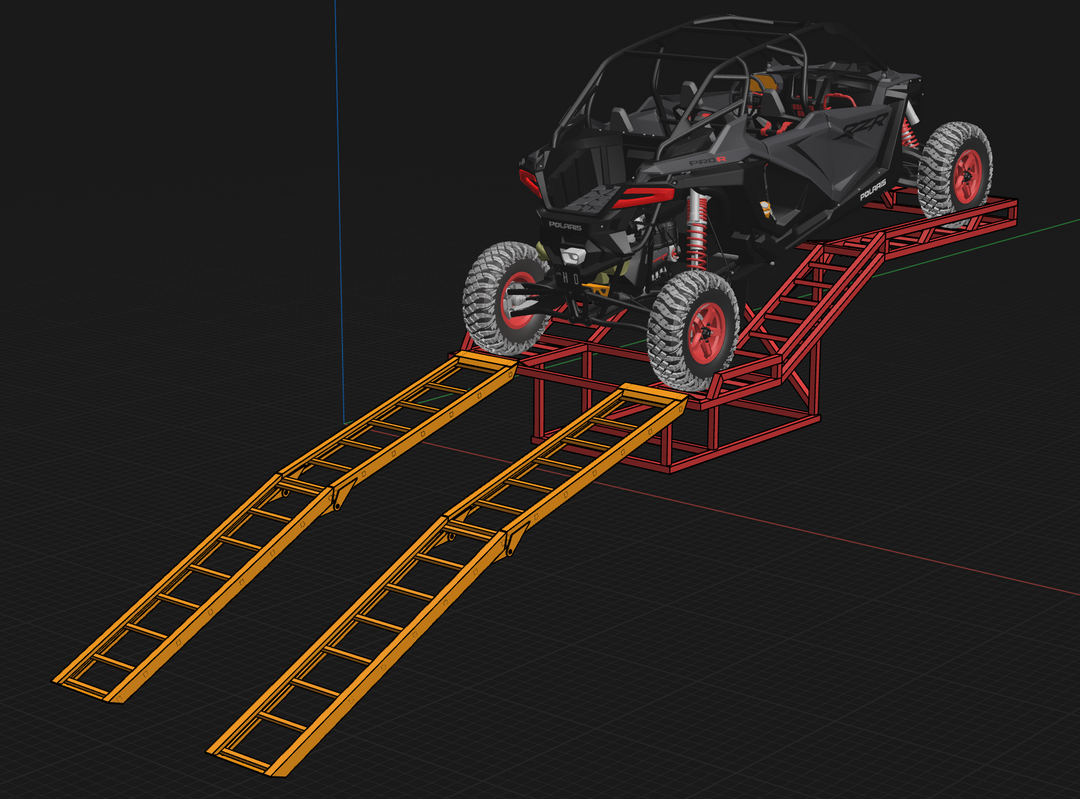

12.2 ft Ramps
What’s Included

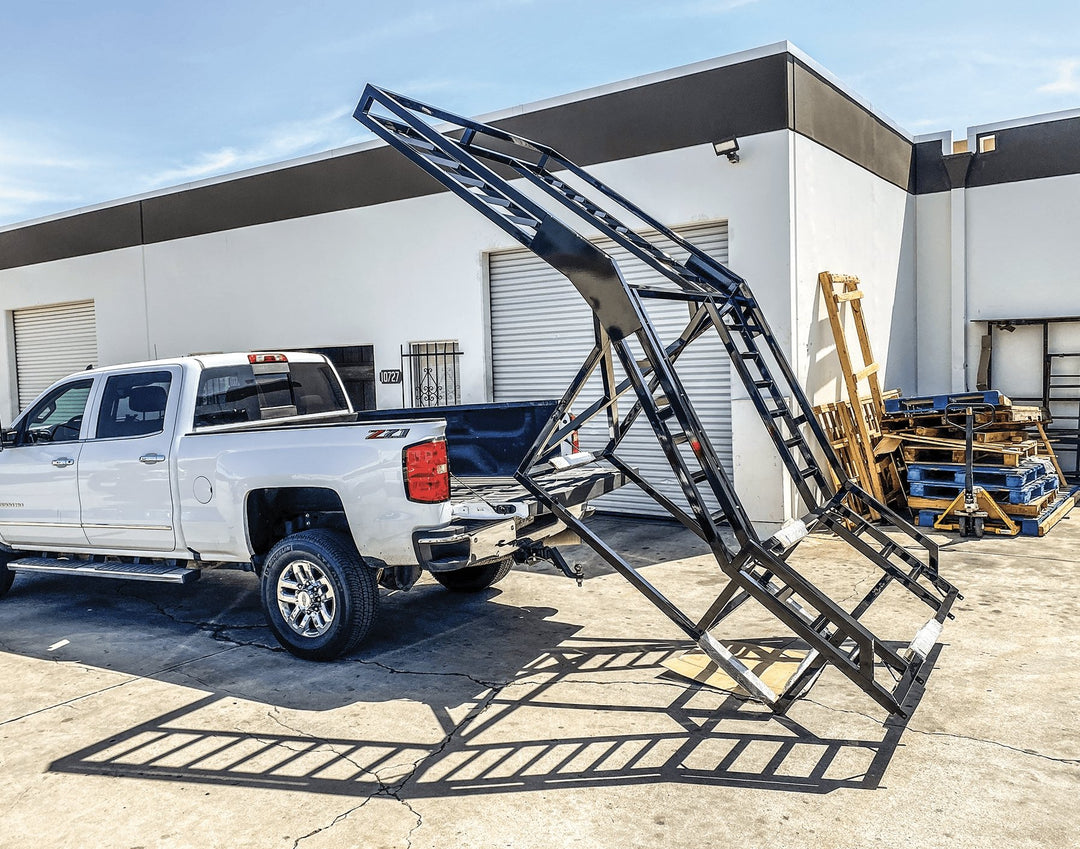

- Short Bed UTV Rack (2×2 steel, powder-coated flat black), fully welded
- (2) Bi-fold aluminum ramps — 12.2 ft × 18" (pinned safety), 3,000 lb combined

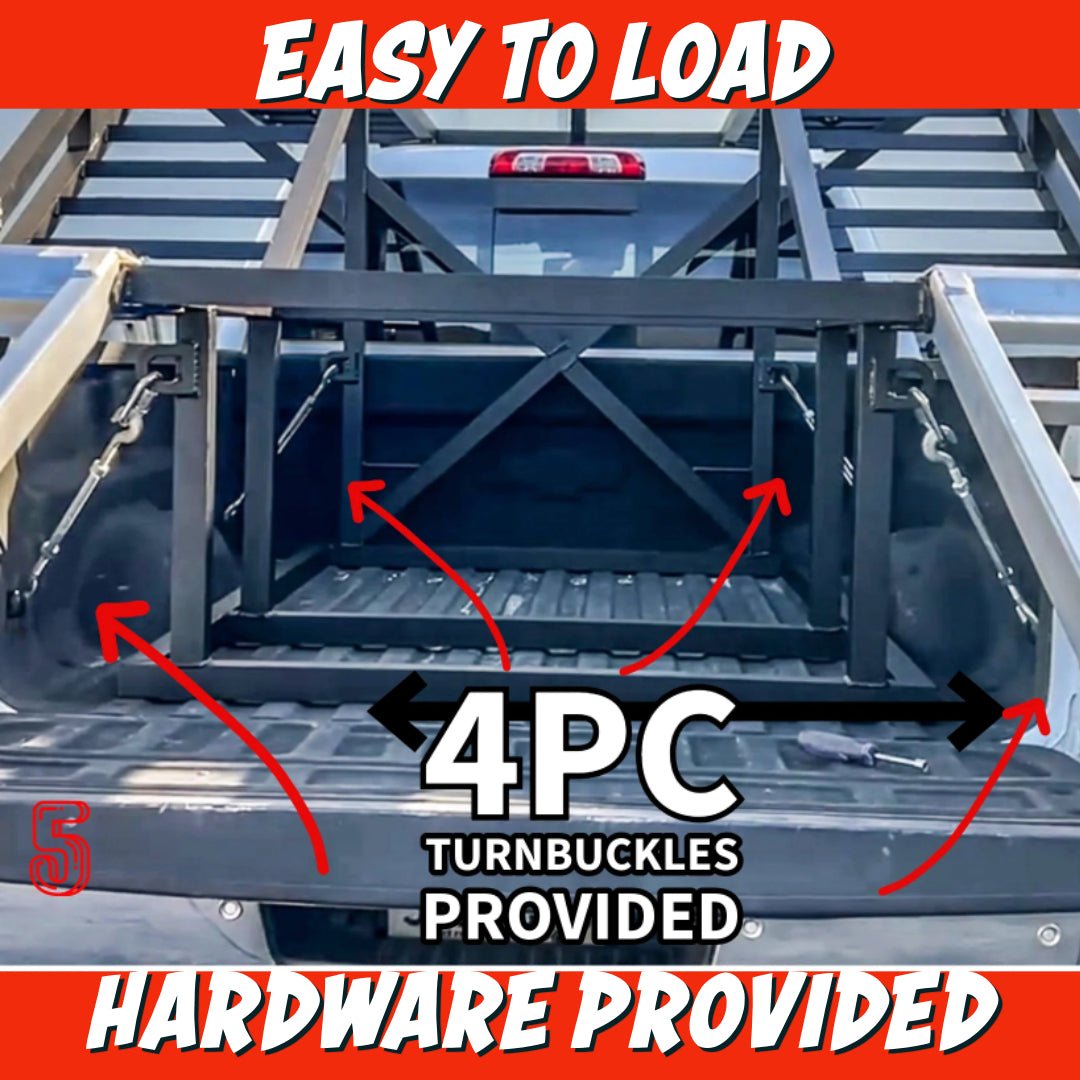

- (4) Heavy-duty turnbuckles — secure to factory corner tie-down points

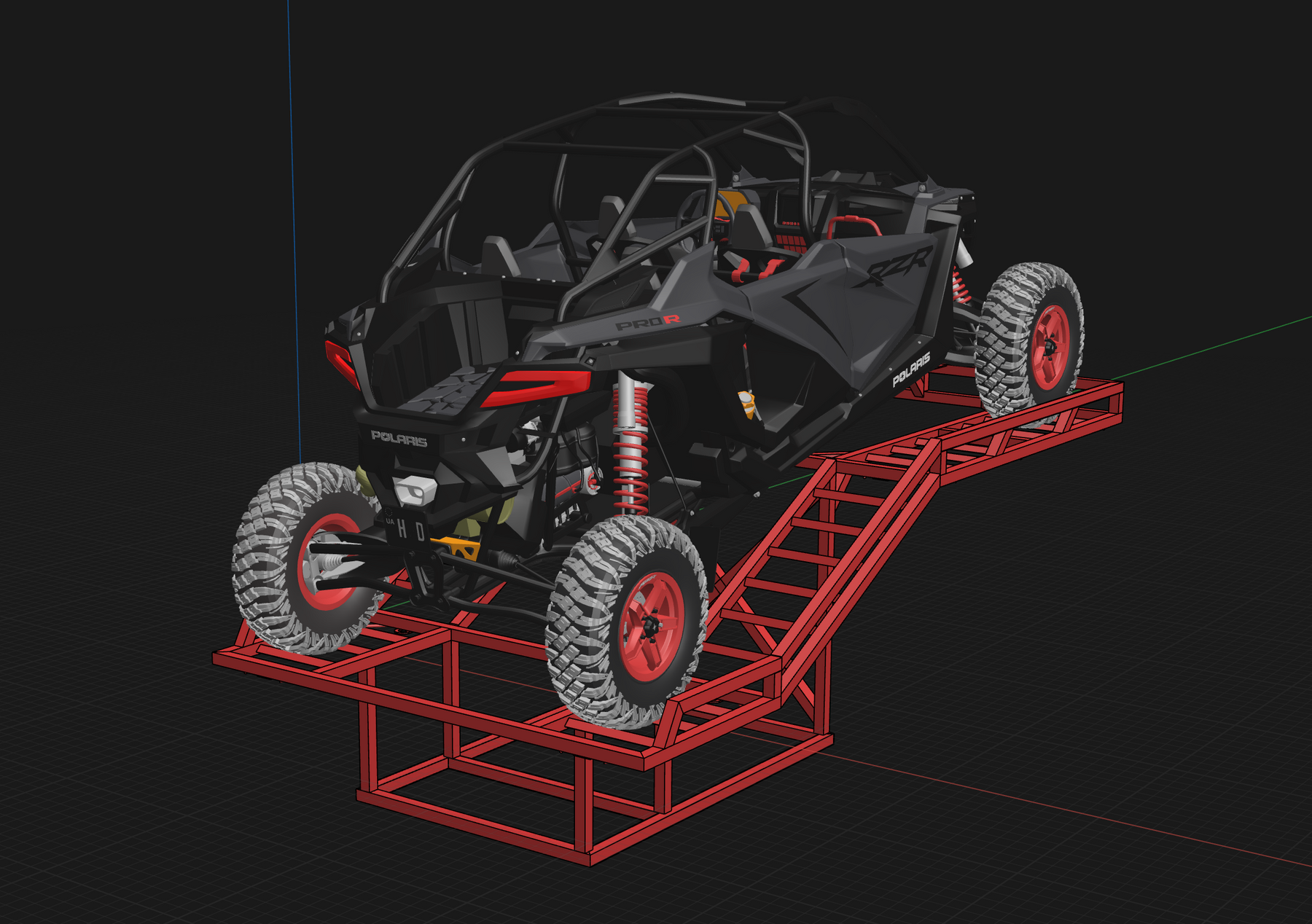

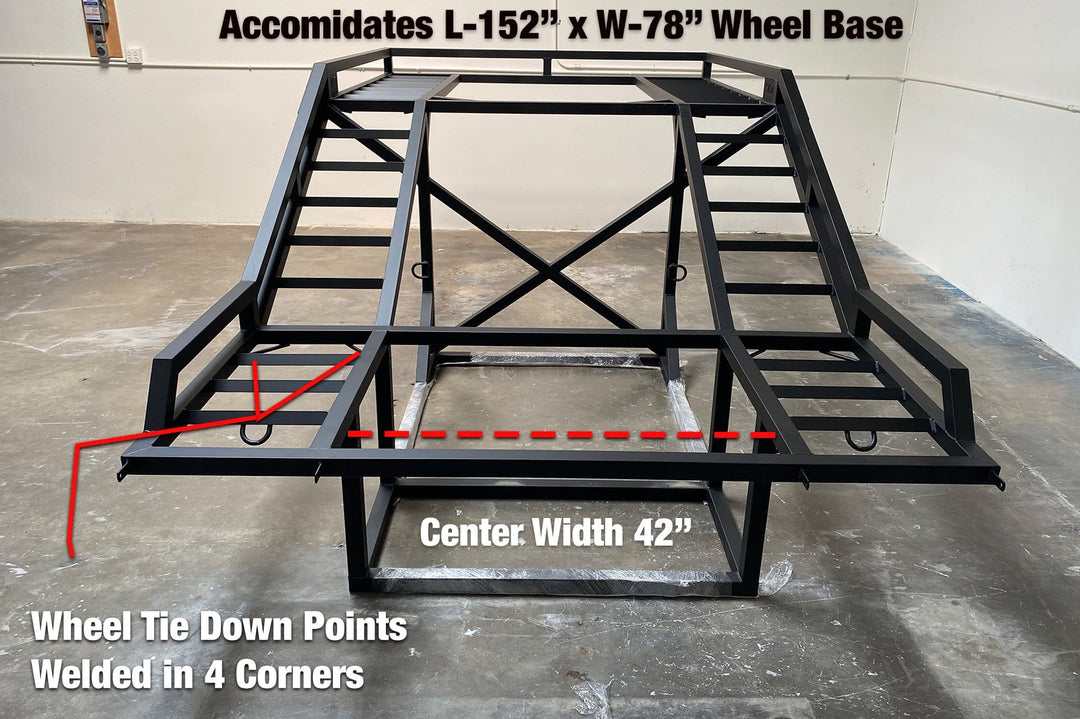

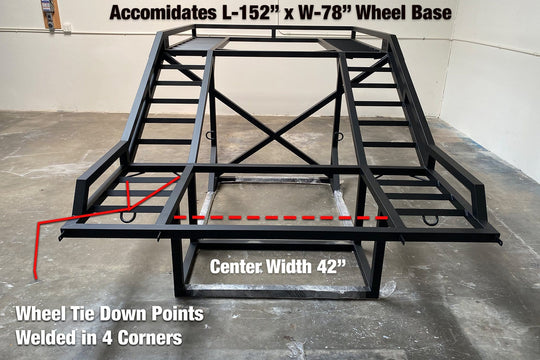

- Pre-positioned front-wheel tie-down points where the front wheels sit

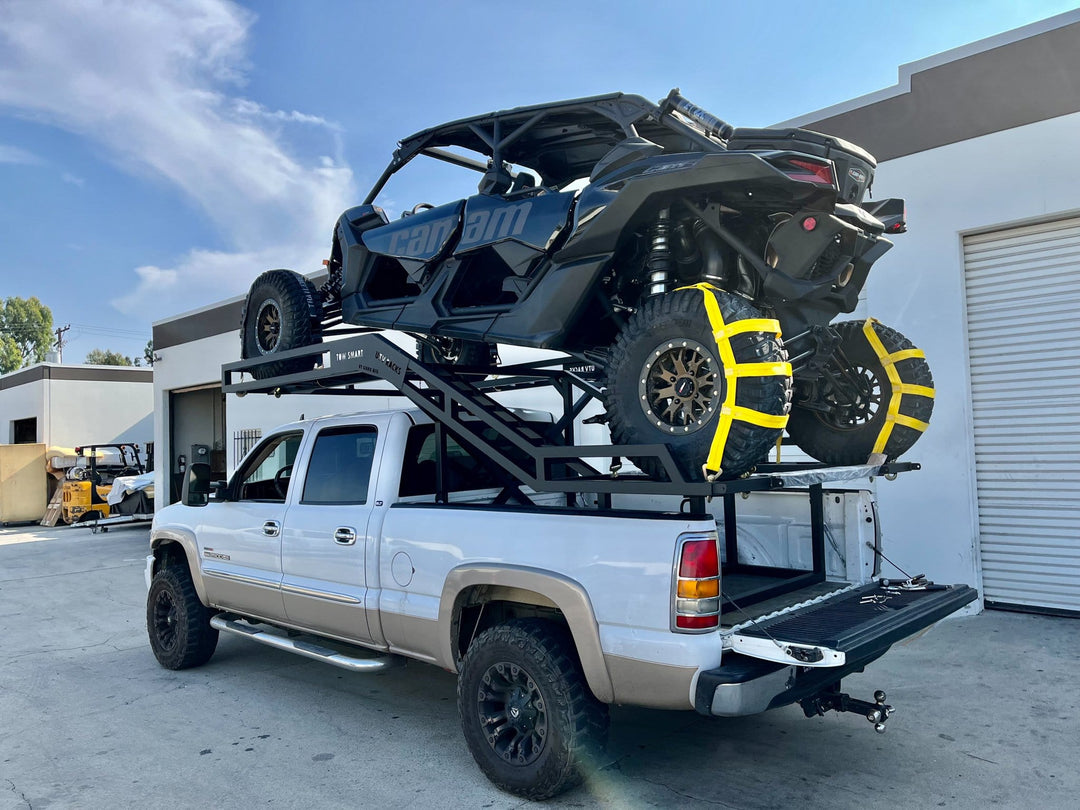

- Welded D-rings + 3-point per-wheel tie-downs
- 6" side railings for confident loading
Specifications — 76″ Short-Bed (2-Seater)
| Overall Width | 76" |
| Usable Width | 72" |
| Recommended Machine Length | Up to ~124" OAL |
| Base Length × Width | 72" × 48" |
| Mounting | No-drill • (4) turnbuckles to factory tie-downs |
| Ramps | (2) 12.2 ft × 18" aluminum, pin-in safety |
| Estimated Rack Weight | ~390 lbs |
Specifications — 86″ Short-Bed (4-Seater / Wide)
| Overall Width | 86" |
| Usable Width | 82" |
| Recommended Machine Length | Up to ~154" OAL |
| Base Length × Width | 72" × 48" |
| Mounting | No-drill • (4) turnbuckles to factory tie-downs |
| Ramps | (2) 12.2 ft × 18" aluminum, pin-in safety |
| Estimated Rack Weight | ~480 lbs |

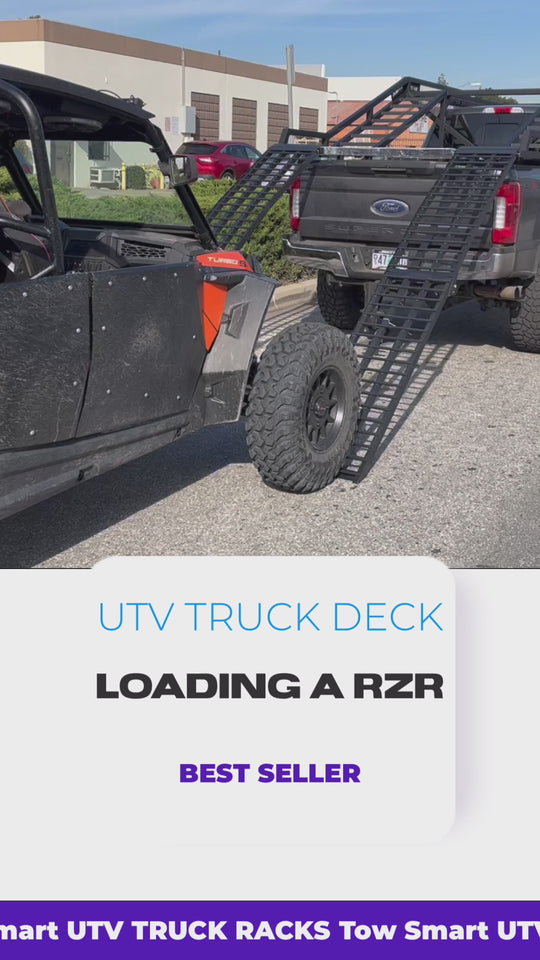

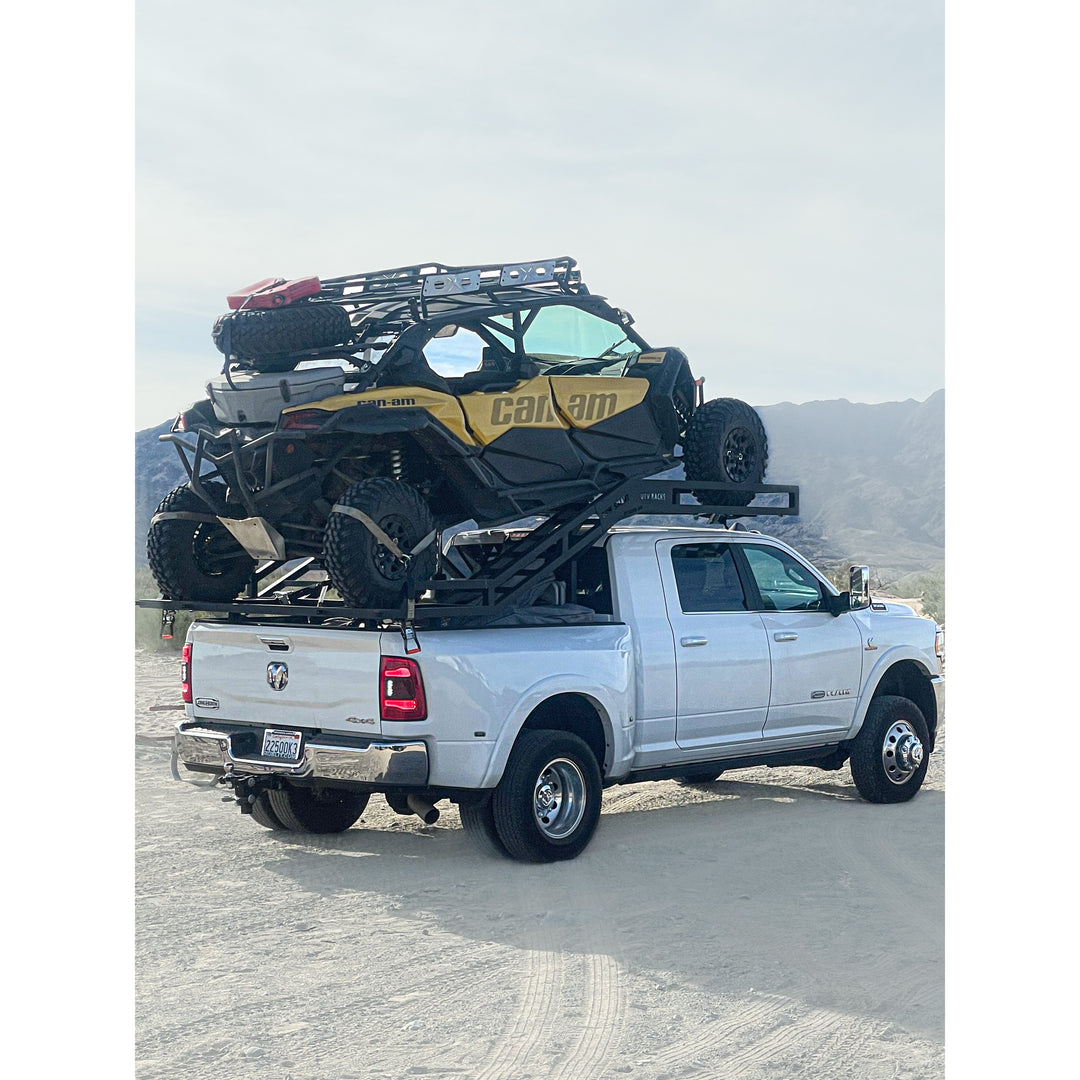

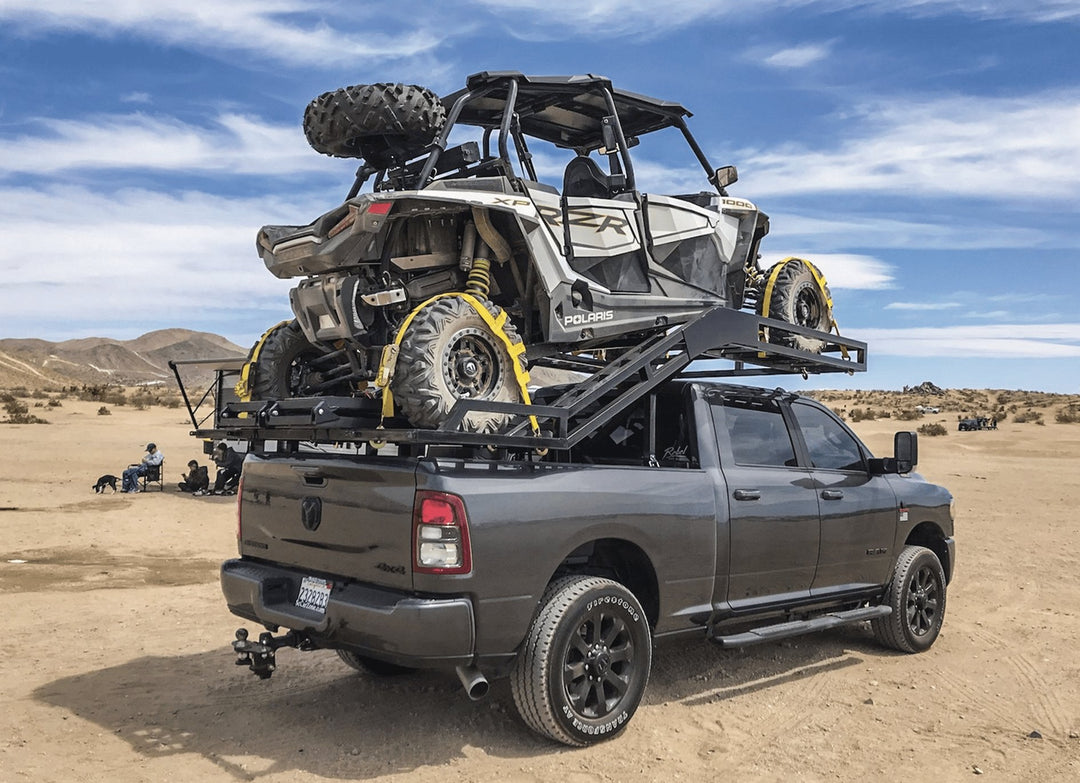

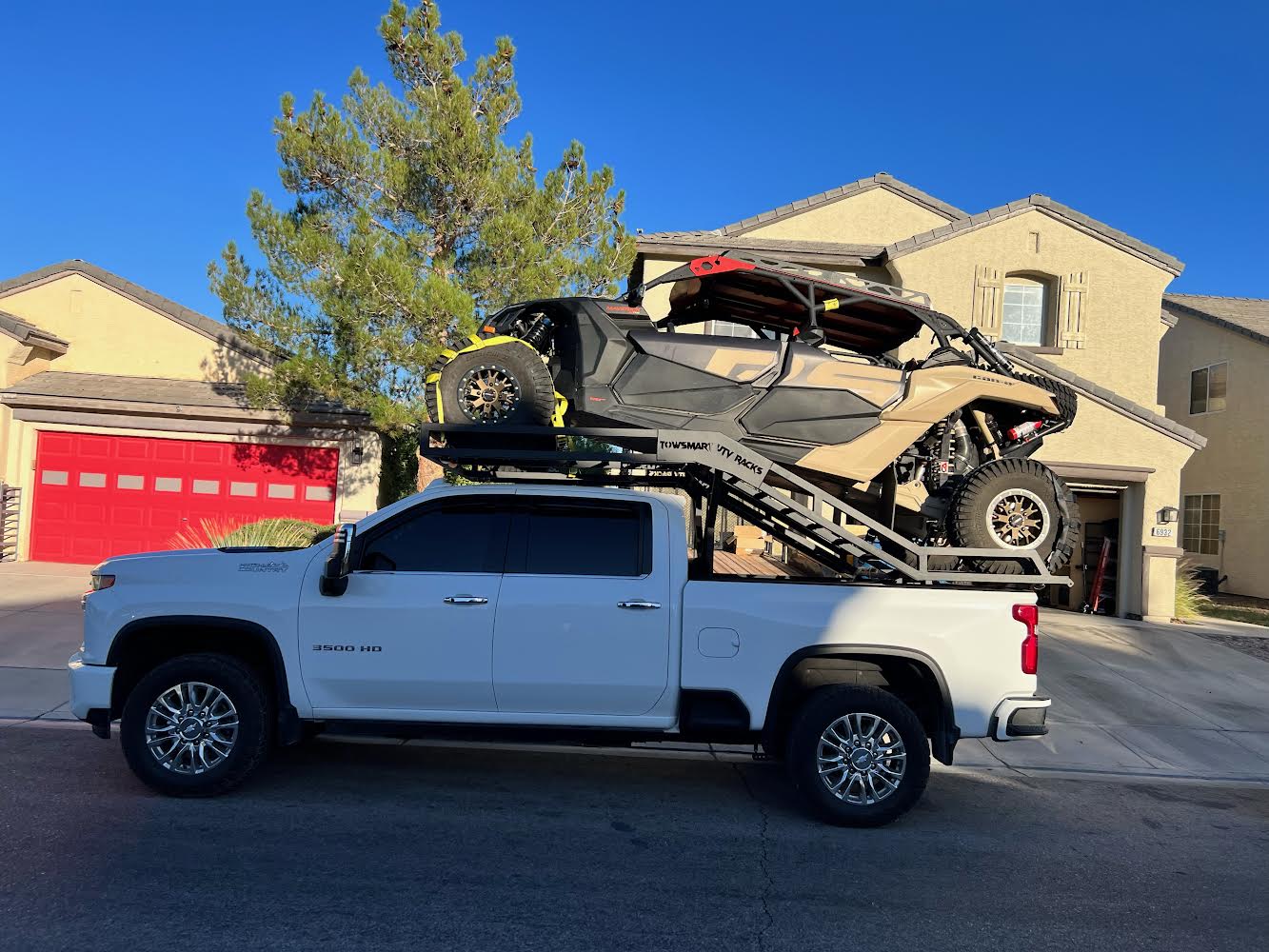

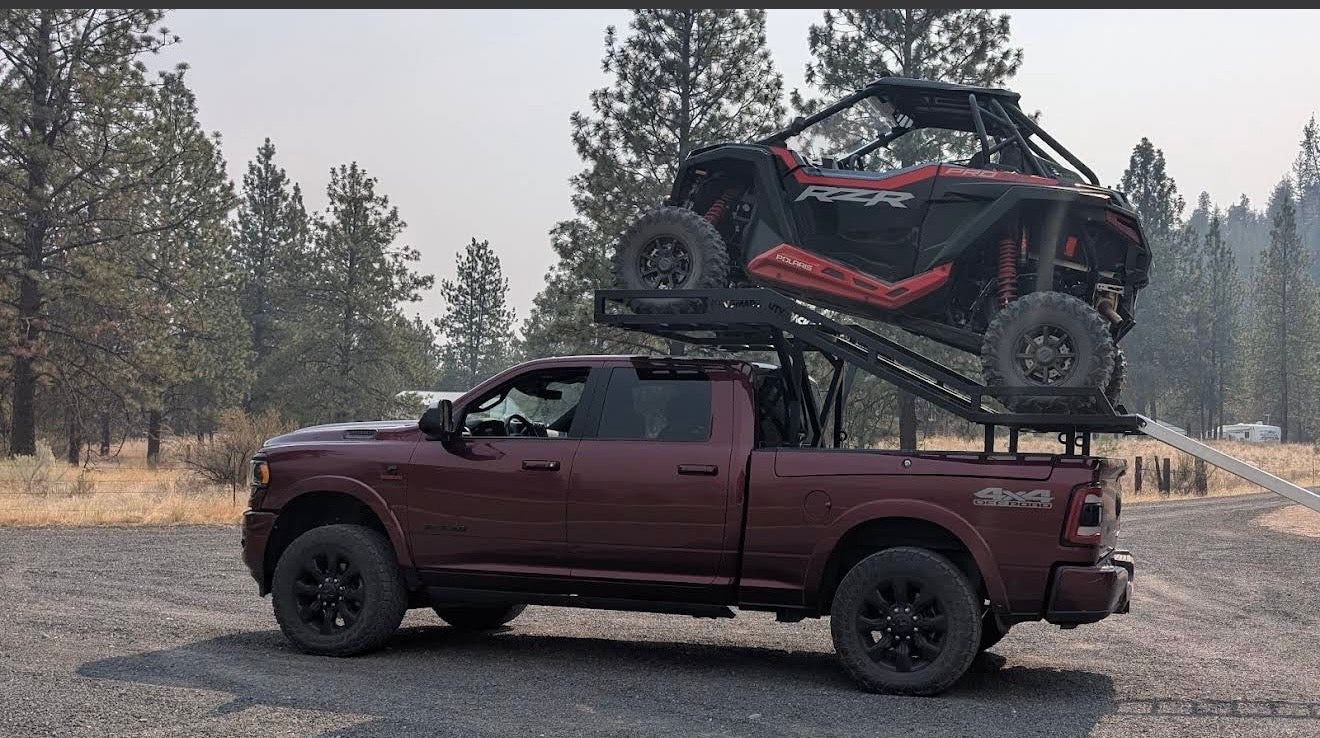

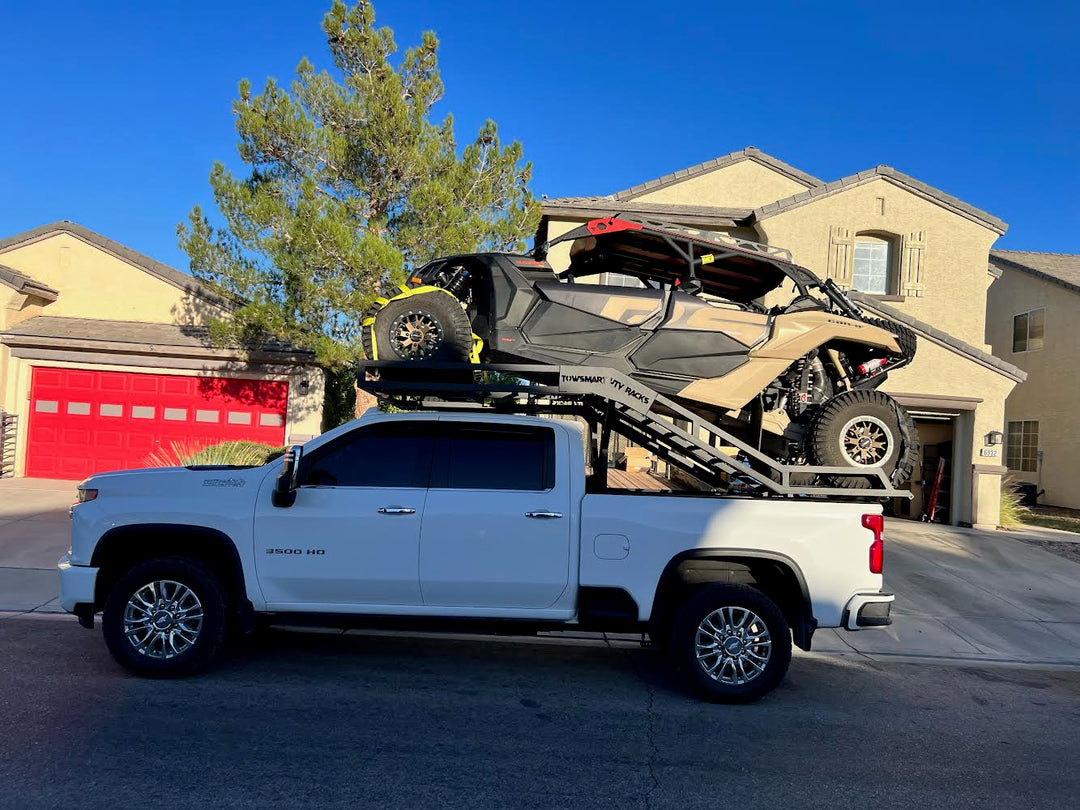

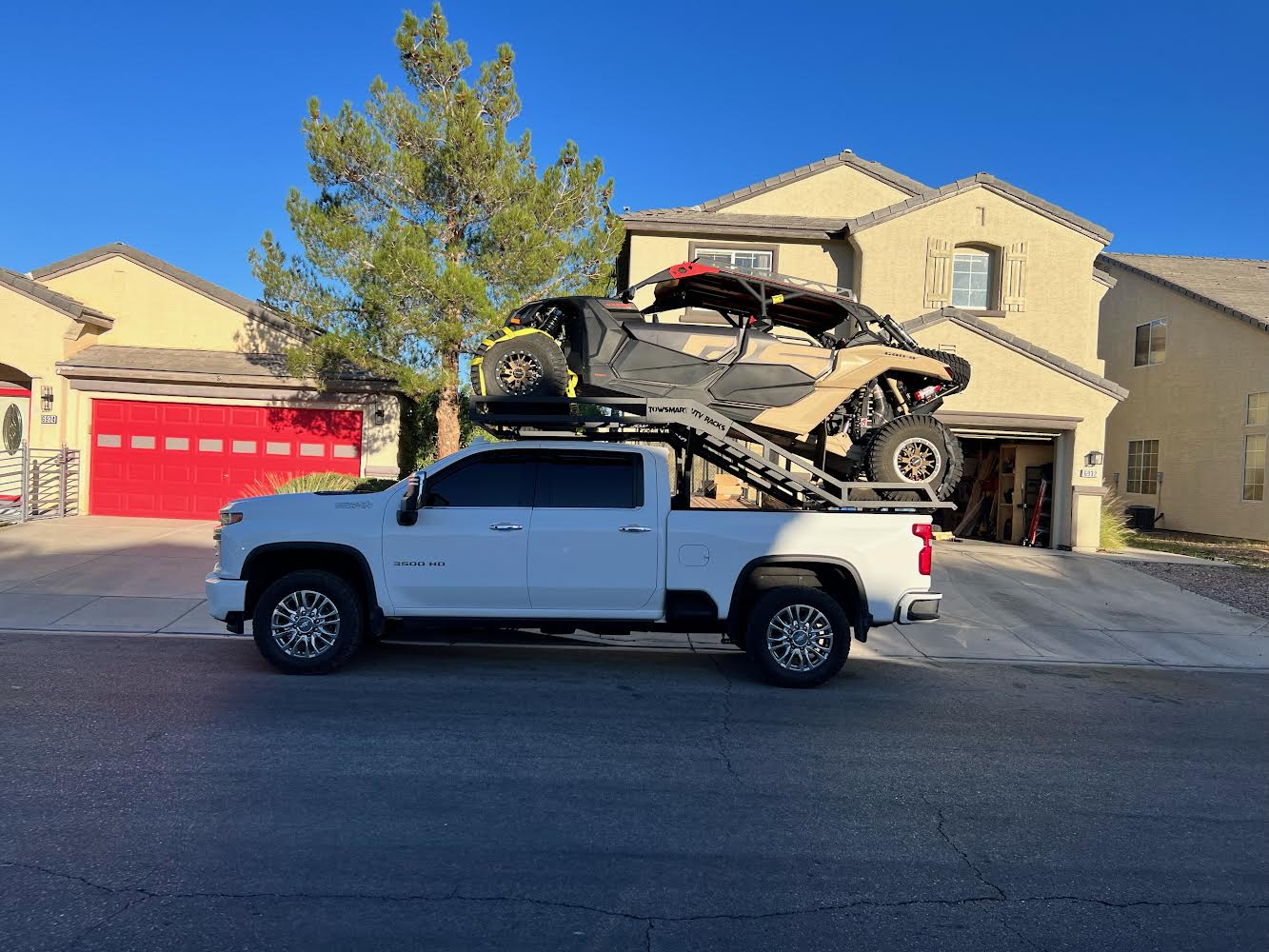

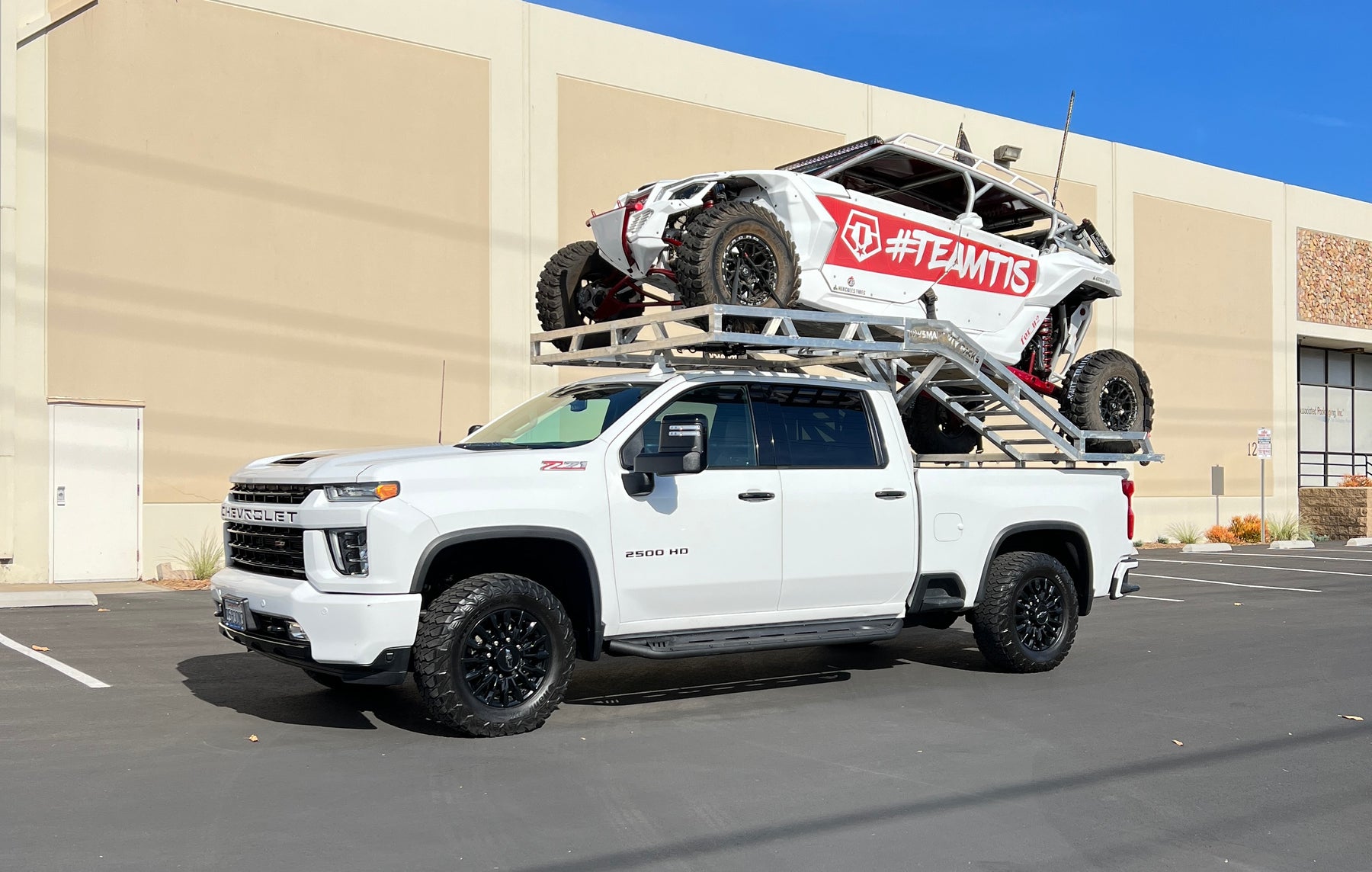

Video & Photos
Why Short-Bed Owners Choose This Rack

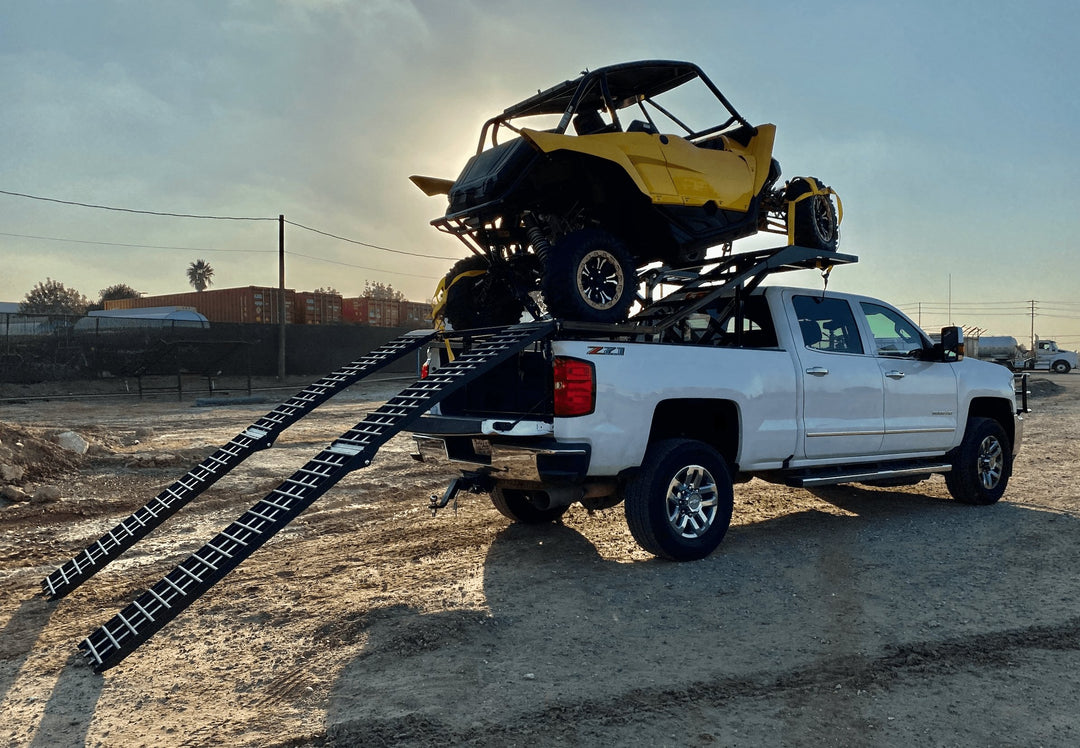

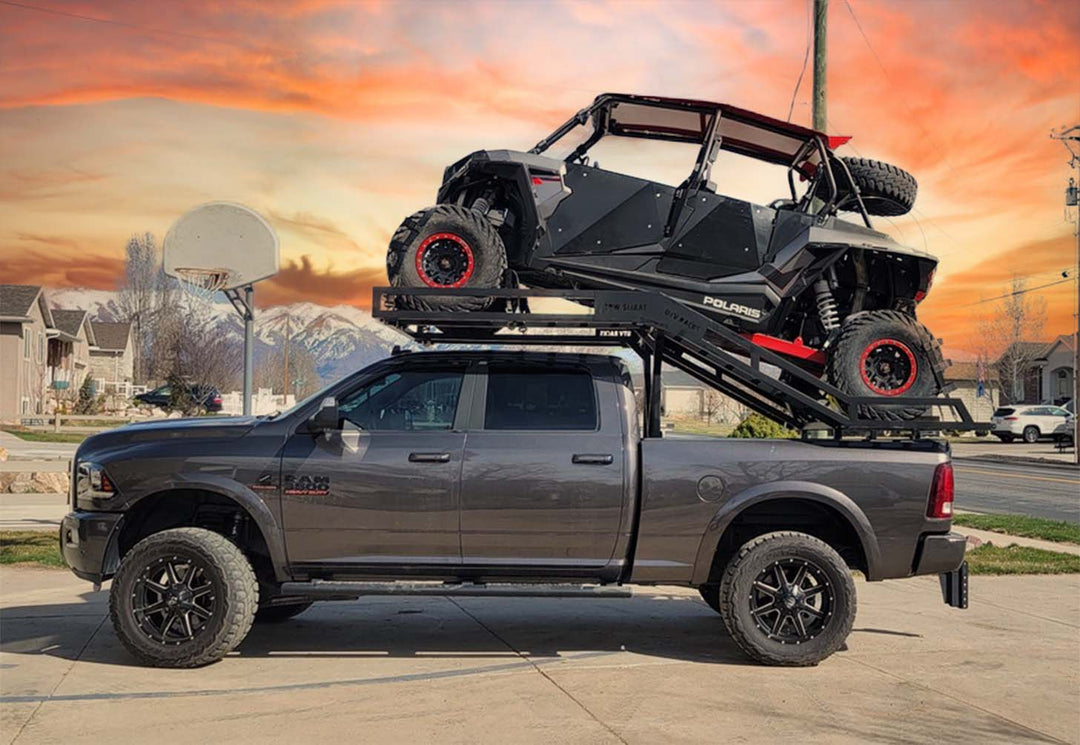

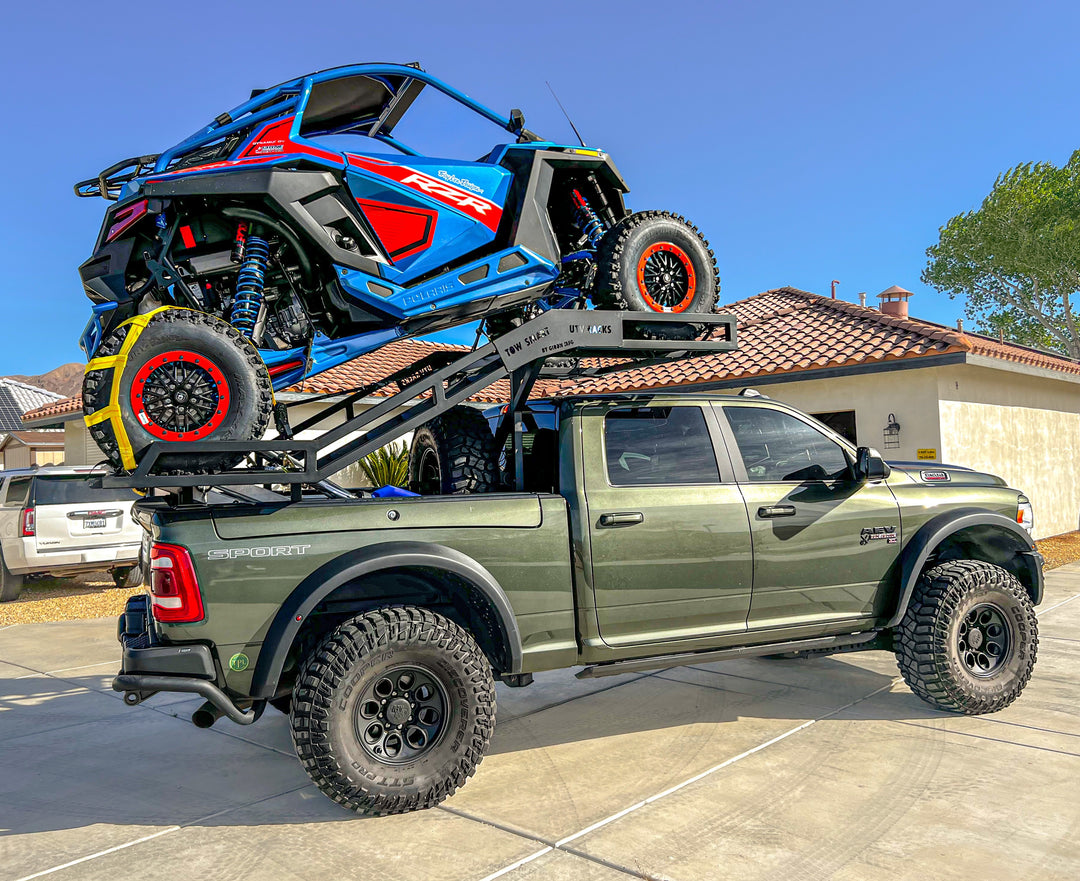

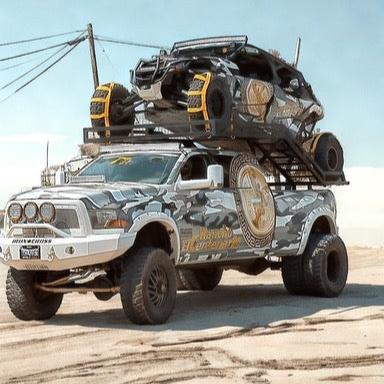

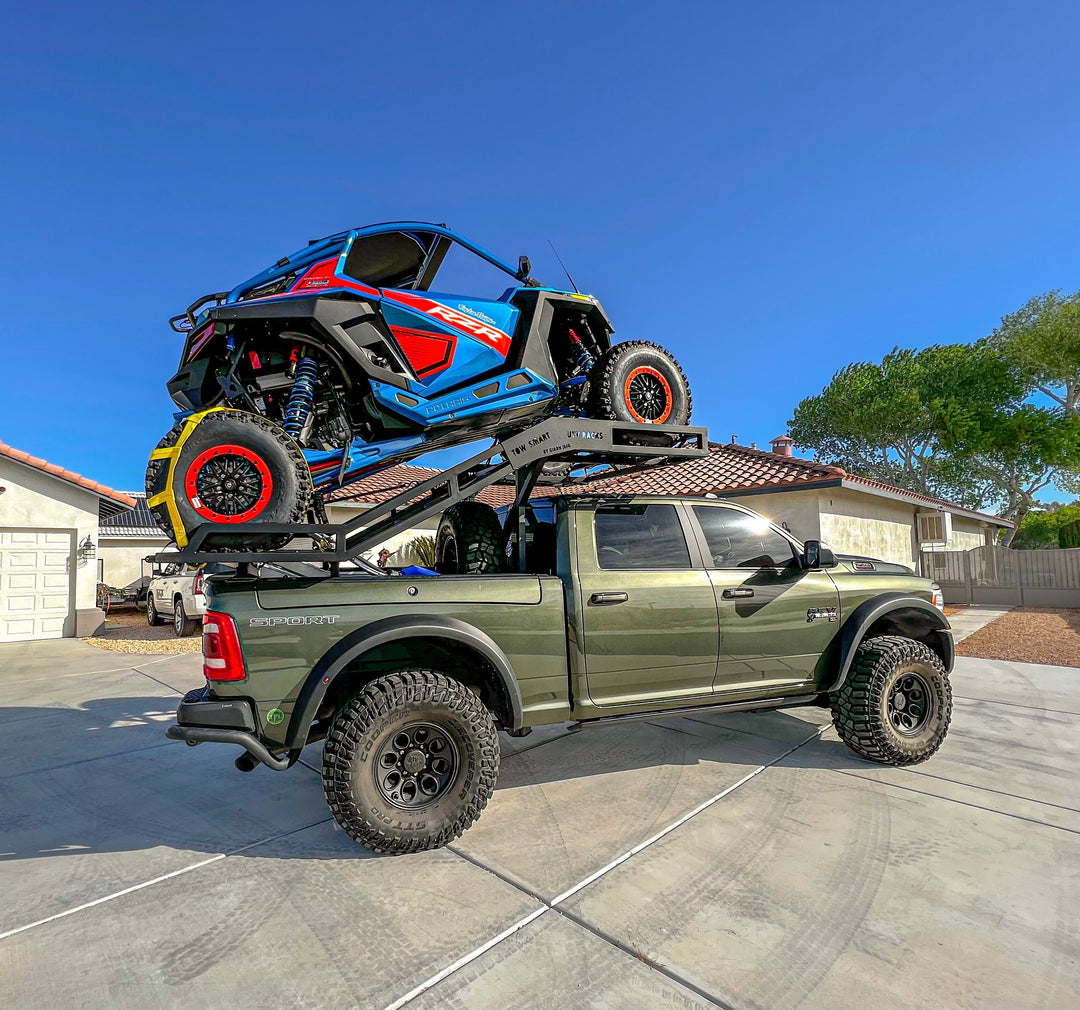

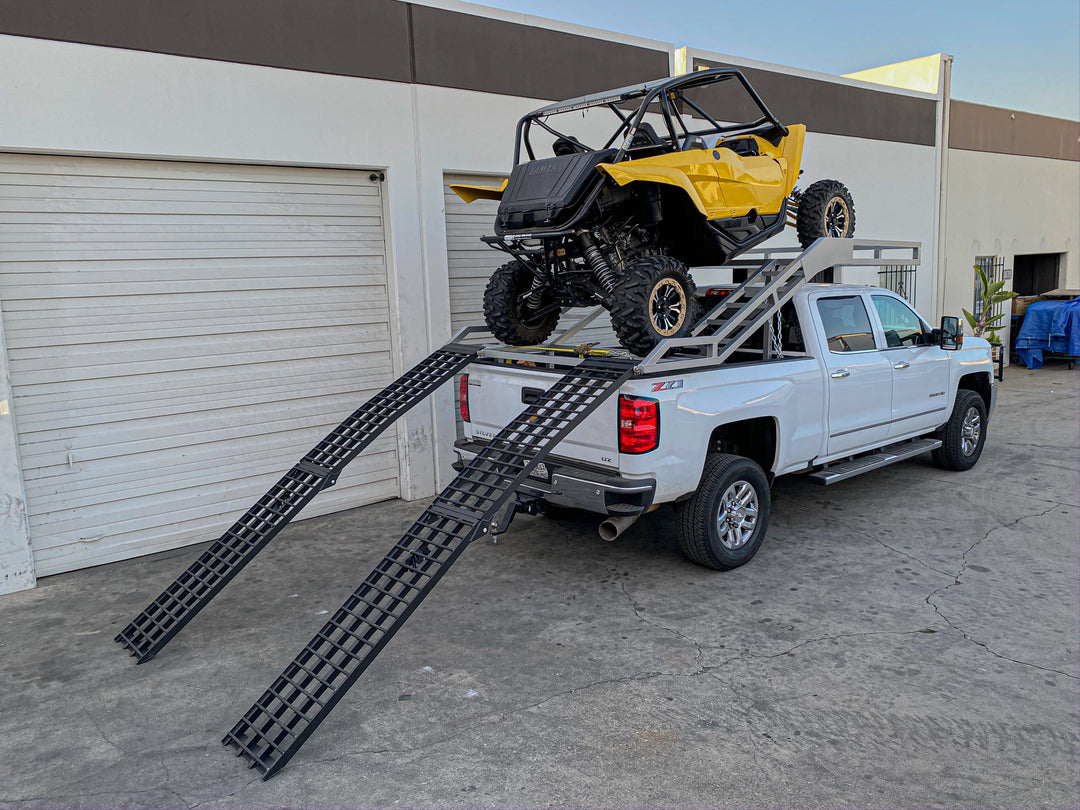

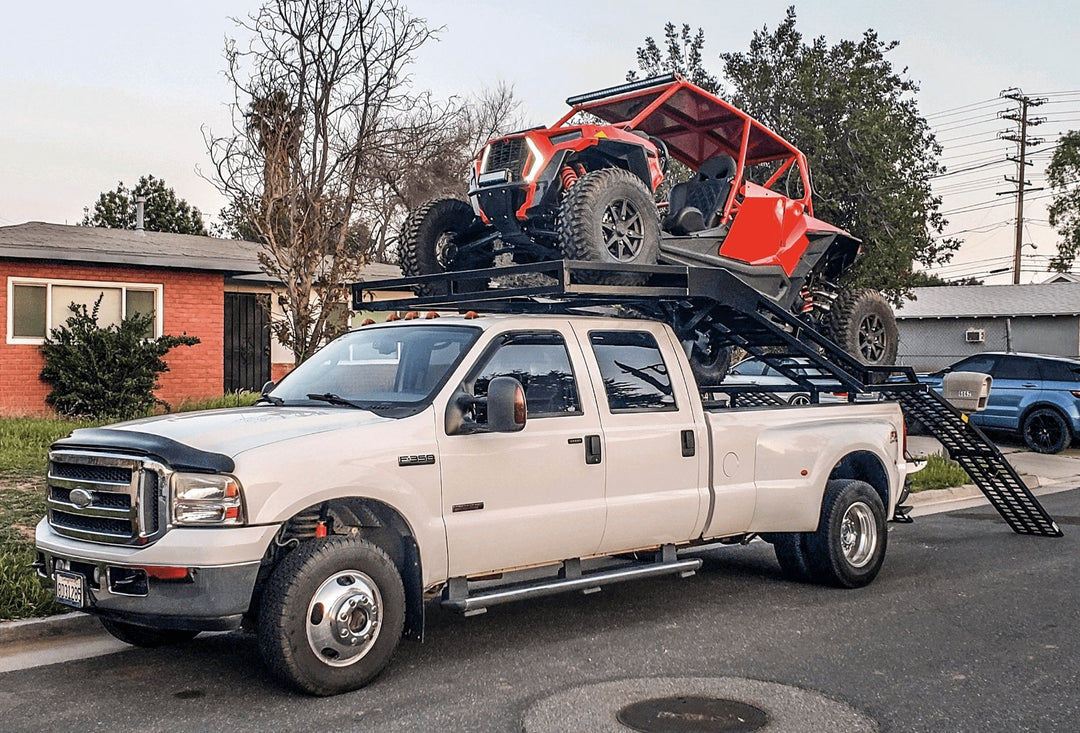

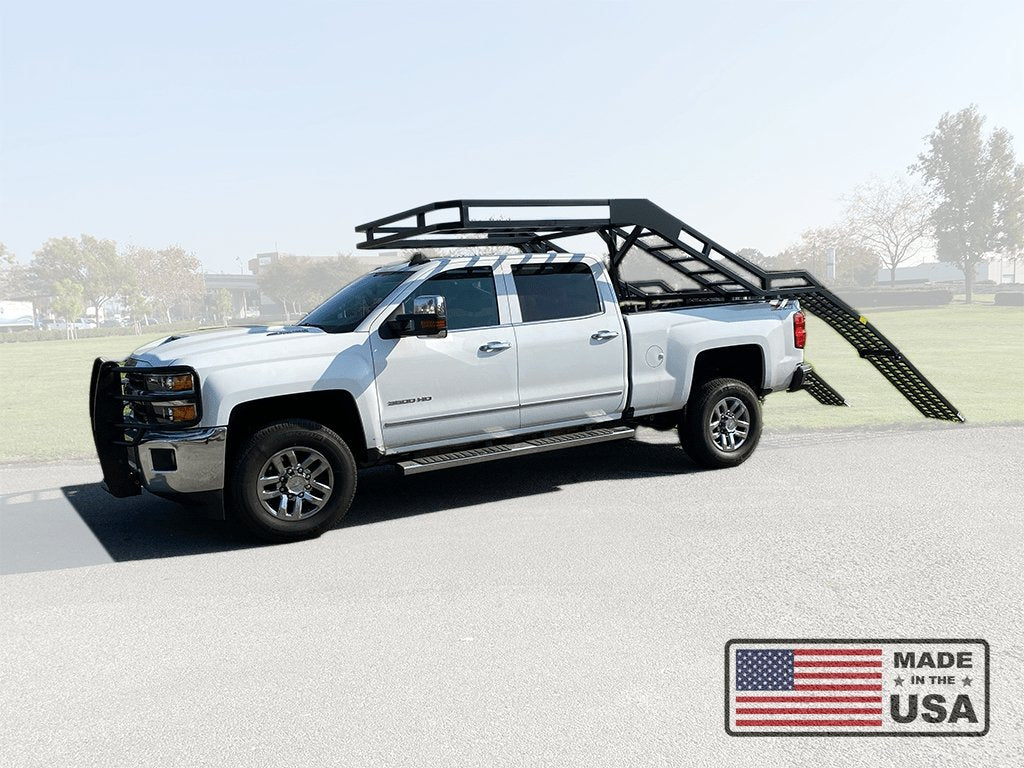

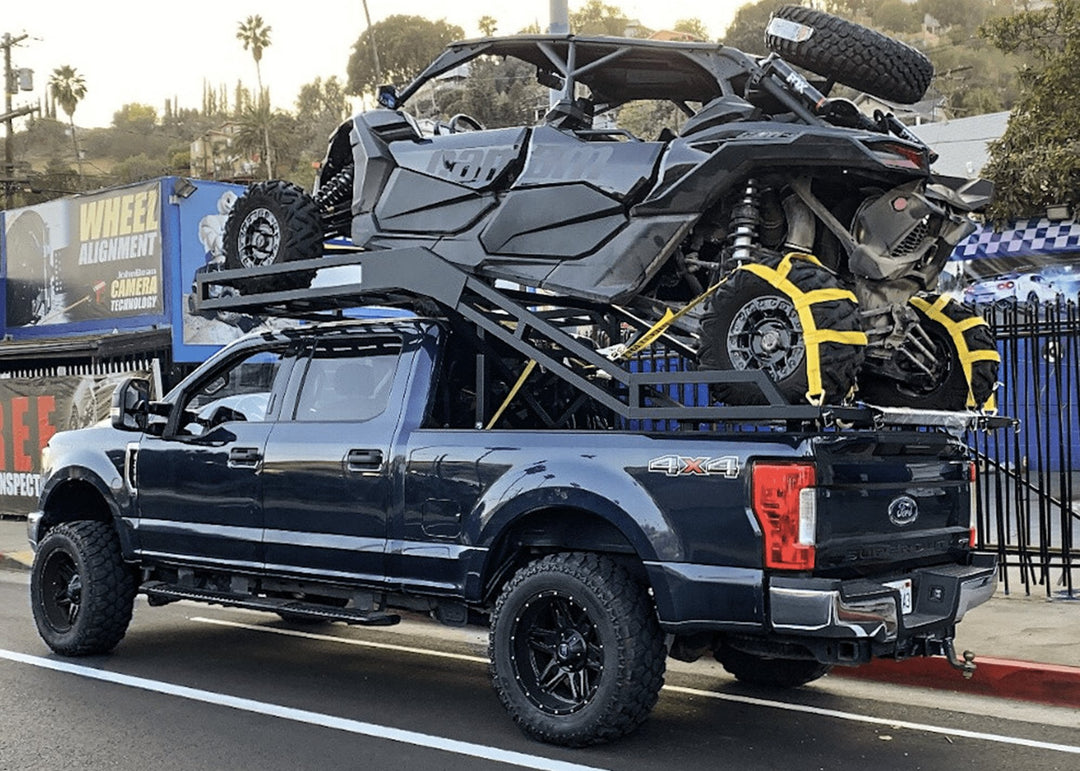

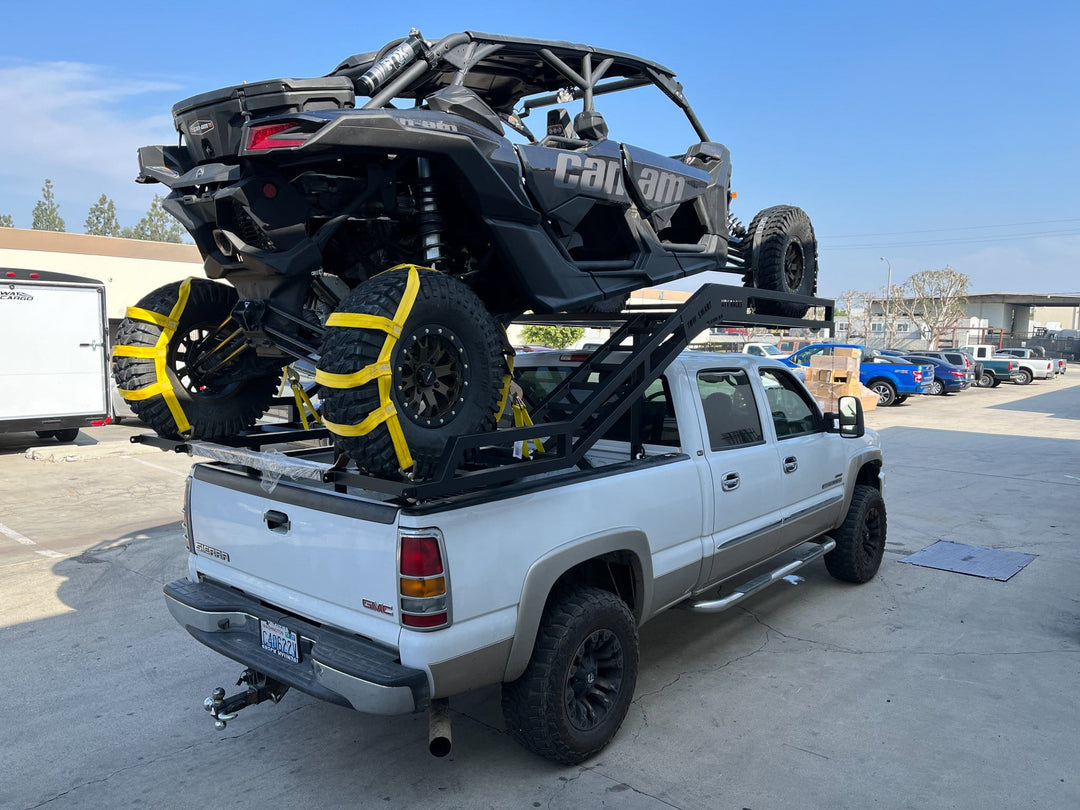

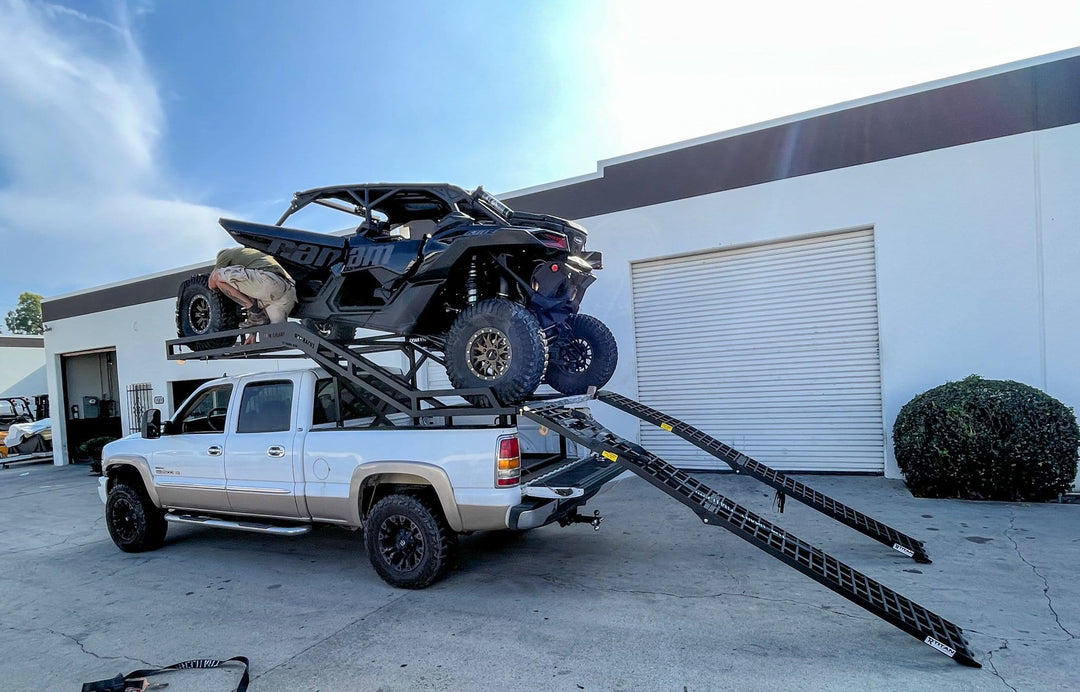

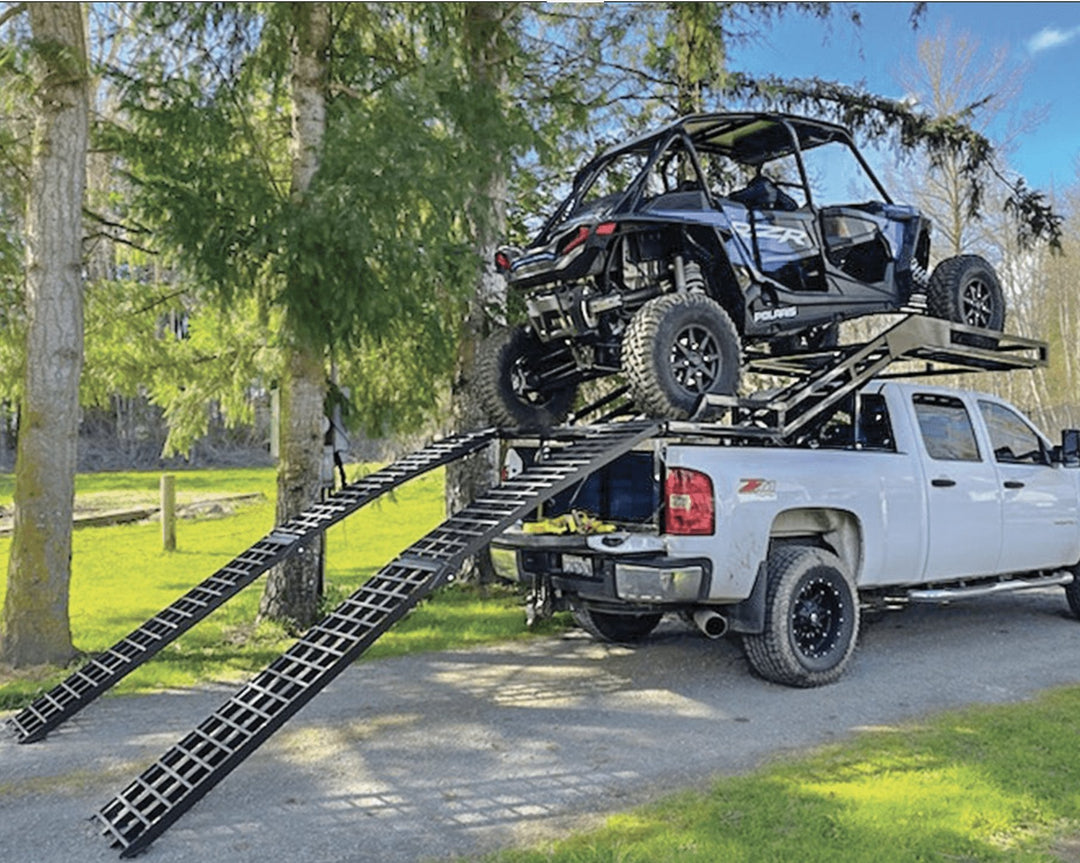

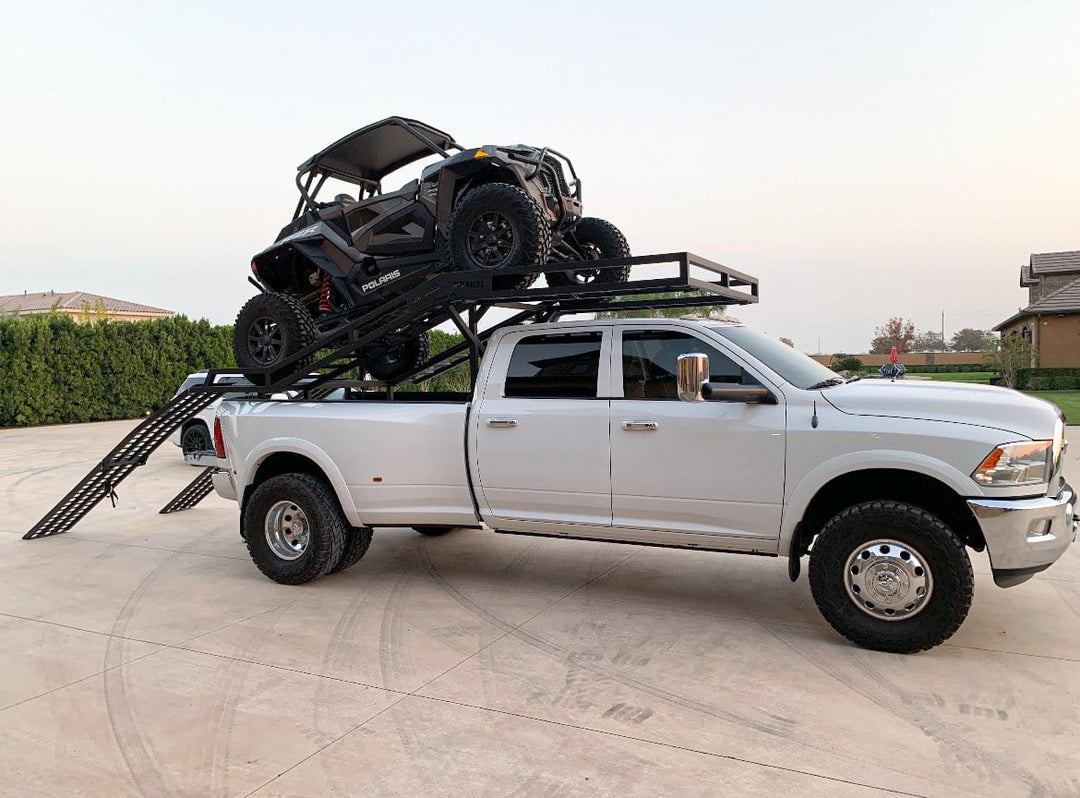

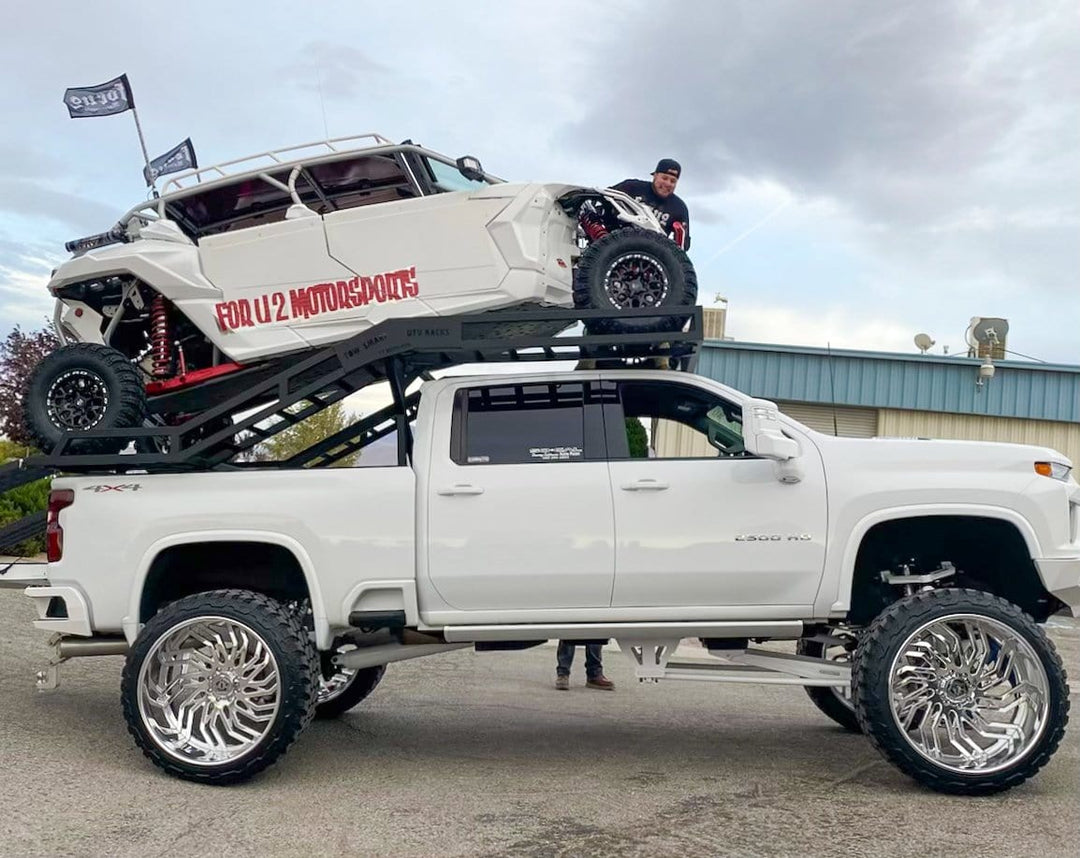

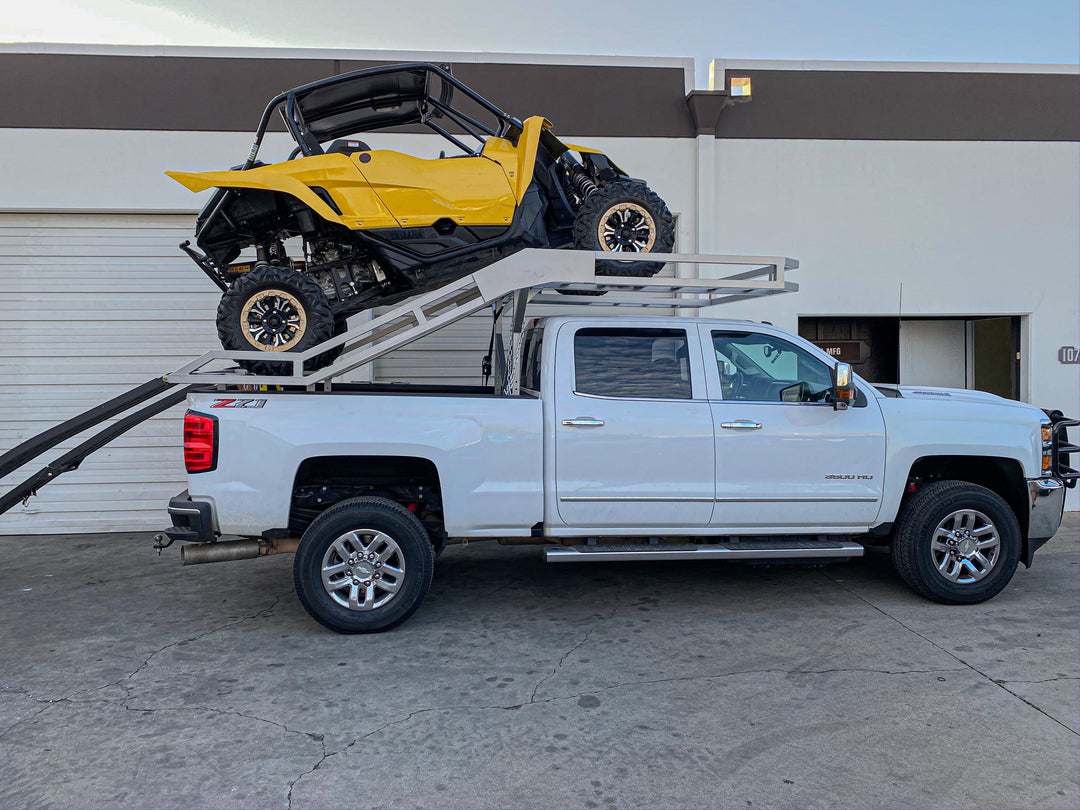

Run a factory 6′–6′8″ bed and still want to bring the SxS and tow the camper? This deck keeps your hitch free while your UTV rides above the rails—clean, stable, and ready to unload fast at camp. Pre-placed front-wheel tie-downs are welded where your tires land, and the included 12.2-foot ramps pin into the rack for a stable approach. Load up, cinch down, and go.

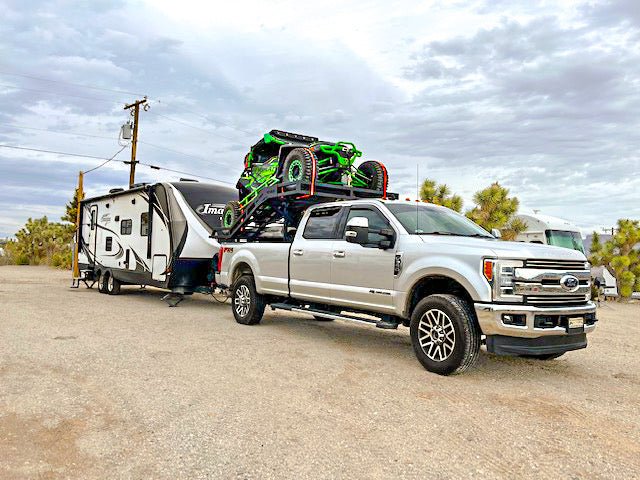

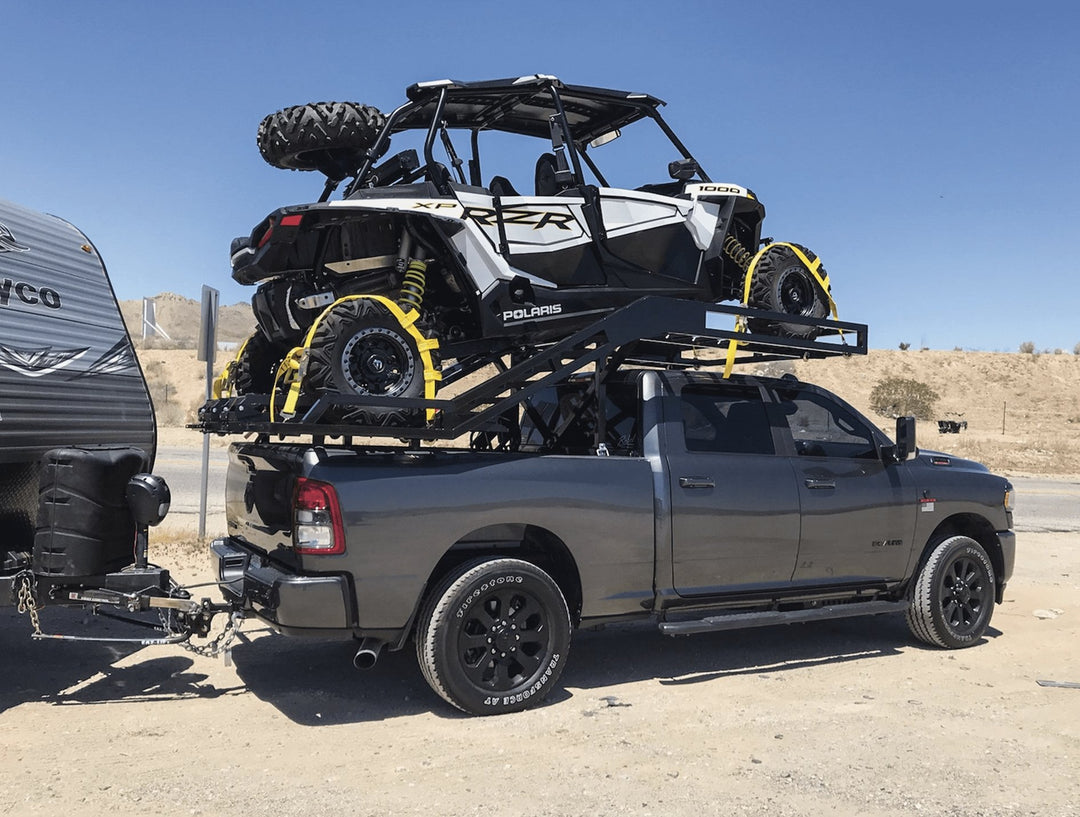

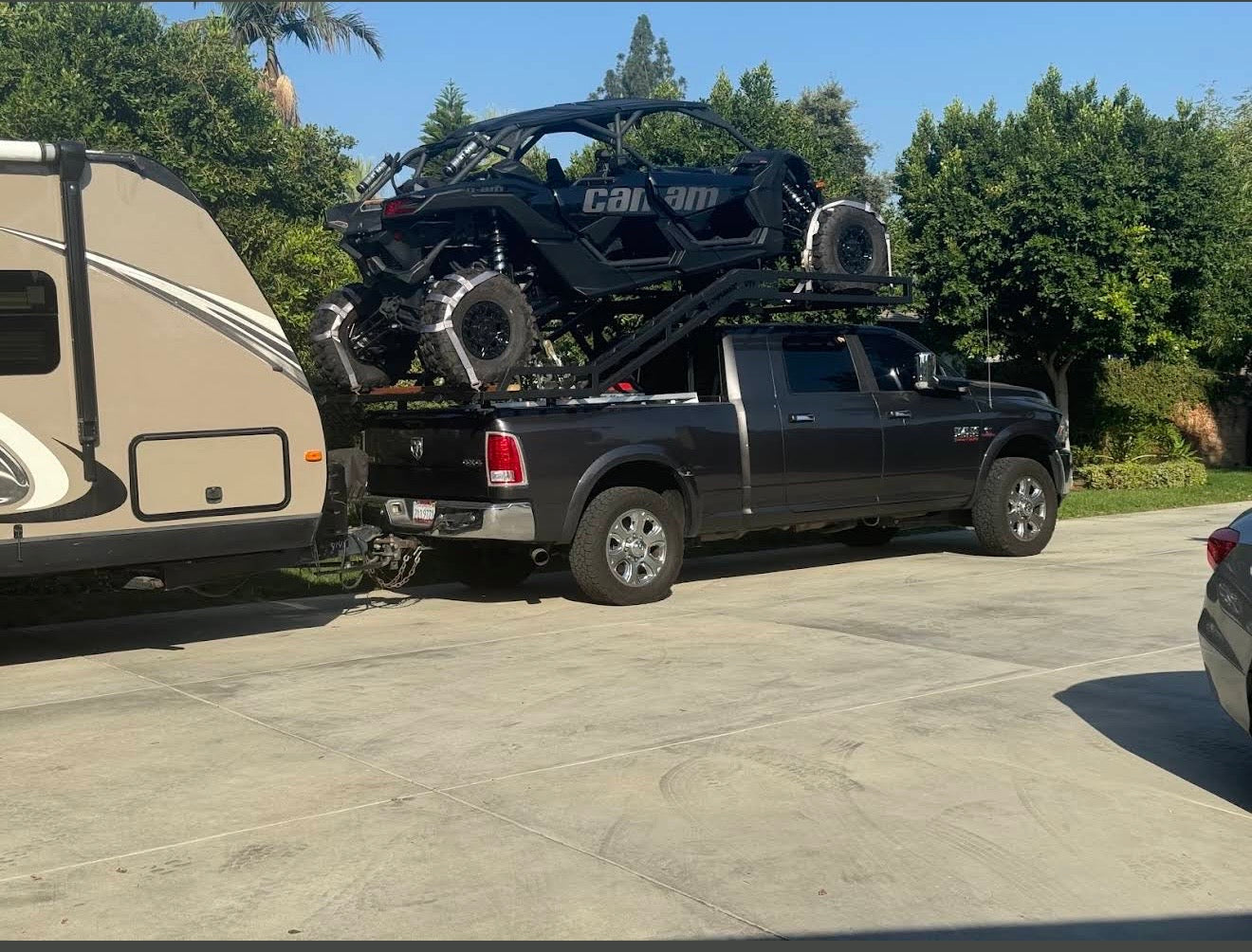

- Keeps hitch free for a bumper-pull camper or boat
- Short-bed fit (6′–6′8″) across half-ton to one-ton trucks • flatbed compatible

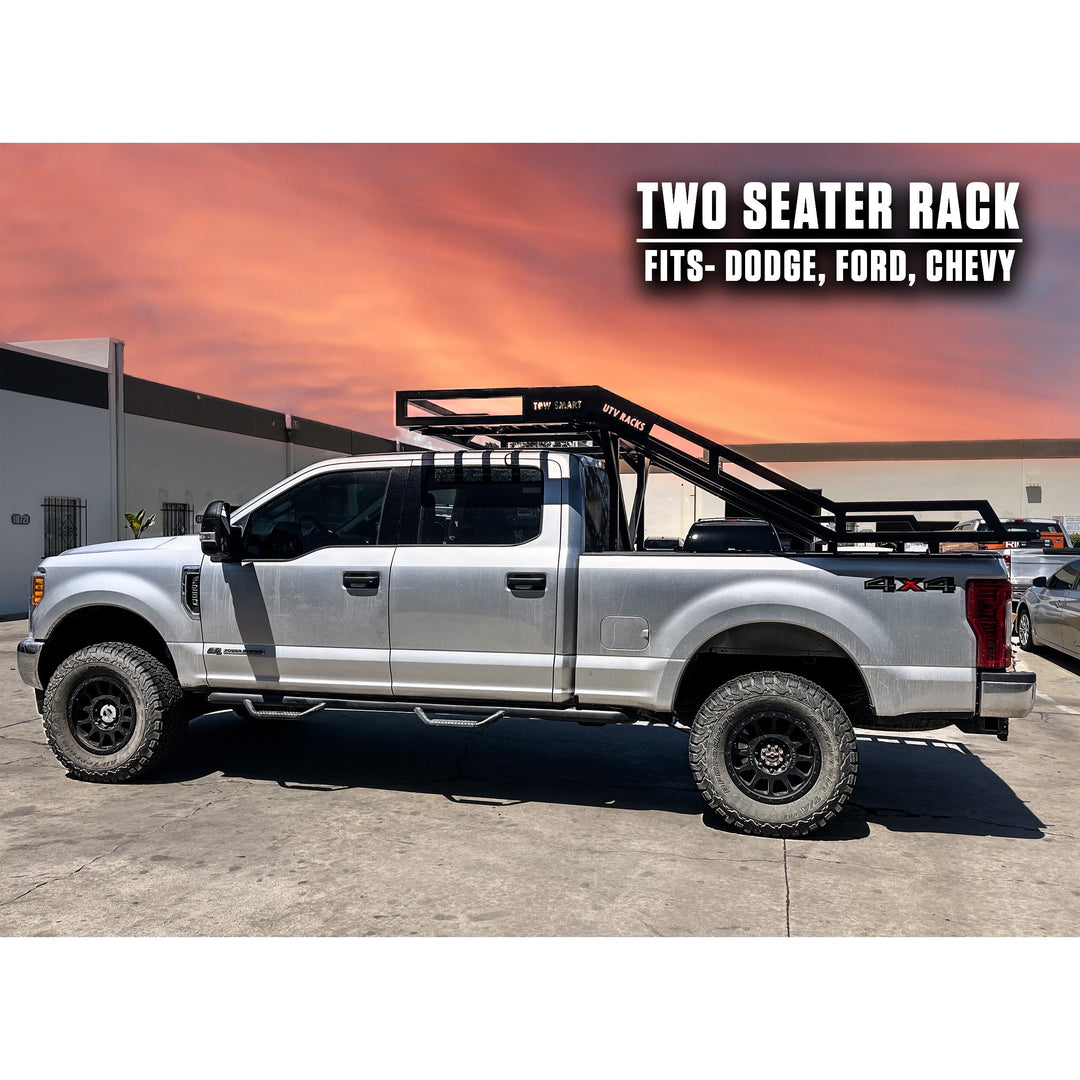

- 76″ (72″ usable) for most 2-seaters • 86″ (82″ usable) for wide 4-seaters
- No-drill install to factory tie-downs • fully welded 2×2 steel construction
- Up to 3,000-lb load capacity • powder-coated for durability
FAQs
- 1) What trucks will this UTV rack fit?
- Designed for factory short beds measuring 6′–6′8″. Works on many 1500/2500/3500 trucks and compatible flatbeds. For long beds, see our Long Bed model.
- 2) What is the payload capacity?
- Rated up to 3,000 lbs combined payload (machine + gear) when installed properly and used within truck payload limits.
- 3) Does the rack require assembly?
- No. The rack ships fully welded. You’ll drill the ramp pin holes to secure the included ramps to the deck.
- 4) How do I install it?

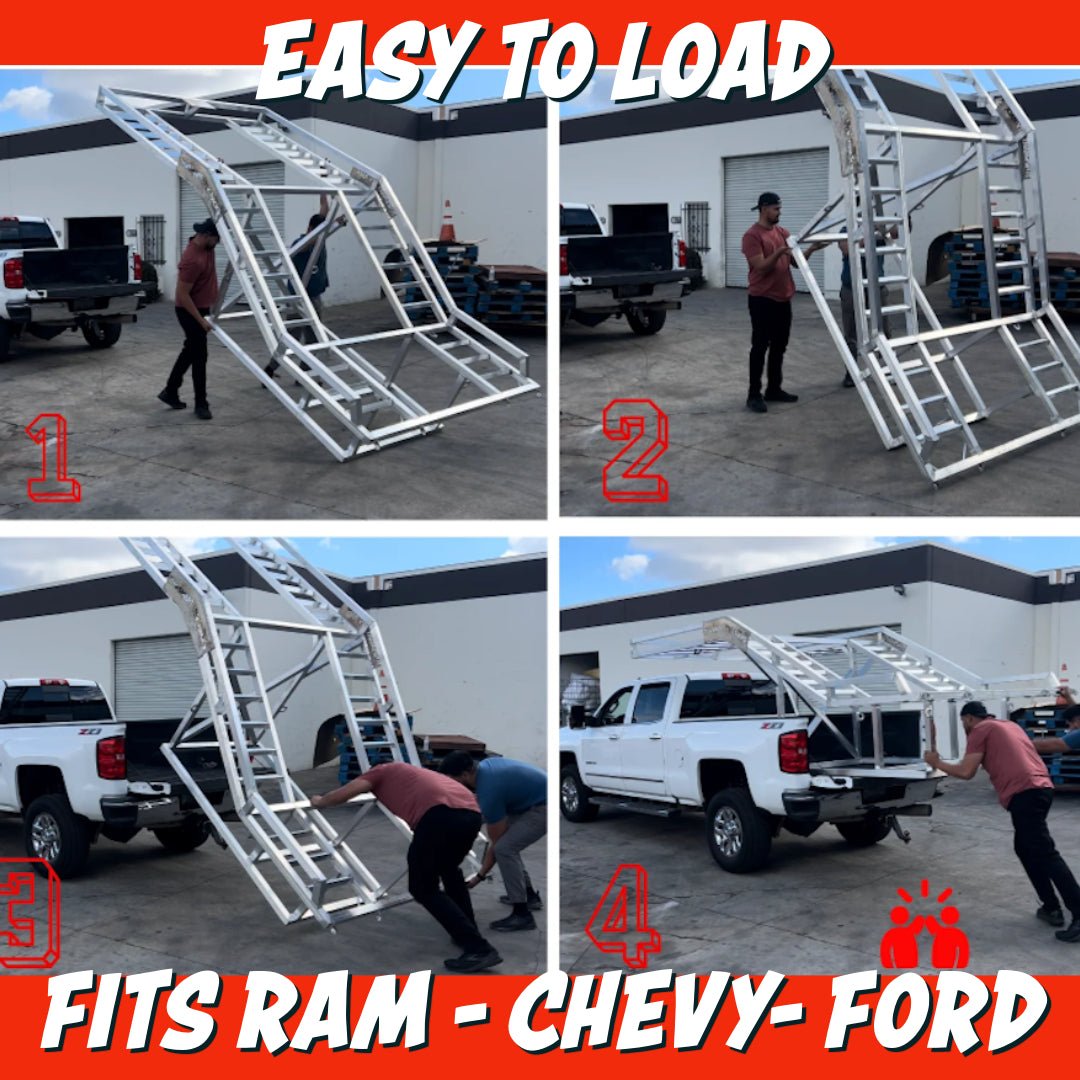

- Place the rack in the bed, attach the supplied turnbuckles to the factory tie-down points, and pin the ramps. No drilling through your bed.
- 5) How long does shipping take?
- Typical window is about 2–3 weeks from order. Freight tracking is provided when your unit ships from California.
- 6) Is there a warranty?
- Yes—1-year manufacturer’s warranty covering defects in materials and workmanship.
- 7) Will this fit a long bed truck?

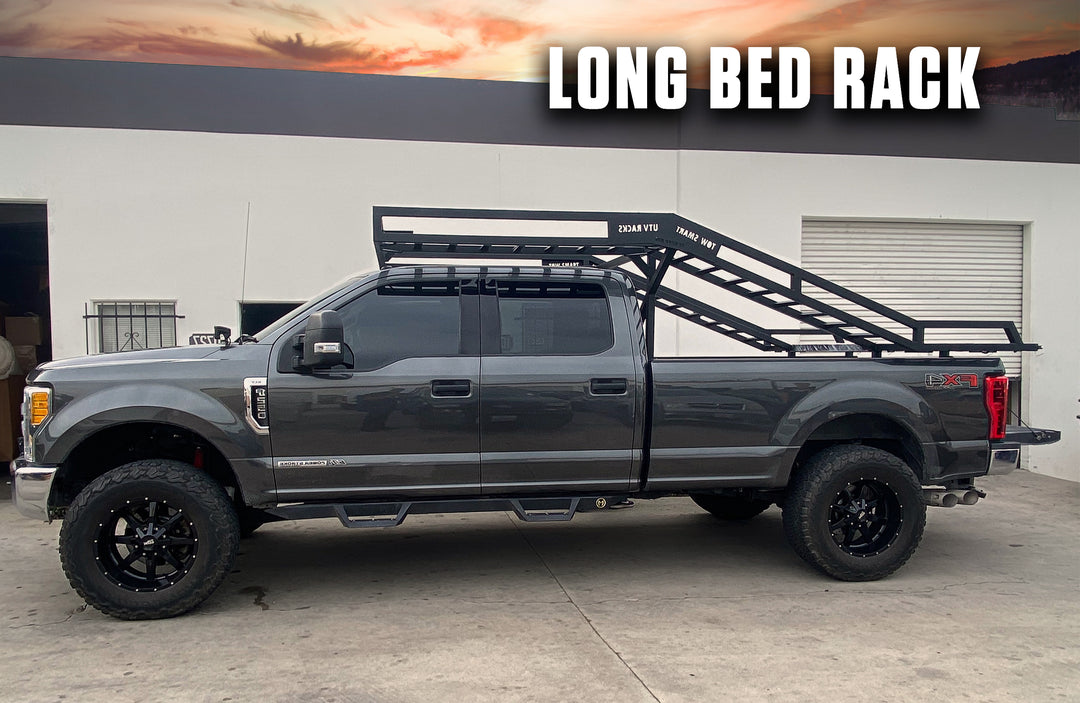

- This model is for short beds only. For 8′ beds, choose the Long Bed UTV Rack.
- 8) Can I use it on a flatbed?
- Yes—flatbed-compatible when dimensions and mounting points match the listed specs.
- 9) How heavy is the rack?
- Approx. ~390 lbs (76″ model) and ~480 lbs (86″ model).
- 10) Do the ramps come included?
- Yes—(2) 12.2-ft, 18″-wide aluminum ramps with pin-in safety are included.
Shipping is calculated At check out Please add to cart and input your Zip Code to get proper shipping Rate.
Don't take our word for it

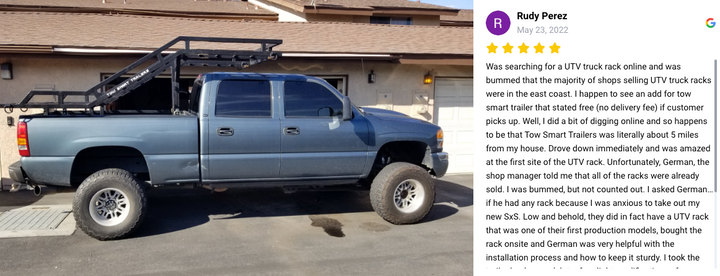

★★★★★Was searching for a UTV truck rack online and was bummed that the majority of shops selling UTV truck racks were in the east coast. I happen to see an add for tow smart trailer that stated free (no delivery fee)
Rudy Perez
Los Angeles, CA
★★★★★Best solution for this who don’t want to go 65 with a trailer or have to worry about parking and driving with an extra 16ft behind you. Takes about the same time to load and unload as a trailer without needing the extra space. Only advice I would give is to confirm your vehicle can carry the additional payload. Otherwise, a no braineR
milaadf
Los Angeles, CA

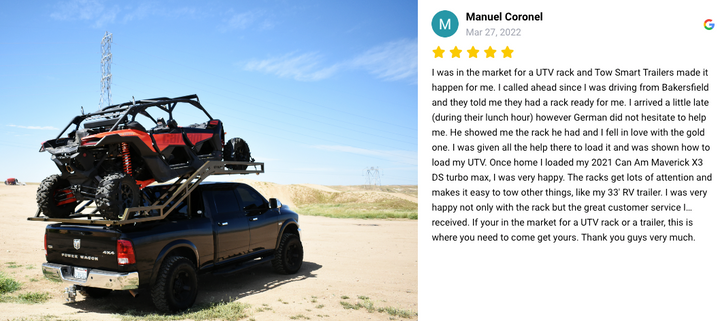

★★★★★I was in the market for a UTV rack and Tow Smart Trailers made it happen for me. I called ahead since I was driving from Bakersfield and they told me they had a rack ready for me. I arrived a little late (during their lunch hour) however German did not hesitate to help me. He showed me the rack he had and I fell in love with the gold one. I was given all the help there to load it and was shown how to load my UTV. Once home I loaded my 2021 Can Am Maverick X3 DS turbo max, I was very happy. The racks get lots of attention and makes it easy to tow other things, like my 33' RV trailer. I was very happy not only with the rack but the great customer service I received. If your in the market for a UTV rack or a trailer, this is where you need to come get yours. Thank you guys very much.
