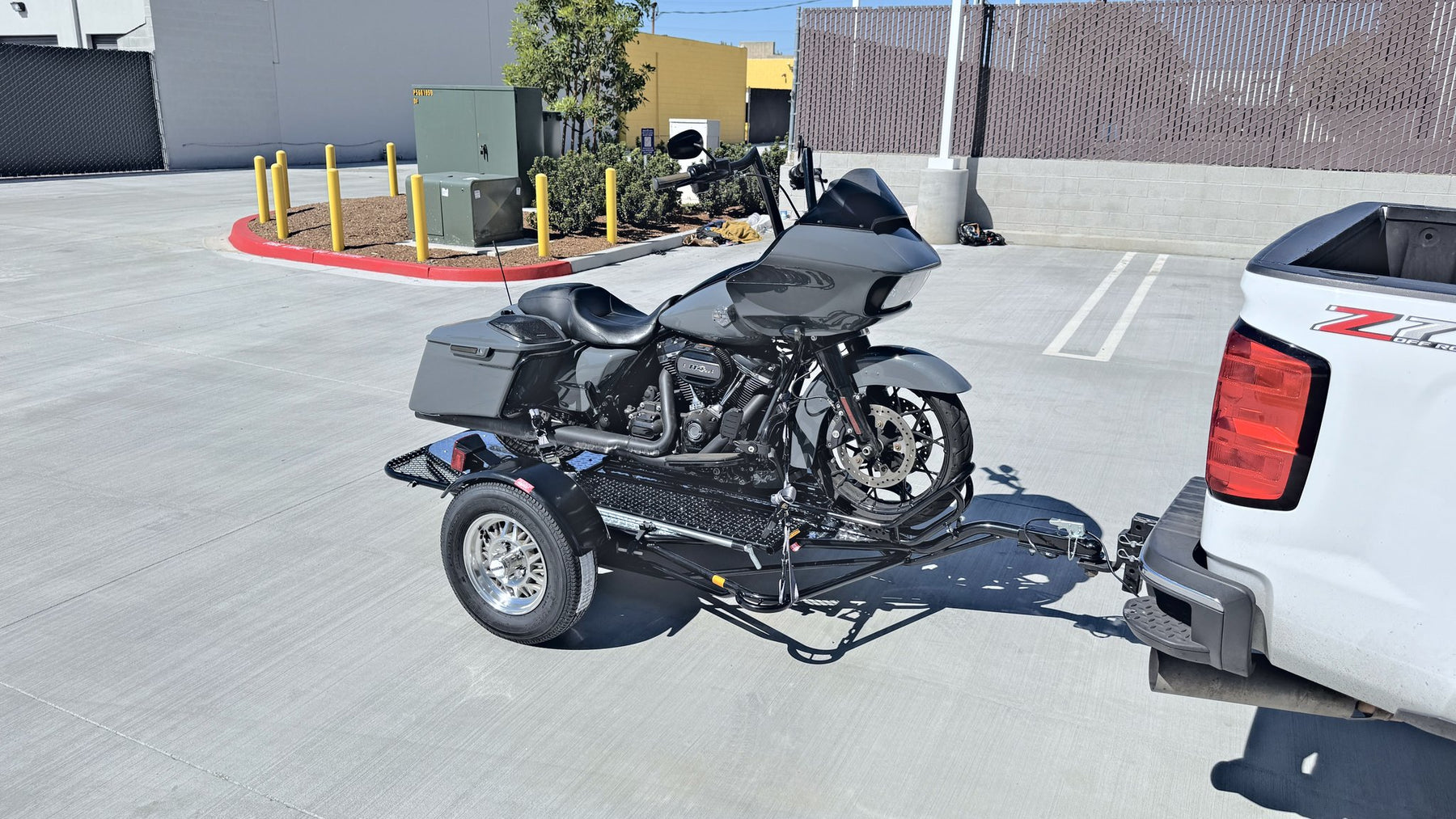

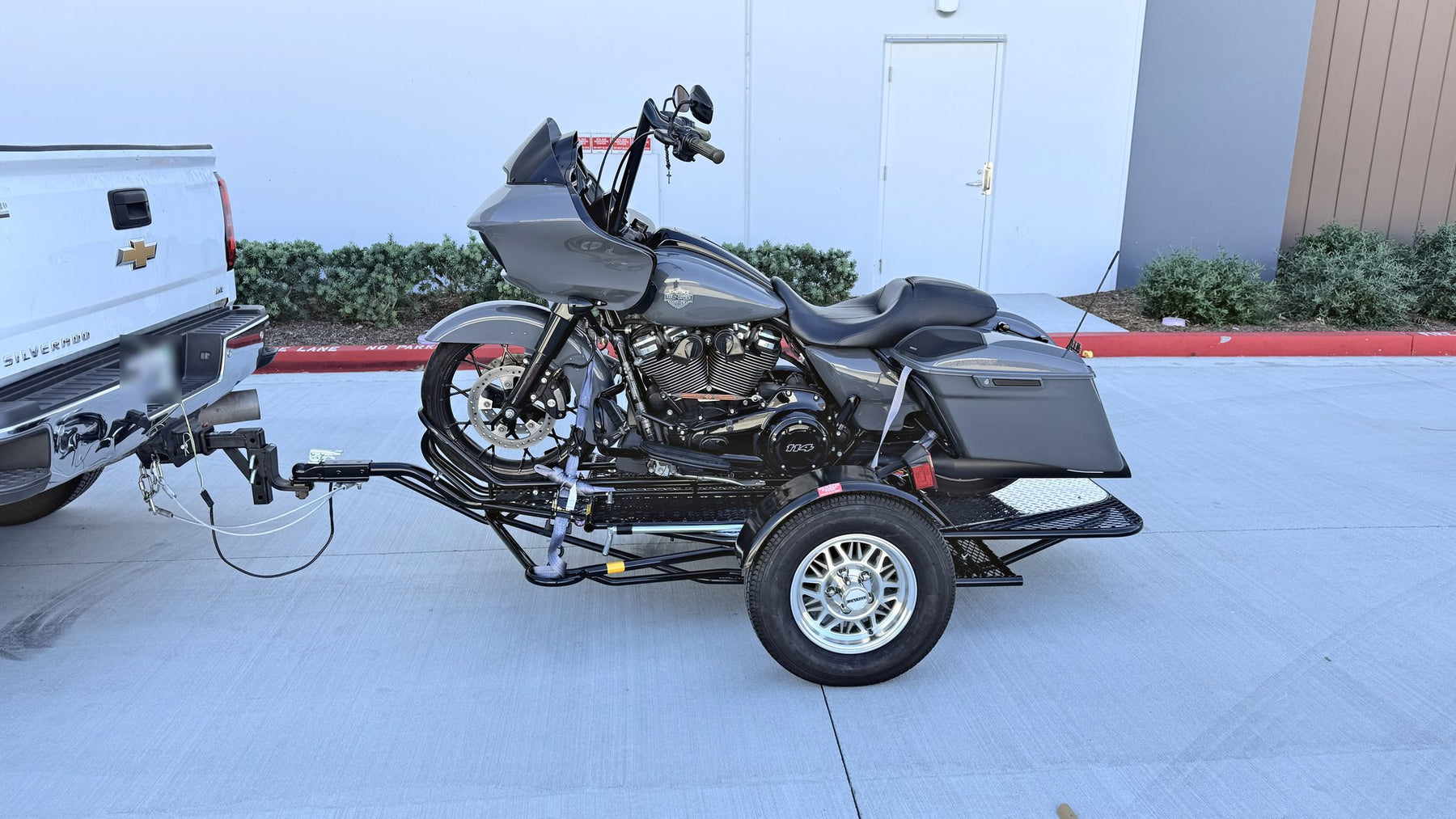

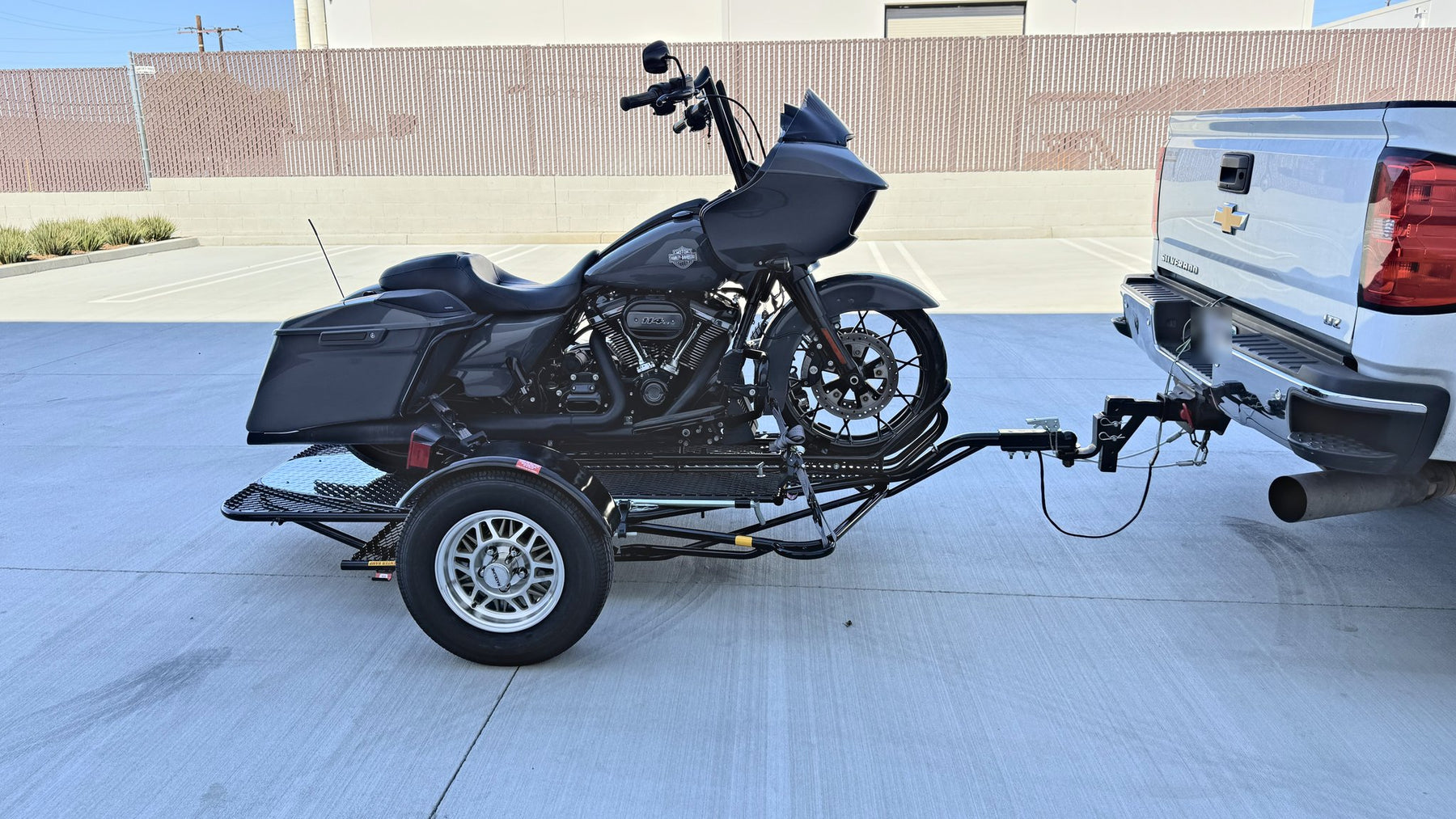

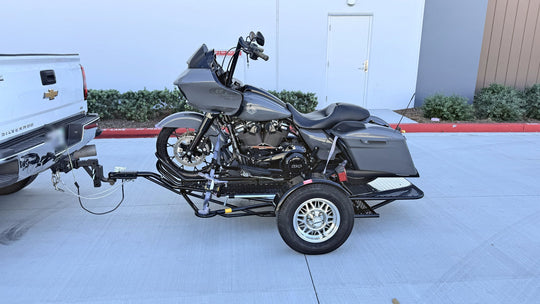

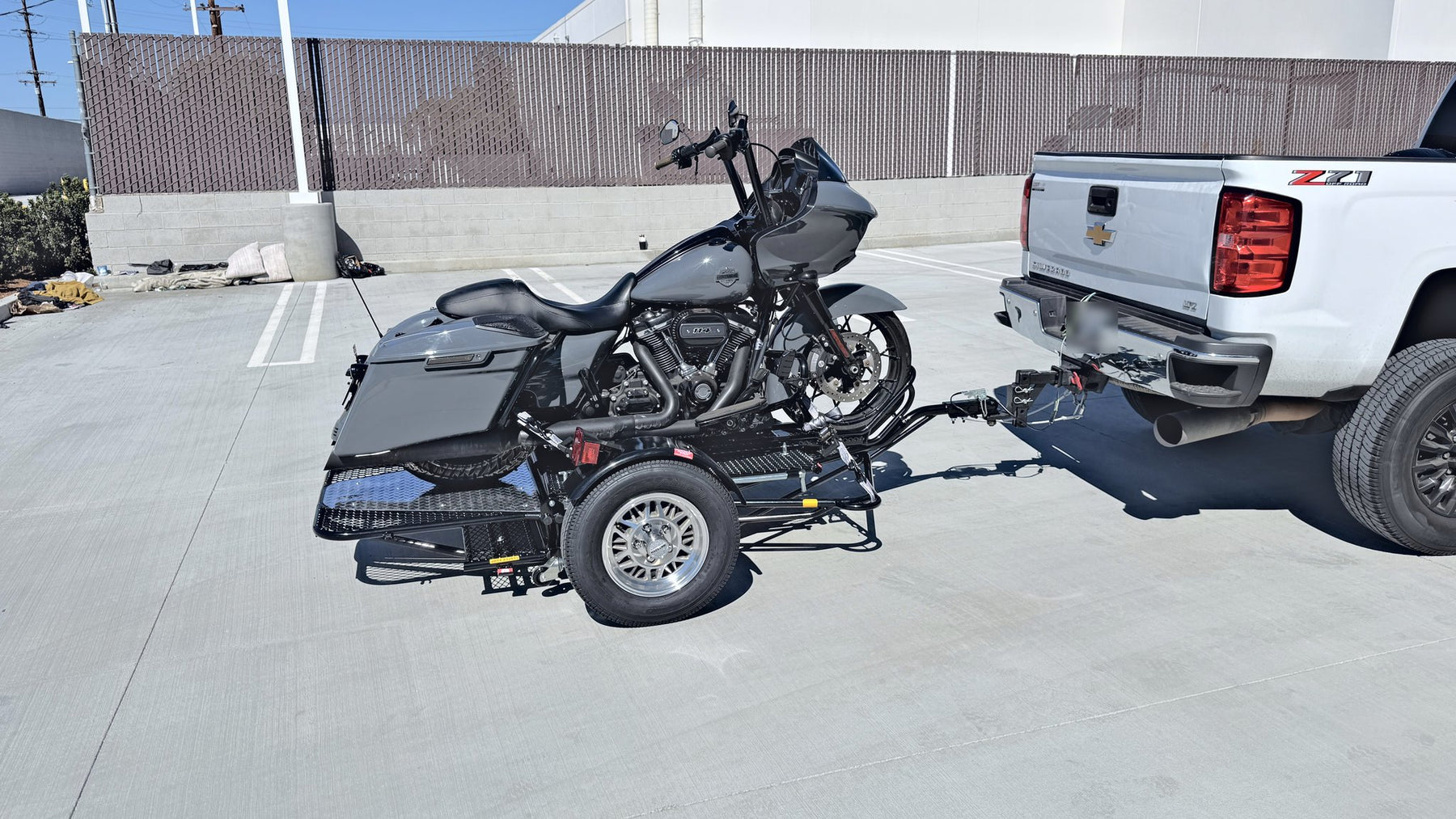

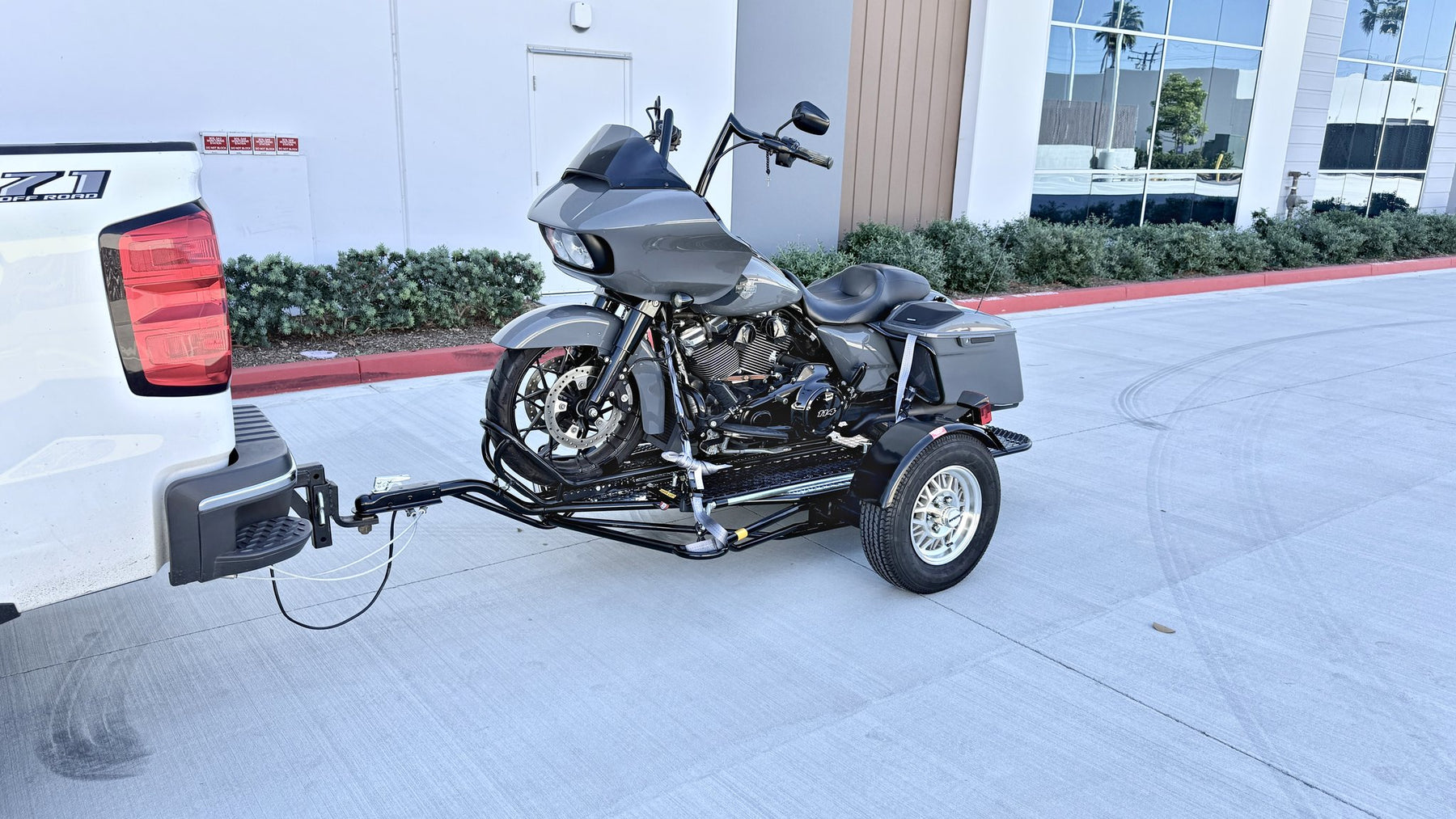

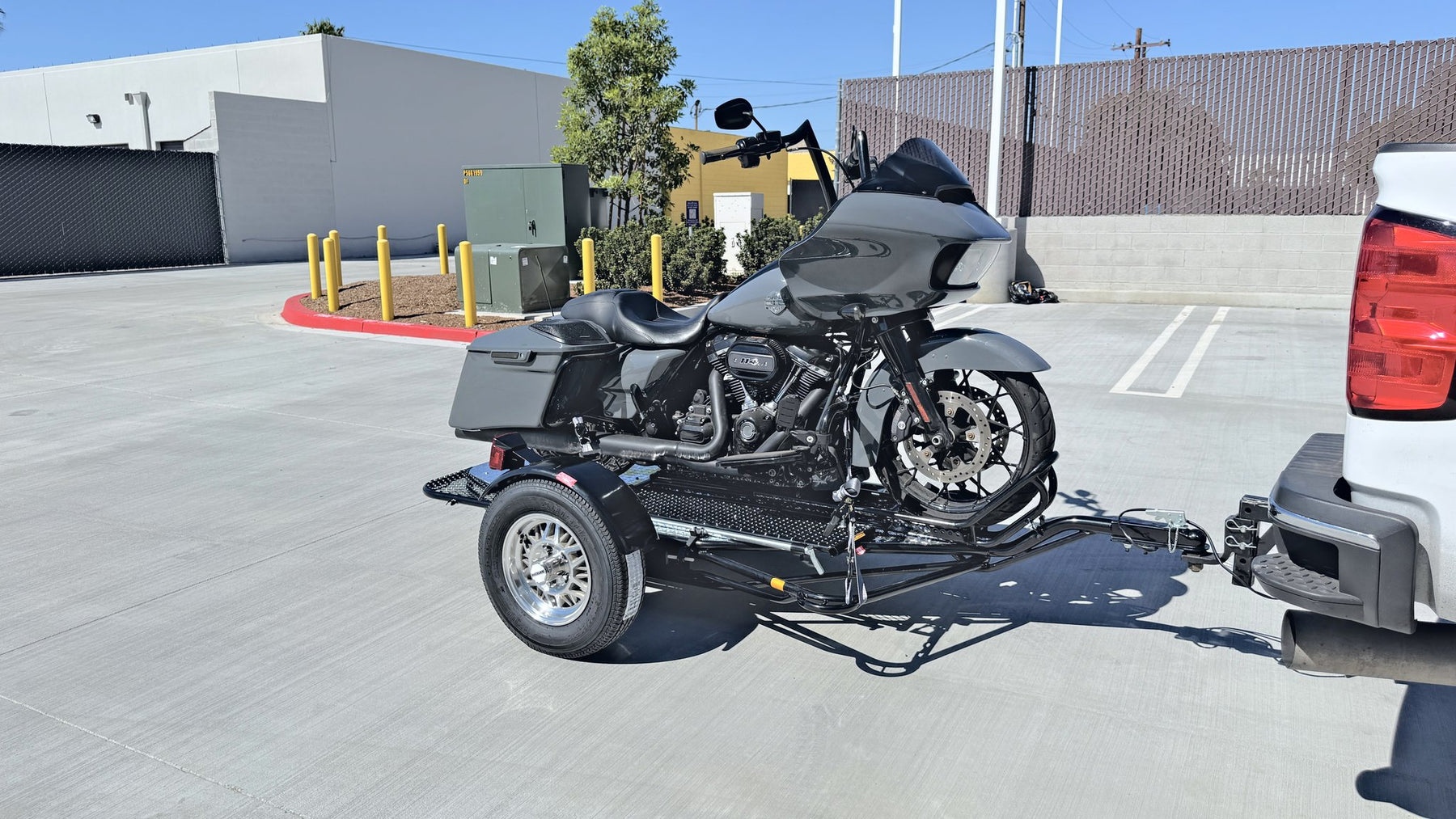

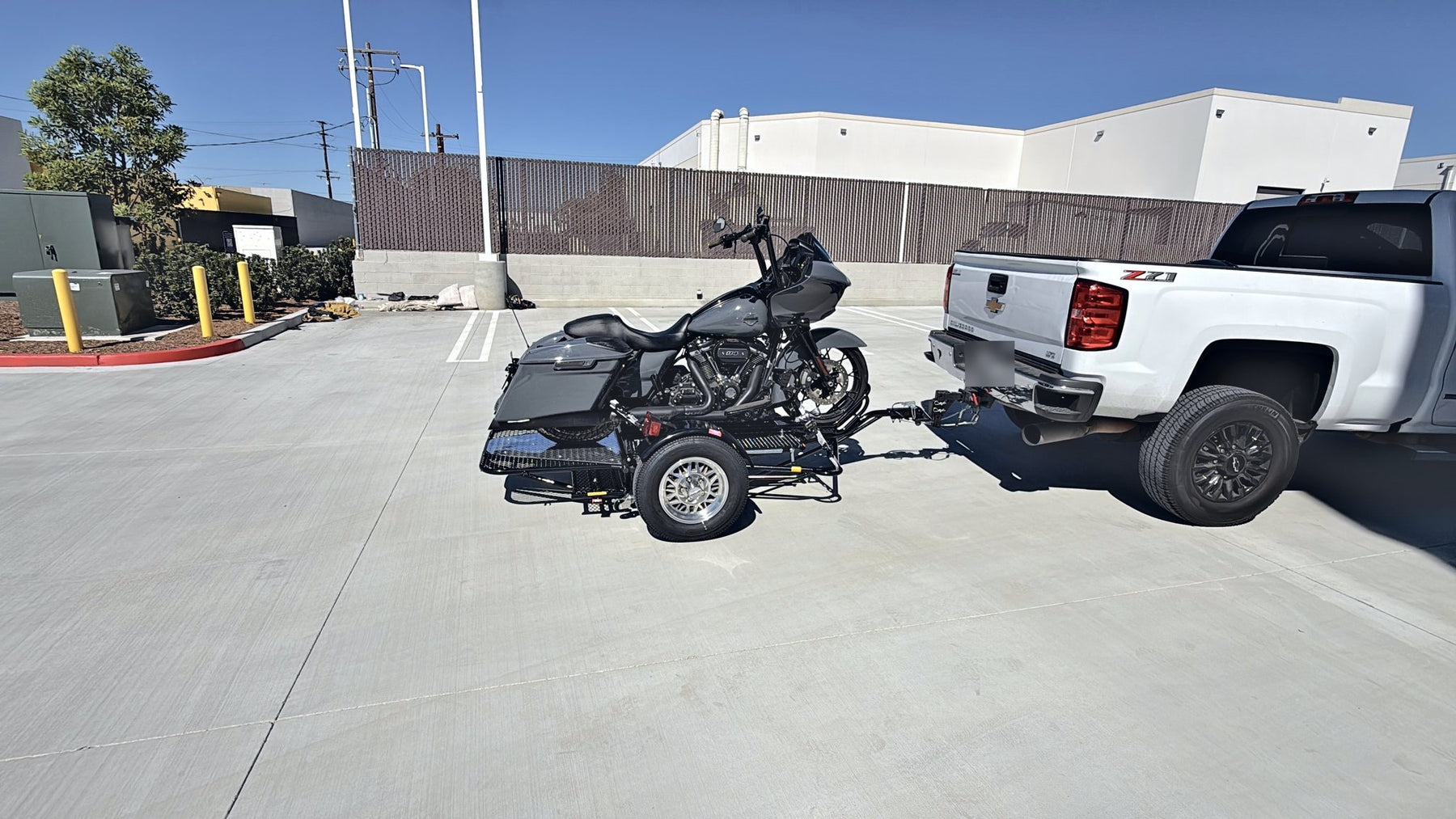

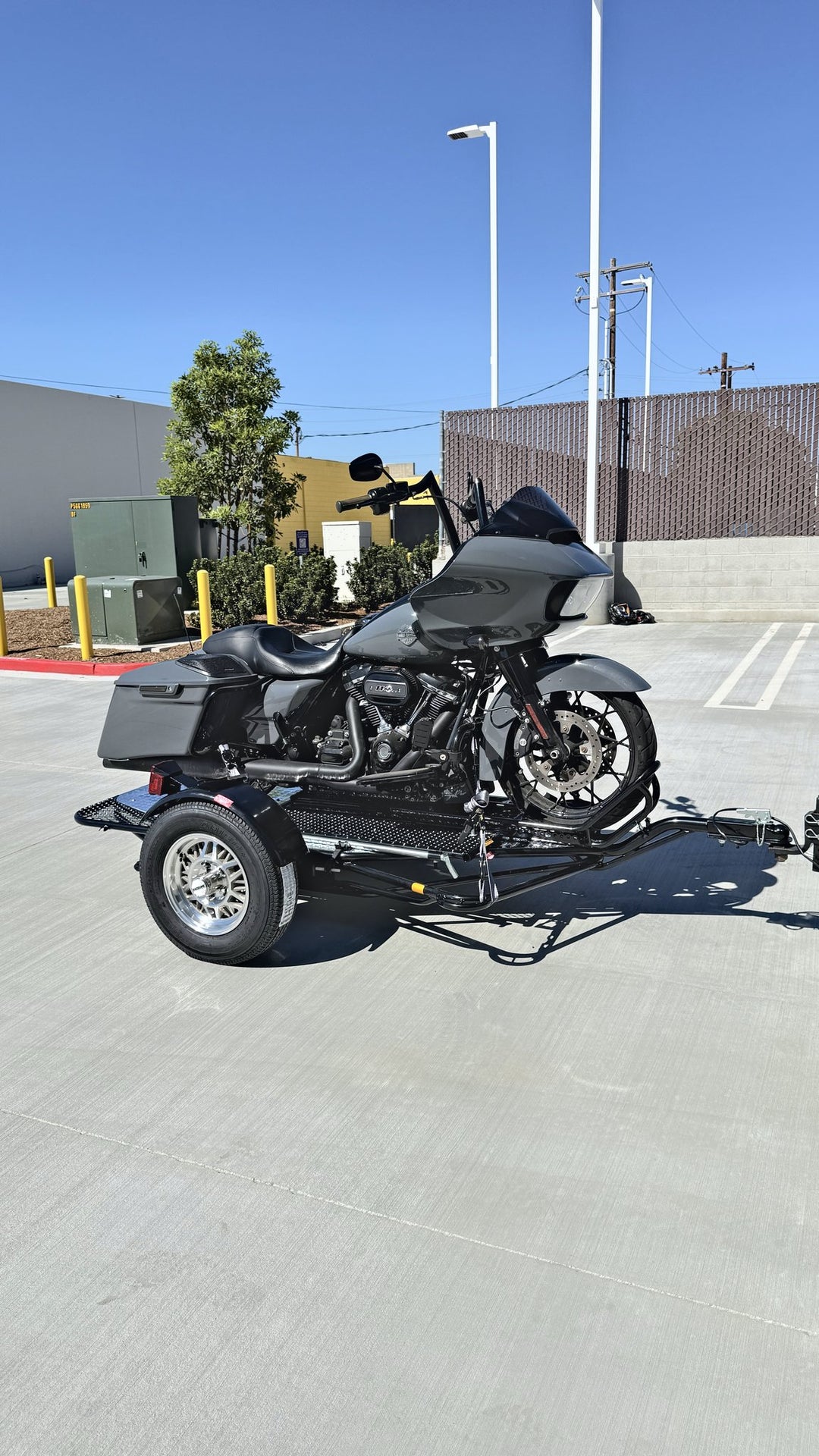

Single Rail Motorcycle TrailerBuilt with Tow Smart Trailers’ powder-coated steel pipe frame, stow-away ramps, and folding deck, our Single Rail Motorcycle Trailer features all the durability and flexibility you need to stay safe as a single rider on the move. This motorcycle trailer stands out from the competition with its three sturdy side-by-side ramps, smart suspension, and small, lightweight storage configuration. The modular ramps ensure safe, easy one-person loading. These ramps can be combined to create a single loading ramp to safely handle any tire width or vehicle weight.
Folding Tailgate and Full Ride Up Ramps Included

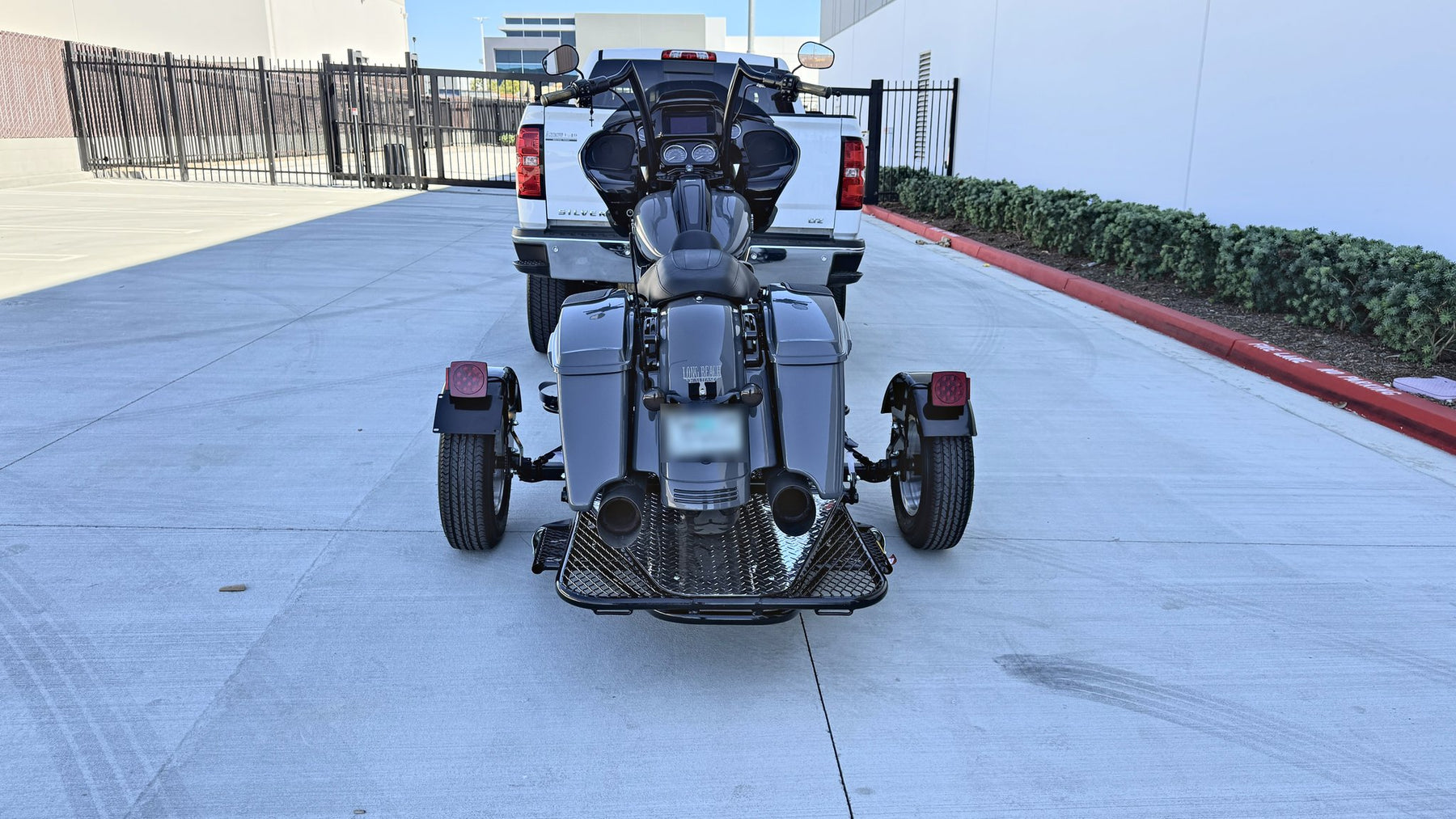

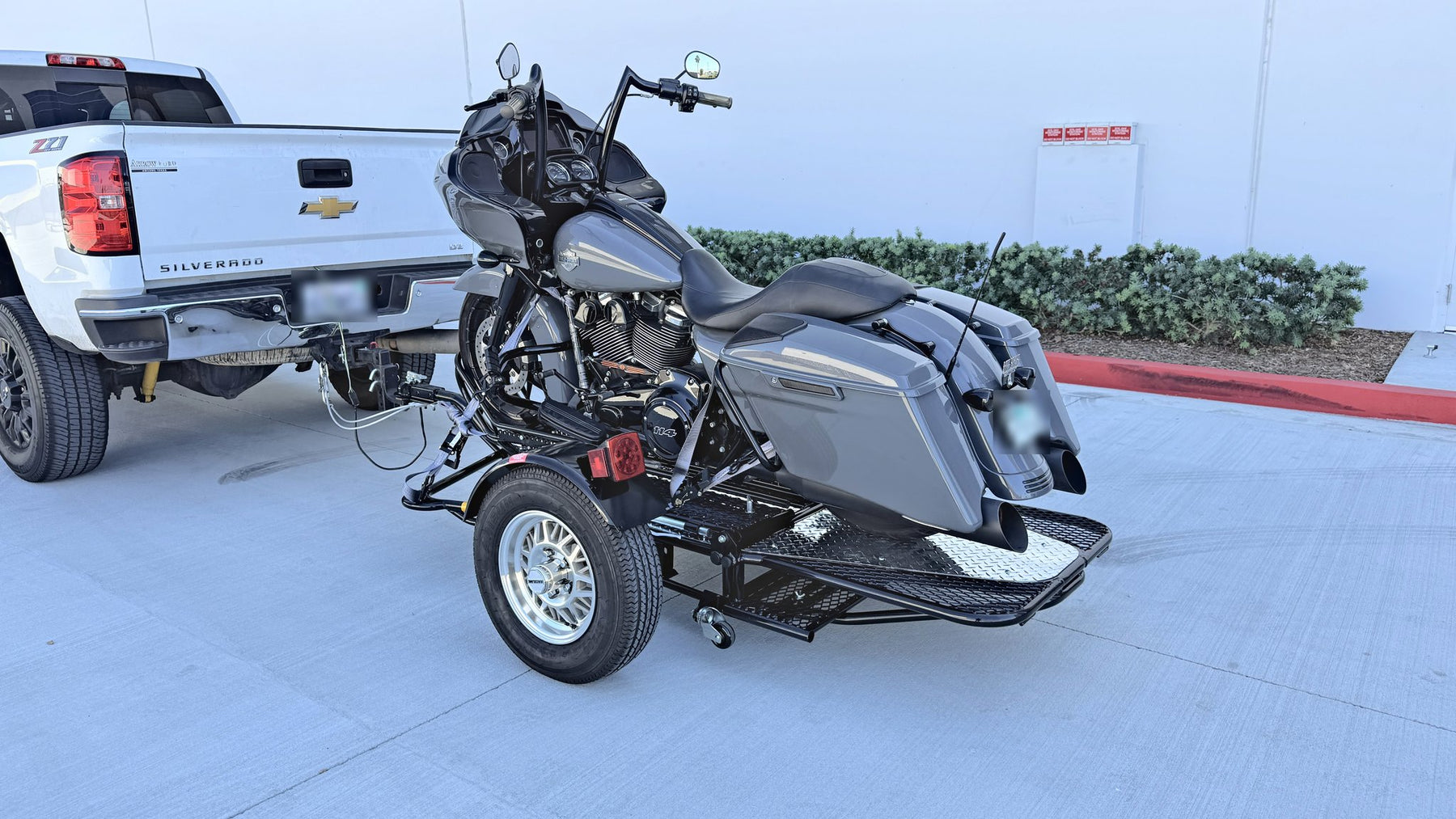

Not only is the loading ramp on this ride-up trailer wide, but it is is also long, ensuring a low angle of approach and safer loading. Moreover, during loading, the suspension compresses to reduce the apex (leveling the deck) which makes loading and unloading a safer one-person process. The stow-away ramps and flat-folding tailgate promise both ease-of-use and easy storage; this motorcycle trailer quickly and easily reduces to a small storage footprint. The tailgate and ramp are constructed of high-strength steel mesh, high-strength steel tubing, and diamond tread plate so they are durable enough to support even large motorcycles and cruisers during loading. Yet both are also lightweight, ensuring that the trailer is easy for one person to set up and break down and (when not in use) fold and store. The wide channel rail takes the versatility of this motorcycle trailer (which also easily functions as a dirt bike trailer and a cruiser trailer) one step further. Because it can accommodate both smaller tires and extra-wide tires, this motorcycle trailer is fully capable of transporting Goldwing motorcycles, Harley-Davidson, cruisers, sportbikes, and more*. Once loaded, this smart trailer keeps your bike secure with its integrated wheel chock. With a Tow Smart Single Rail Motorcycle Trailer, you will never have to ask for help loading/unloading your motorcycle, dirt bike, or cruiser again.
Fully Loaded with Premium Mag Wheels!

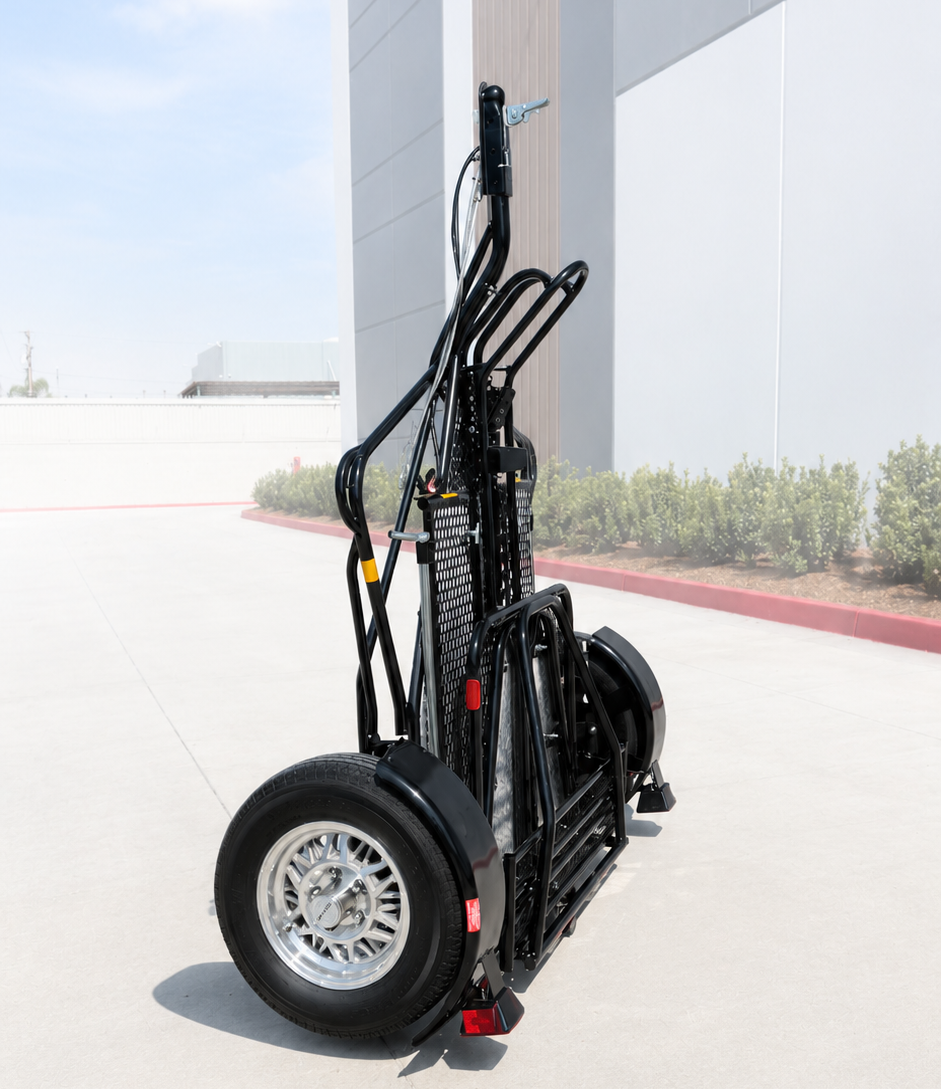

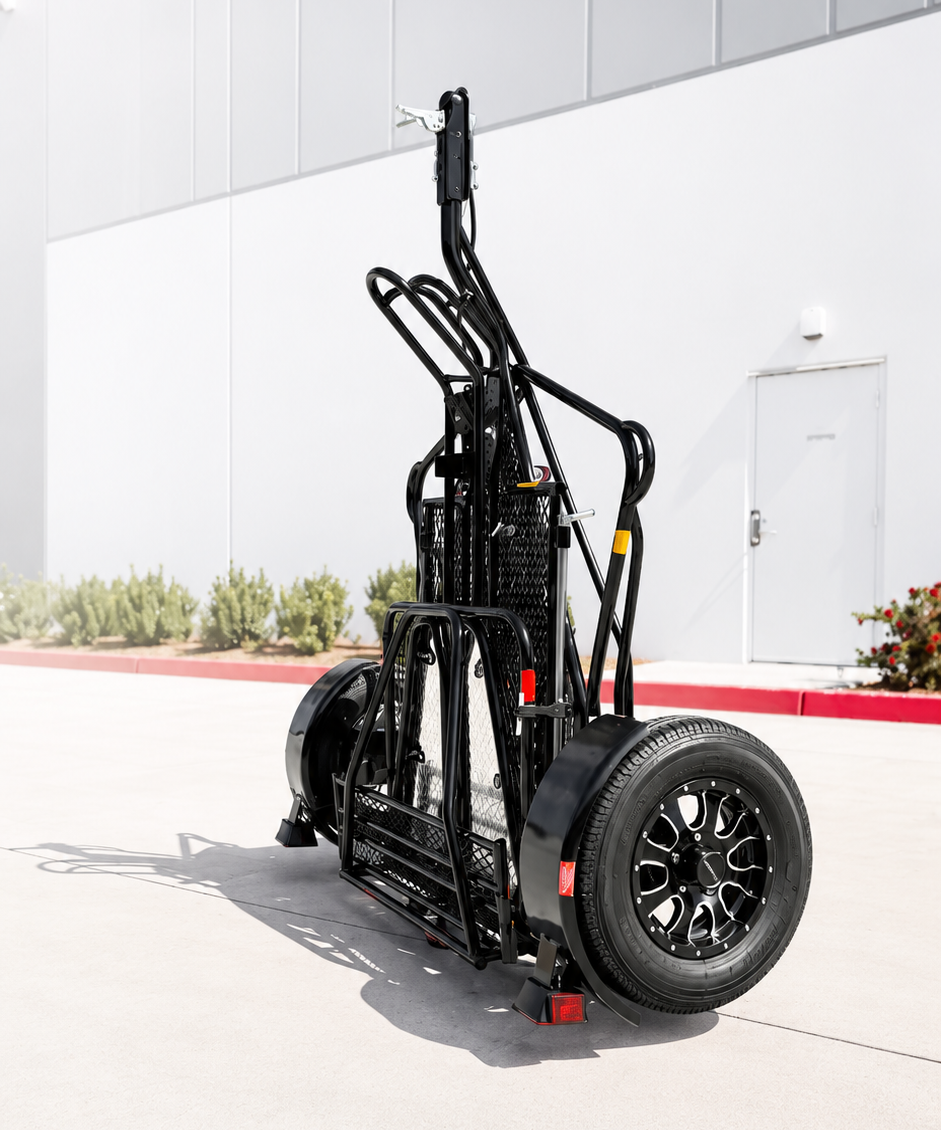

Features● Foldable tailgate for space-saving design and smaller-than-average storage
footprint - reduces in length from 105’’ to 83’’
● Wide channel rail accommodates a vast range of tire sizes.
● Three-piece 42.5” long ride-up loading ramp ensures a low angle of approach
and easier alignment than thinner, shorter ramps (or using wooden boards), promising safe, easy one-person loading for even wide and heavy bikes.
● Integrated wheel chock makes loading, unloading, and tying off a cinch.
● Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over weight.
● Diamond tread plate deck prevents slipping, even in wet and low-visibility conditions.

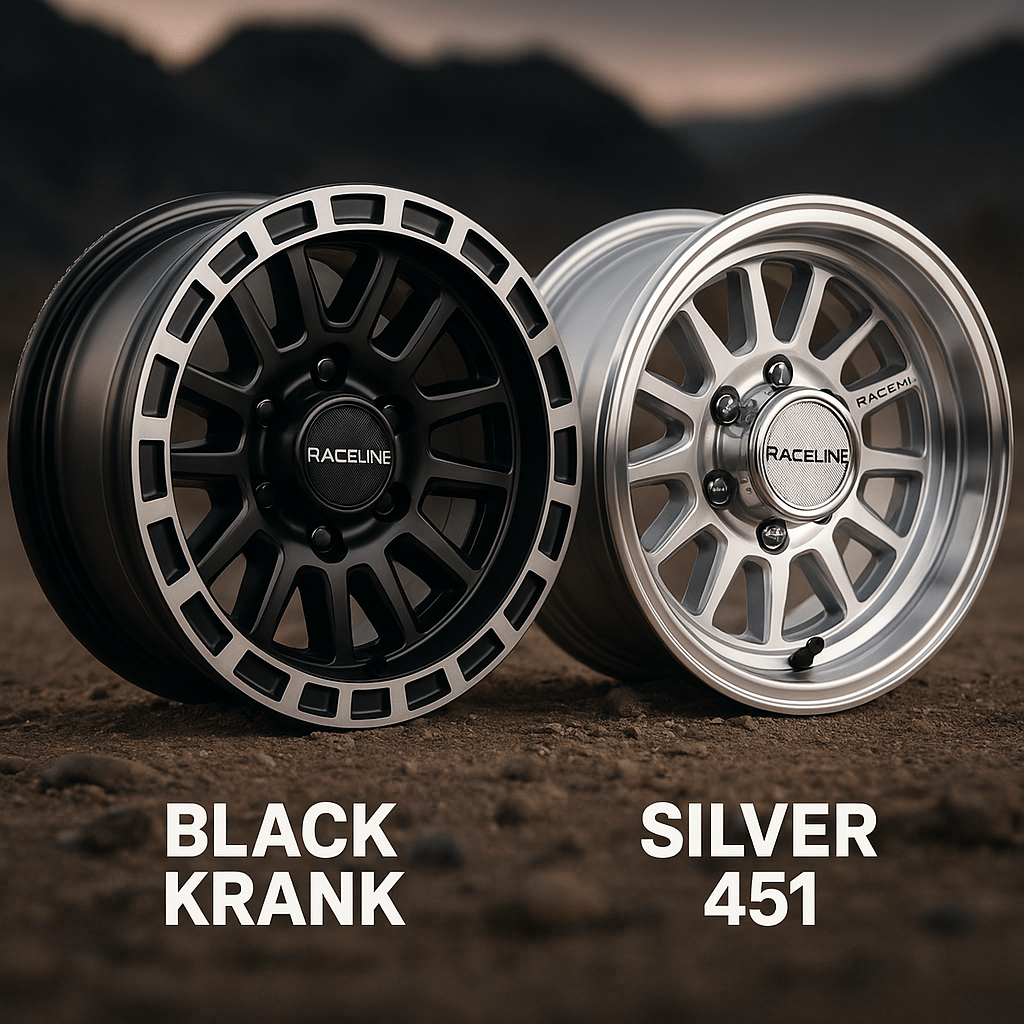

● FREE 13’’ Aluminum wheel and radial tire upgrade ($399.90 value)
● Trailer Deck Dimensions At Widest/Longest Points: 35’’ W x 84’’ L (With A Diamond Shaped Front End And A Rounded Square Rear)
● Clearance to the Top of the Deck: 13’’ H
● Tailgate Length: 32’’ L
● Folded Length: 85’’ L (from tip of coupler to end of folded bed)
● Overall Extended Length: 117’’ L (from front of coupler to end of open trailer bed)
● Outside Fender-to-Fender Width: 72’’
● Inside Fender-to-Fender Width: 54’’
● Height: 27’’
● Maximum Motorcycle Length: 98’’ L (from motorcycle’s front tire to its rear axle)
● Trailer Deck Type: Aluminum Diamond Tread Plate
● 3-Piece Loading Ramp○ Overall dimensions: 33’’ W x 42.5’’ L
○ Outside ramps (2): 11’’ W x 42.5’’ L
○ Center ramp (1): 11’’ W x 42.5’’ L
● Hitch: Class 2 or Higher
● Hitch Height: 21’’-22’’
● Ball Size: 2’’
● Tire Size: ST175/80R13 Radial Tire
● Wheel: 13” Aluminum Split-Spoke
● Air Pressure: 50 cold psi
● Suspension:○ Independent Torsion Axle
○ Suspension Mounts
○ Double Mounting Brackets
● Empty Weight: 325lb
● Maximum Load Capacity: 1000lb
● Frame Material: Steel Tubing
● Finish: Powder Coated
● Flat 4 Connector
● 2" Ball
● Some Assembly Required
