Long Bed UTV Truck Deck
UTV Truck deck designed for 8' Foot Bed. Haul your Side by side and camper at the same time with a utv truck rack. This Utv Deck is capable of transporting up to a 2,900 pound side by side including a Can Am X3 Max. Tow Smart UTV Decks are made in Santa Fe Springs California. Each Sxs deck is powder coated flat black providing that extra protection for years to come. This unit does not require you to drill through the truck bed, deck is secured using 4 1/2 inch Turn buckles. Turnbuckles are fastened using the existing factory Tie down corner anchor points. The Rack has a usable width of up to 78 inches and 160 inches of usable wheel length. Two 10Ft Bi Folding Aluminum Ramps are supplied with each rack. The Ramps are secured using 2 Safety pins for each ramp.
Features:
| Coating |
Powder coated Flat black
|
| Ramps |
(2) 10 Foot Folding Aluminum Ramps with combine capacity of 3,000lb
|
| Tie Down |
(4) Turn Buckles
|
| Tie Down Points |
(4) Weld on D Rings to secure Turn Buckles
|
| Wheel Tie Down Points |

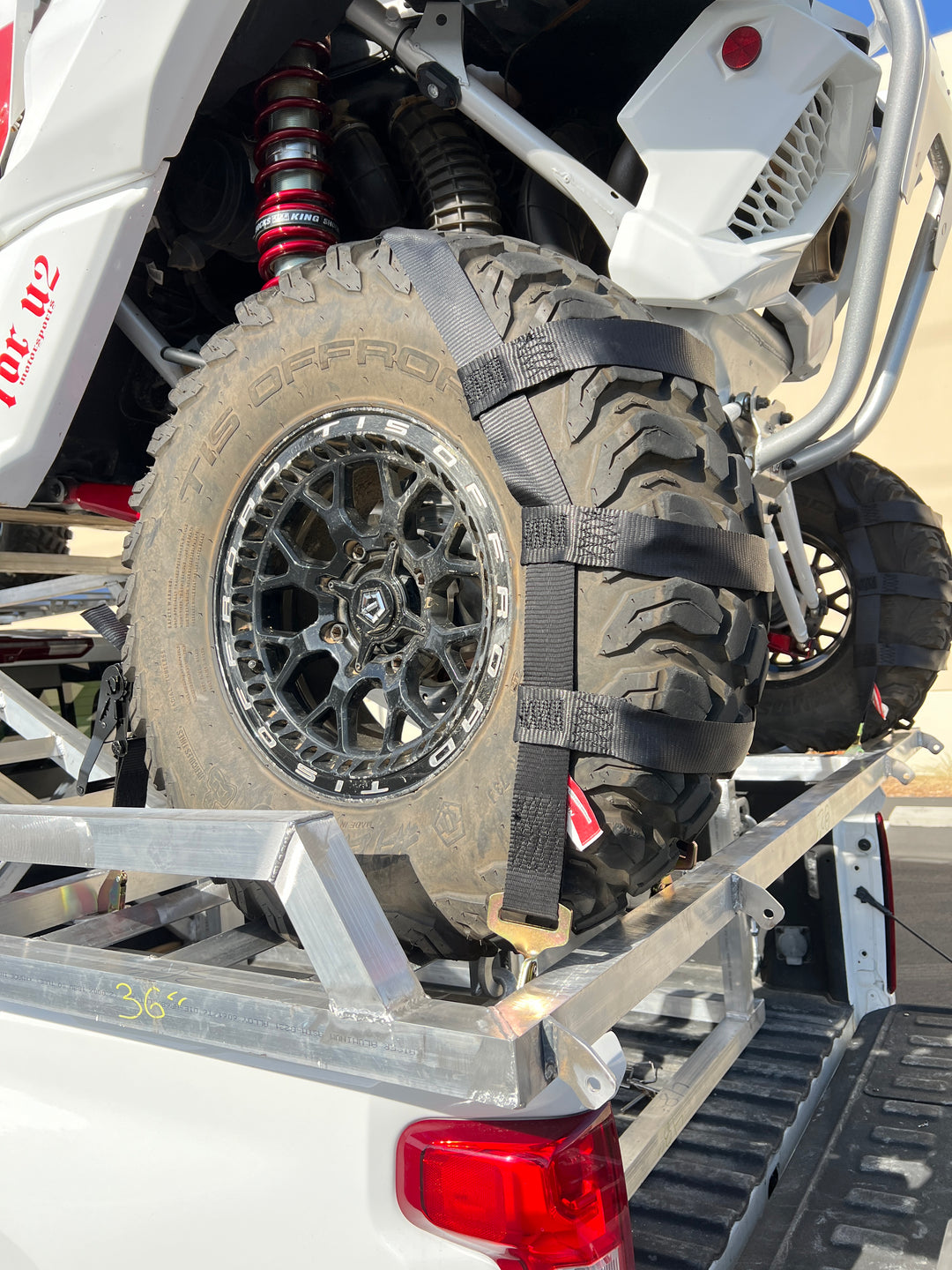

3 Point Tie Down point is welded where each wheel sits.
|
| 6 Inch Railing |
Provides Safe loading
|
| Steel Construction |
2x2
|
Specifications:
- Overall width - 82 inches
- Usable width - 78 inches
- Center Width - 44 inches
- Overall Length - 176 inches
- Usable Length - 168 Inches
- Base Length - 80 inches
- Base Width - 48 inches
- Overall Height - 57 inches
- Height of rear wheel platform - 25 inches
- Height of Front wheel Platform - 51 inches
- Width where wheel travels - 17 inches
- Ramp Width - 17 inches
- Ramp Length - 10 Feet
- Ramp Weight - 47 lbs
- UTV Deck Weight - 450 lbs
Frequently ask questions
Will this Rack work with my truck?
Please insure that your truck has a payload capacity which can hold weight of the rack and weight of your side by side, Typically all 3/4 Ton trucks will work.
What side by side can be towed with this utv deck?
Any side by side that has a wheel base length of less than 168 inches, Can am X3 Max ,Polaris RZR, Yamaha YXZ , Honda Talon , Wildcat, Etc.
Can the rack be loaded by one person?
The rack will require at least two people to be able to load onto pick up truck. As the front end will need to be lifted onto the tailgate, once the front end is on the tailgate the rack can be easily slid into place.
How Much does the rack weigh?
The UTV Rack weighs 450 pounds.
How much does the Ramps weigh?
The Ramps have a combine Weight of 94lbs weighing 47lbs a piece.
What will be the total height of my side by side once on top of Rack and truck?
This can be determine opening tailgate measuring from the (ground to the truck bed base) Plus (Overall Height of Side By Side) Plus (Rack 51 inches) = Overall Height.
Can this be used on another truck?
This rack is designed to be universal to fit any 8 foot Truck bed.
UTV Deck cab over Shipping
All decks have a $700 WEST COAST -$1100 MID AND EAST COAST Shipping fee. Shipping time 2-4 Weeks (subject to change) from or you can simply schedule to pick up at our location at no additional cost. Warehouse address is 10725 Forest st. Santa Fe Springs CA 90670. ( SHIPPING IS NON REFUNDABLE)
LOCAL PICK UP TURN AROUND TIME-
Customers who opt in for local pick up can arrange pick up within 1-2 weeks time from next business day of purchase Please email us to get an exact date
CANCELATION AND RETURNS
Free cancelation is accepted within 24 hours, majority of the time these units are built to order and we require full commitment when purchasing a unit.
Returns are not accepted on this item. Please make sure measurements on your side by side are compatible before buying UTV DECK.
