• Tow Dolly With Surge Brakes

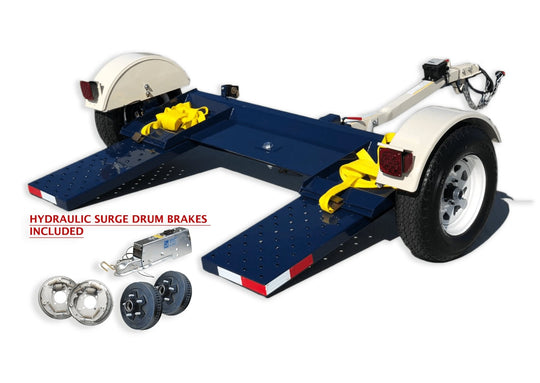

    Tow Dolly with Surge Drum Brakes

    Traveling with an RV throughout the country without a vehicle can limit the adventure of a trip. Common problem RV owners face after purchasing there Dream RV is debating whether or not to bring along a vehicle. A vehicle expands the journey of a trip, reaching places RV’s could not or have complication getting to. Debating on what towing system to use may be a bit complicated, from a variety of tow rigs in the market Tow Smart Trailers has nailed down the reasons why towing with a car tow dolly is the most convenient inexpensive choice.

    Benefits towing with a hydraulic surge brake car tow dolly

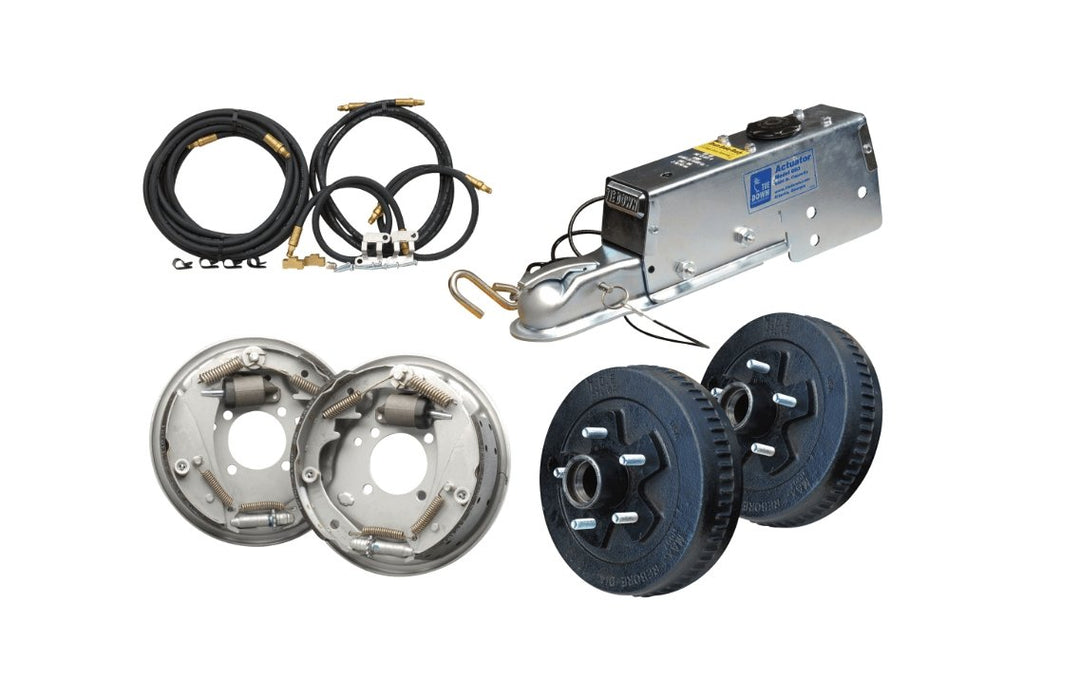

    Towing with a tow dolly with surge brakes prevents wear and stress on your RV. THE Self-contained braking system allows this dolly to be used with any RV, SUV, OR TRUCK while efficiently providing smooth braking. The term Surge Brakes is commonly used to interpret how a Hydraulic Actuator absorbs the inertial given at the time of a stop which then transfers the DOT 3 brake fluid to the two 10” Drum brakes. All of course without the assistance of auxiliary controllers.

    Car Tow dolly is equipped with the highest sought after braking system in the market. The Hydraulic Surge drum brake system makes a car tow dolly stop frequently whenever your tow vehicle stops. How does it function? The Surge brake system works by the given inertia absorb at the time of braking. This inertia transfers onto the self-contained actuator which pushes Dot 3 brake fluid into the drum brakes providing instant braking! No need for controllers or additional

    We offer this car tow dolly in Santa Fe Springs CA 90670. Local pick up and shipping is available.


    To locate the nearest XPO LOGISTIC TERMINAL CLICK HERE

    Assembly is required if shipped, Assembly will consist of 2-3 hours, Bleeding of brakes will be necessary to ensure proper braking.

    Straps, Title, Vin Number are included


     TOW DOLLY/ Surge Brakes Features

    • The Tow Dolly will haul small, medium, or large cars, trucks, and vans
    • Durable Powder Coat Finish
    • We use easy lube hubs, eliminating the need for disassembly of the wheel bearing for greasing
    • Hubs are compatible with Bearing Buddy No. 1980A (not included)
    • Our 205/75-D14 heavy-duty tires and wheels assure a smooth ride at all towing speeds
    • Our fenders are made of steel- We use a factory molded, plug together wiring harness
    •  Heavy Duty Car Tow Dolly comes with a 1-year factory warranty

    TOW DOLLY Specifications

    • Overall Dimensions L x W x H (in) - 123 x 102 x 27 1/4
    • 10" Surge Drum Brakes

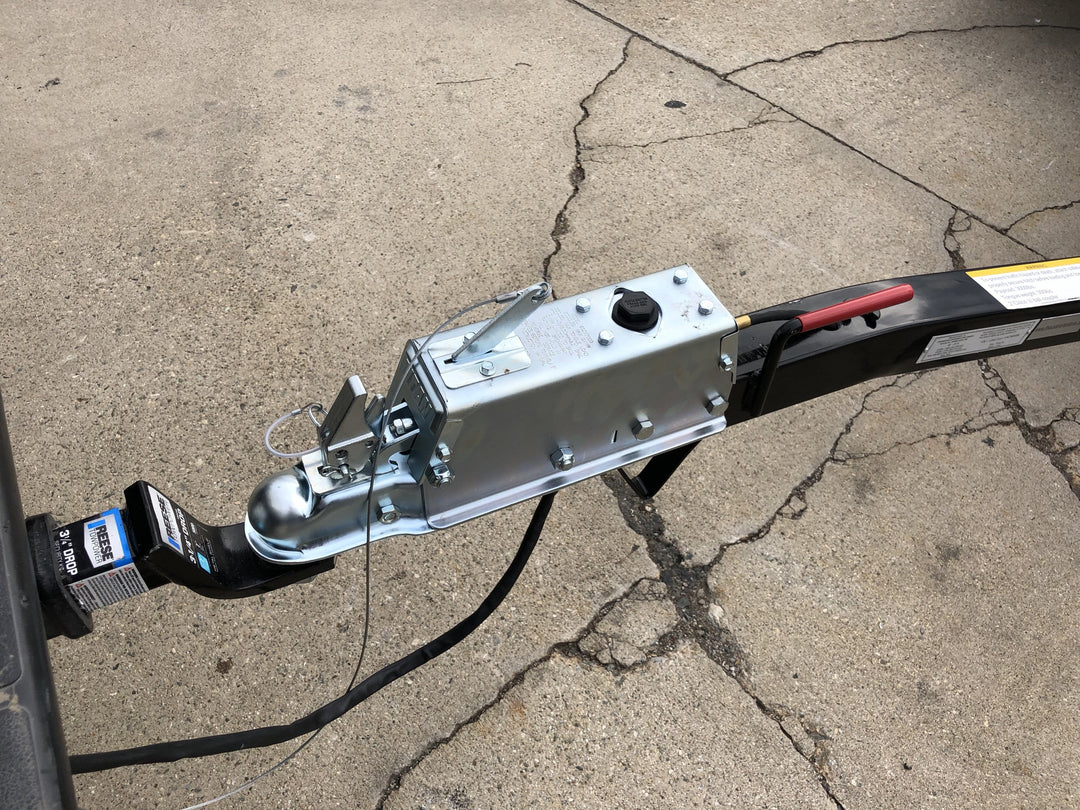

    • Actuator
    • Tow Capacity - 4,900 lbs
    • Heavy Duty Frame
    • 2'' Coupler
    • Powder Coat Finish
    • 6,500lb Lashing Winches
    • 12,000lb Rated Tire Nets
    • Dual Safety Chain Set
    • Heavy Duty Spindles & Cast Hubs w/ Easy Lube Hub
    • Sturdy Steel Fenders
    • 14'' Heavy Duty Tires
    • DOT Approved Lighting
    • Pre- Wired Factory Wiring Harness
    • Electric Brake Capability
    • LED Taillights
    • Maintenance Free Teflon Pads for Easy Turning Pan
    • Tire Size - 205/75-D14
    • Tire Pressure - 65 psi - Cold
    • Empty Weight - 475 lb
    • Actual Cargo Capacity - 3,000 lbs.
    • Maximum Gross Weight of Vehicle to be Towed - 4,900 lbs.
    • Hitch Height 17"
    Tire Pan Width
    • 79 1/2 in. maximum width
    • 43 3/4 in. minimum  width


    1 yr Warranty


    Shipping Information

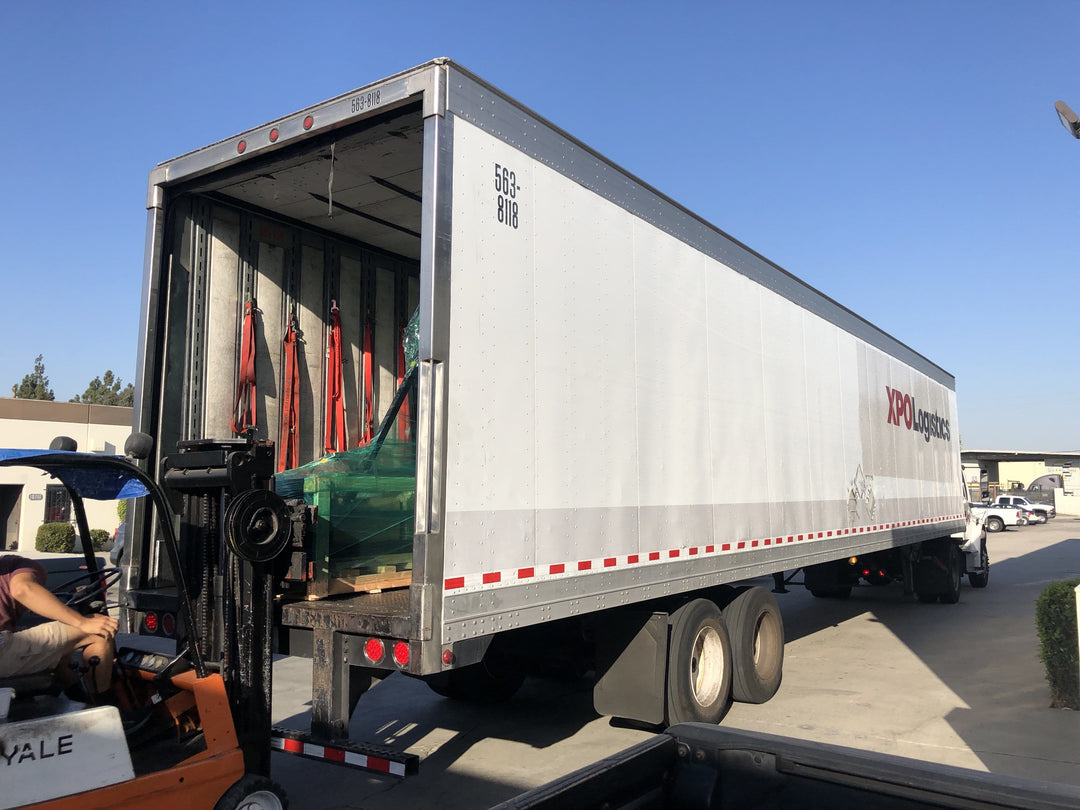

    Terminal Pick Up - Your order will ship via "our designated carrier", and "will be delivered to their nearest terminal location" to you. Please inquire about the terminal locations distance from you and confirm it is acceptable before purchase. Once this is confirmed, we will provide you with the address to the location, and the delivery company will contact you when your order is ready for pickup.

    The item will be shipped via a trucking service to their closest terminal location to you. For an exact shipping rate please reach out to one of our qualified sales associates. (Also available for pickup at our warehouse(s) at no additional charge
    NOTE: Please inspect all packages upon delivery. Any damages or shortages MUST be noted on the Bill of Lading at the time of delivery. Notify the carrier and The Tow Smart Trailers™ immediately, and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records. Note that the carrier will make a final determination on all claims.
    Unless you are picking up from the our carrier’s terminal, the carrier will use an 18 wheeler when making the delivery of your item. The 18 wheeler must be able to access your home or business. If an 18 wheeler is unable to access the place of delivery then you will be required to pick up from the trucking company’s terminal. If delivering to a place of business, the business must be open and staffed Monday through Friday between the hours of 9 AM and 5 PM. If delivering to a residence the trucking company will make a delivery appointment. If the business is not open at the time of delivery, or if a delivery appointment is missed, then you will be responsible for a redelivery fee.

    Note: To best maintain the integrity of the trailer, the Car Tow Dolly is shipped - and will arrive - disassembled. Please see in the photo section of this ad the photos showing the disassembled dolly.
