Tow Smart Trailers · UTV Truck Rack
Height Calculator
Grab a tape measure. Three measurements tell you exactly how tall your truck will be with your machine loaded on the rack.
1
Measure from the ground straight up to the bed floor, at the tailgate.
inches
2
Ground to the highest point (usually the roof). Check your owner's manual or measure it.
inches
3
Measure from the center of the front wheel to the center of the rear wheel.
inches
Your total height, loaded
—
—
What it looks like
On our rack, your machine's rear tires sit 23" above the bed floor and the front tires sit 49" — it rides at a slight incline, and this calculator accounts for that. Always double-check with a tape measure before travel, and know your clearances — garages, drive-thrus, and low bridges.
Tow Smart • UTV Deck System

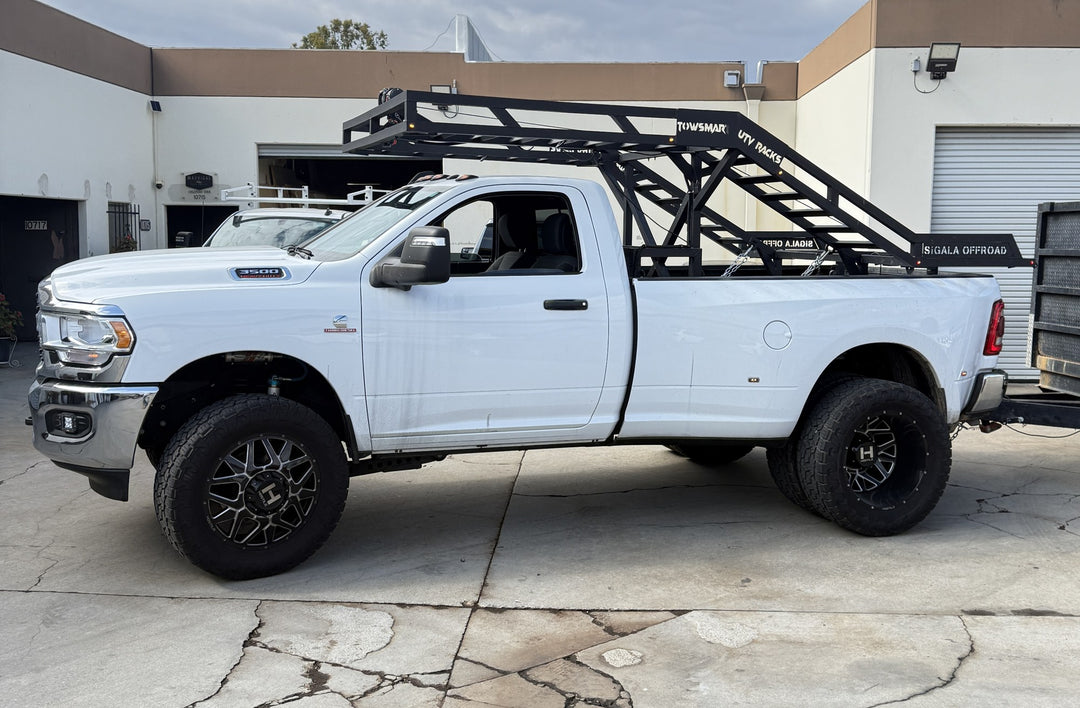

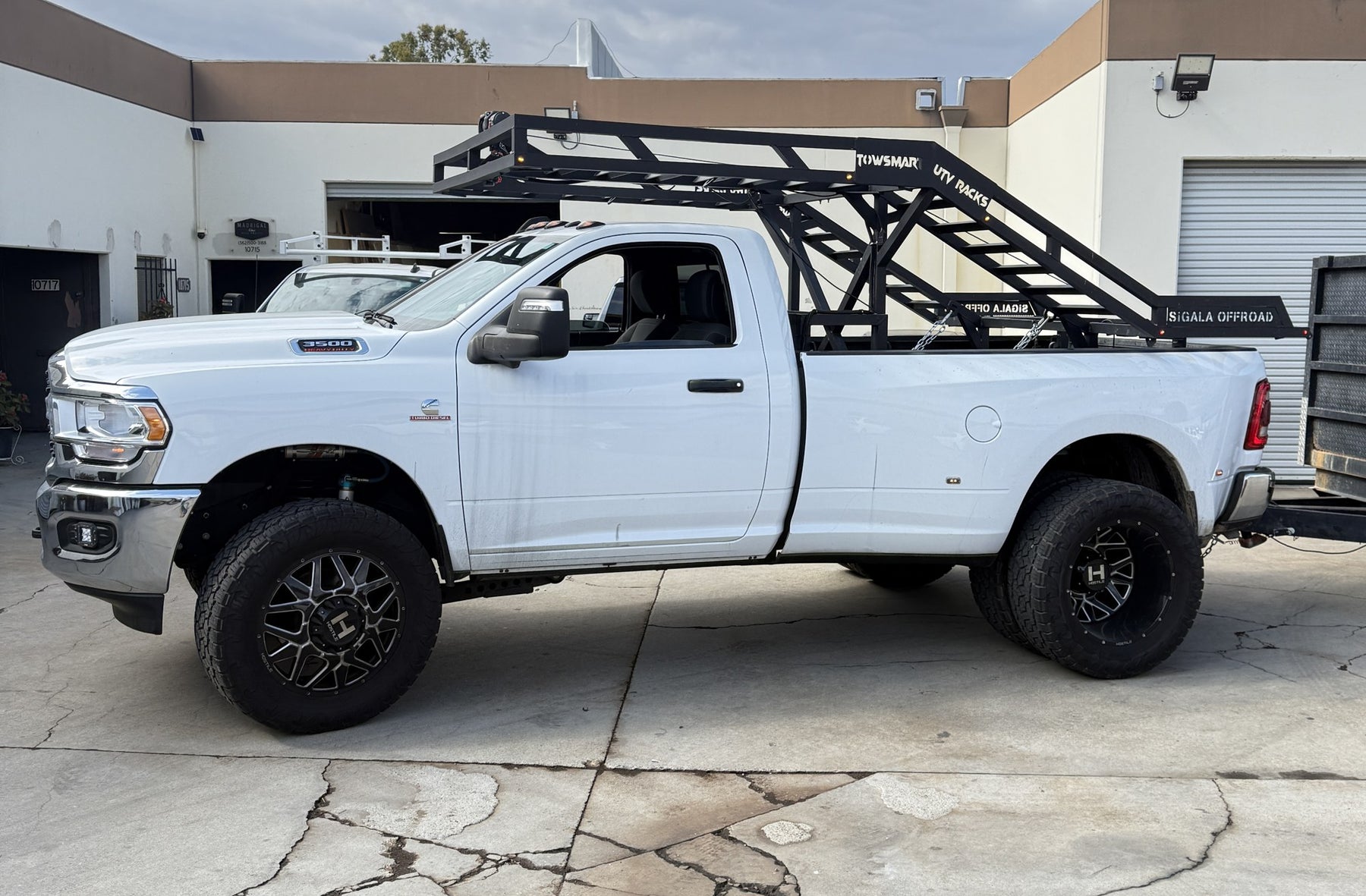

Aluminum UTV Truck Rack

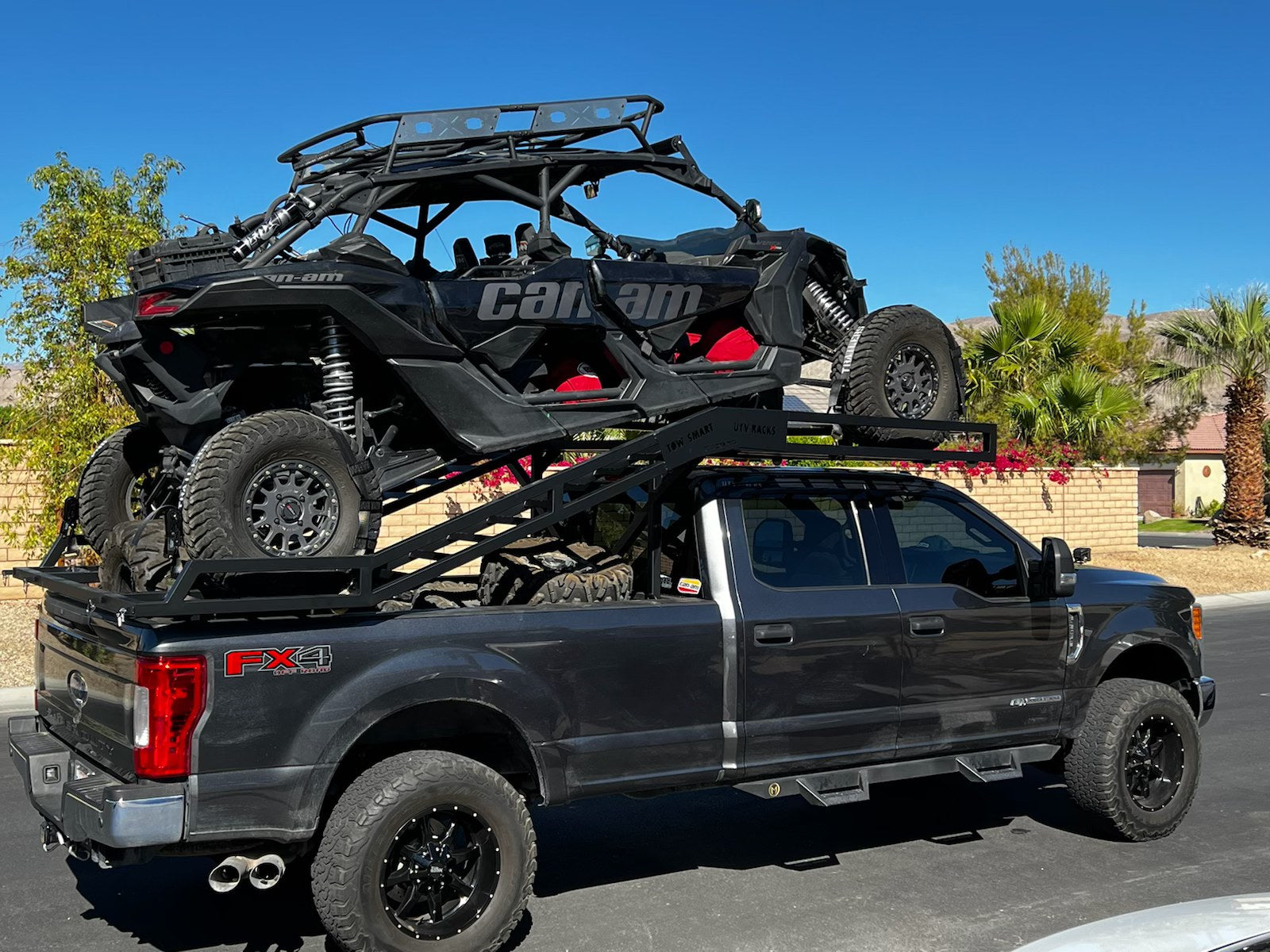

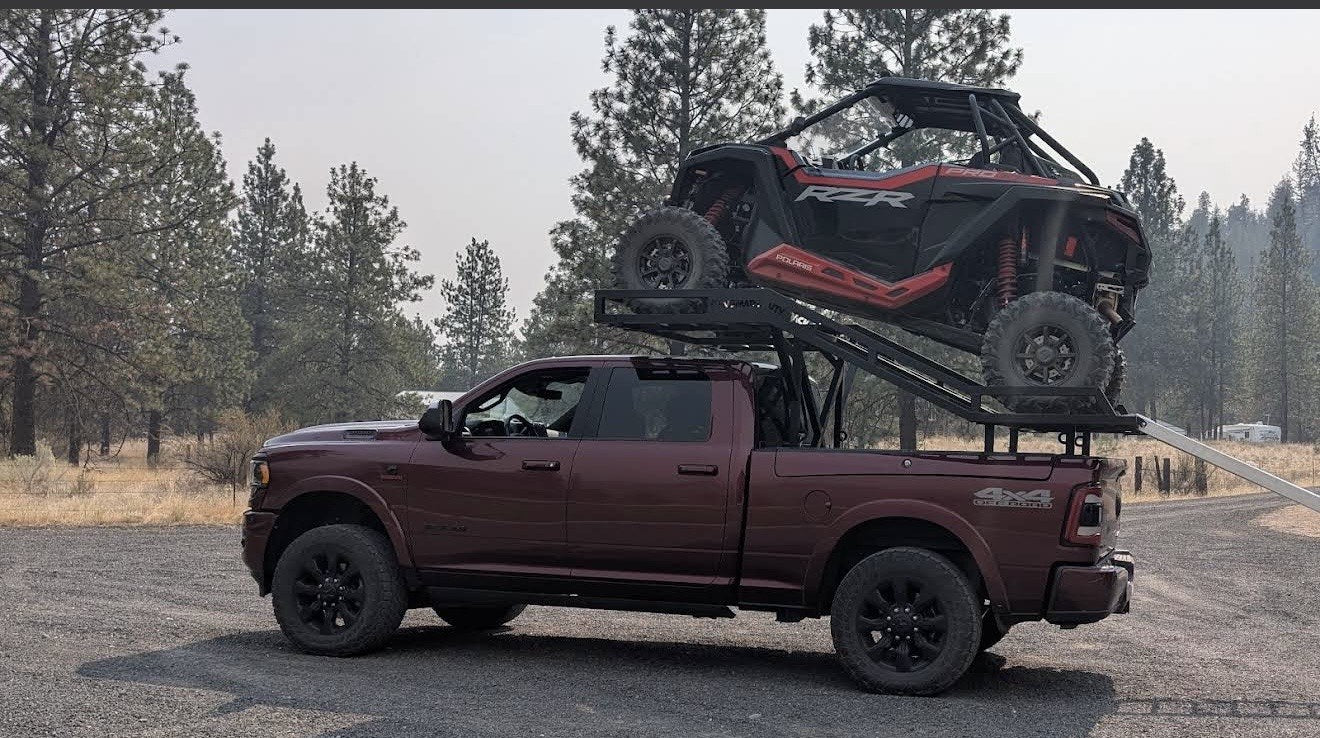

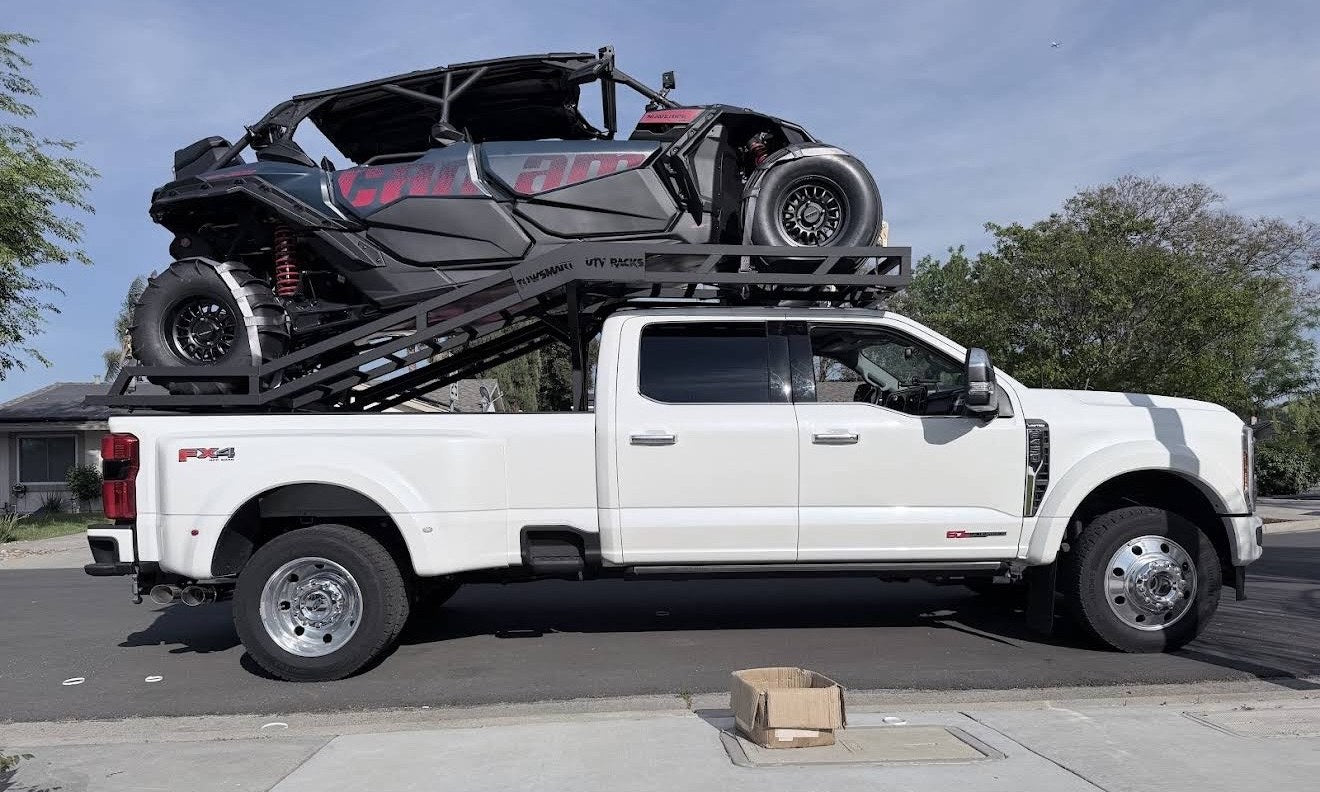

Meet the Aluminum UTV Truck Rack Comes Powdercoating— the evolution of UTV transport. Crafted from 6061-T6 aircraft-grade aluminum, it’s engineered to haul your SxS or UTV above your truck bed while keeping your hitch free for towing a camper or boat. Weighing only 320 lbs, it’s 40 percent lighter than its steel counterpart (520 lbs) yet rated to handle up to 3,000 lbs of load. Whether you own a Polaris RZR, Can-Am X3 Max, or Yamaha Wolverine, this rack delivers the perfect balance of strength, speed, and style.
6061-T6 Aluminum 3,000 lb Capacity 12.2 ft Ramps Included No Drilling Install
40% Lighter Than Steel
Powder-Coated Silver
Fits 6′–8′ Beds
Made in California
Built for Power, Designed for Precision
The Tow Smart Aluminum UTV Truck Rack is more than a platform—it’s a complete hauling system. Each rack is CNC-cut and welded from 6061-T6 tubing, offering superior rigidity without excess weight. The structural triangulation beneath the deck distributes weight evenly, reducing stress on your truck’s bed rails and suspension. Powder-coated silver for corrosion resistance, it’s ready for years of adventure in any climate—from California desert trails to snowy Utah passes.

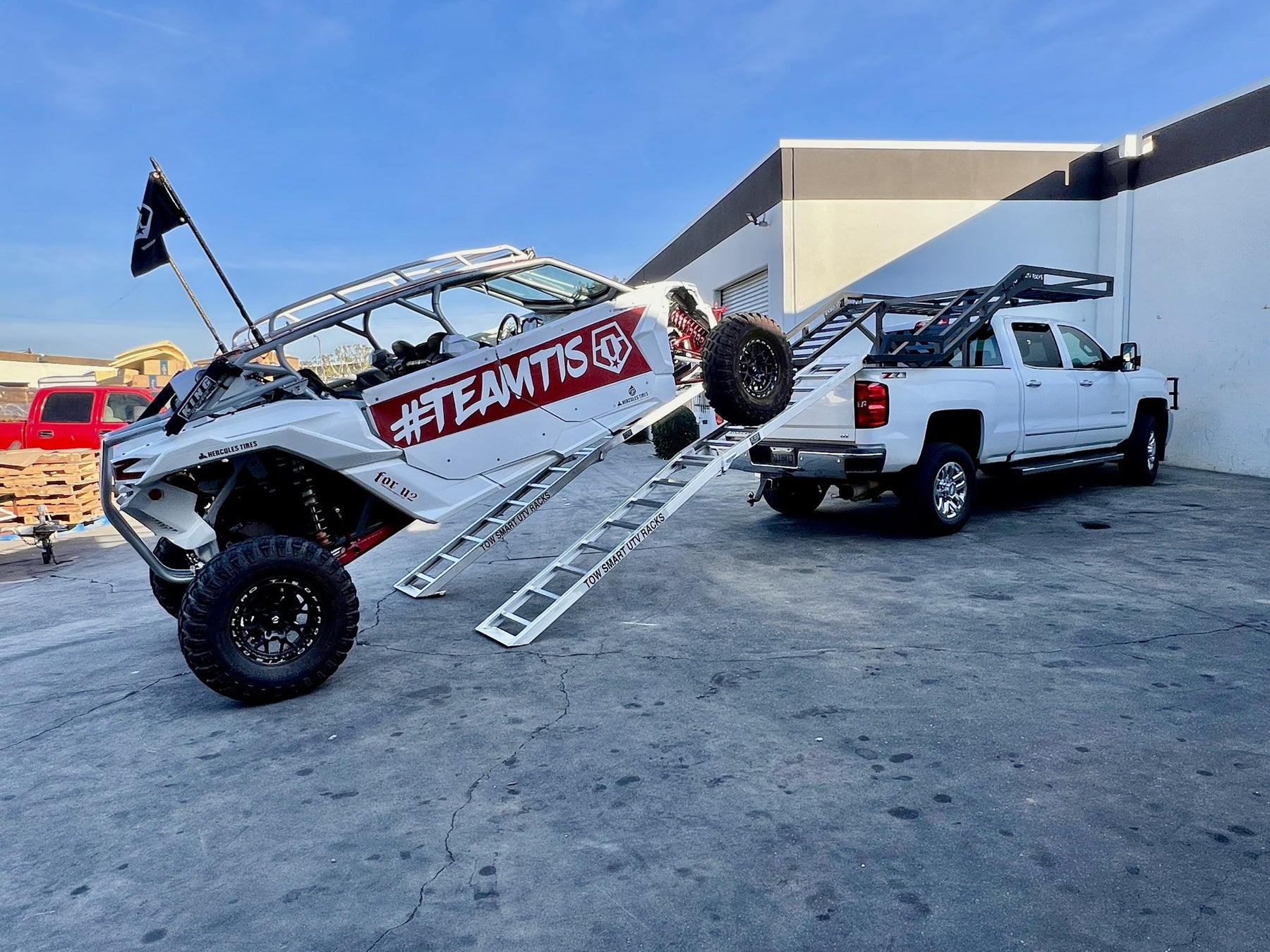

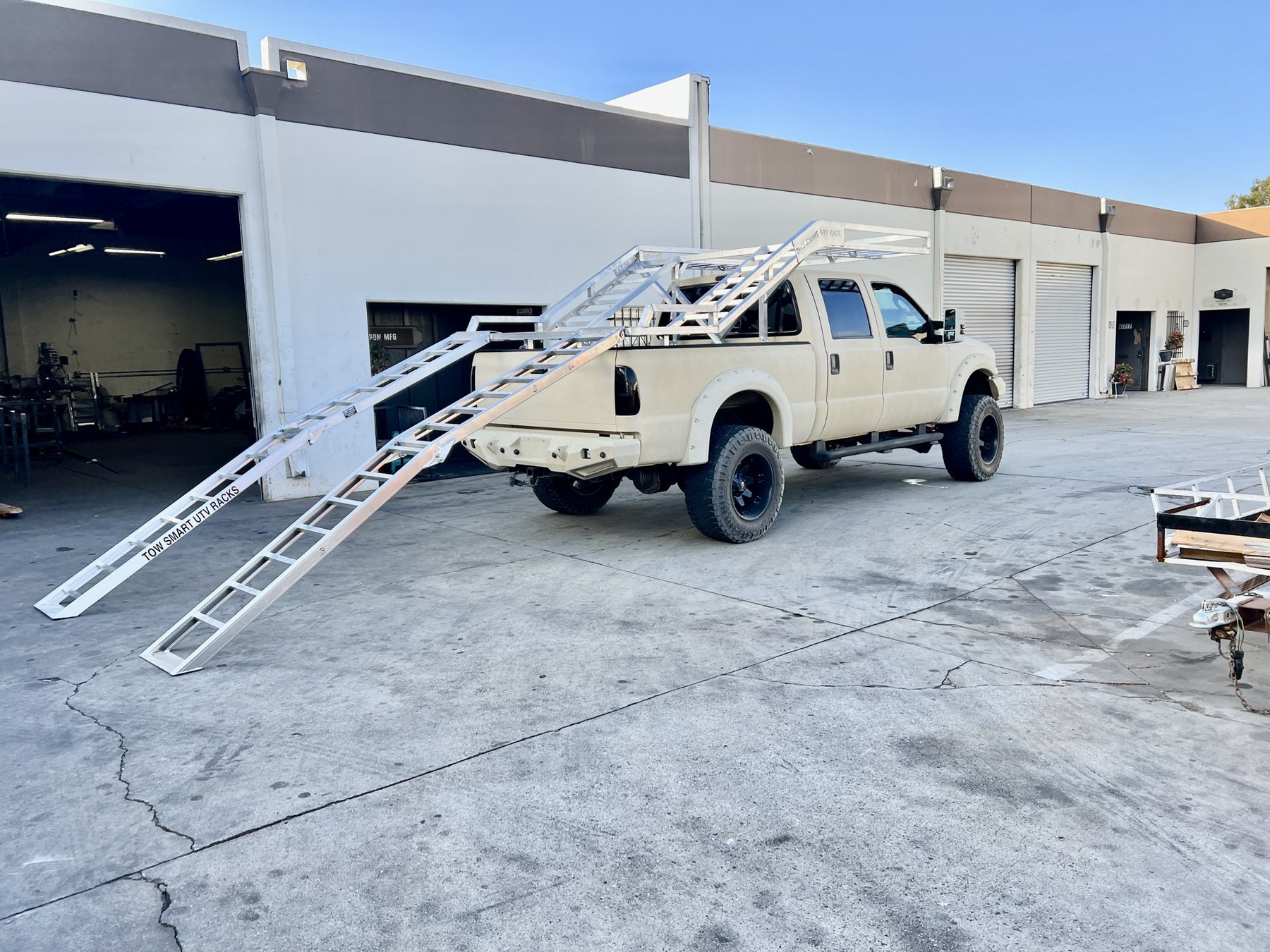

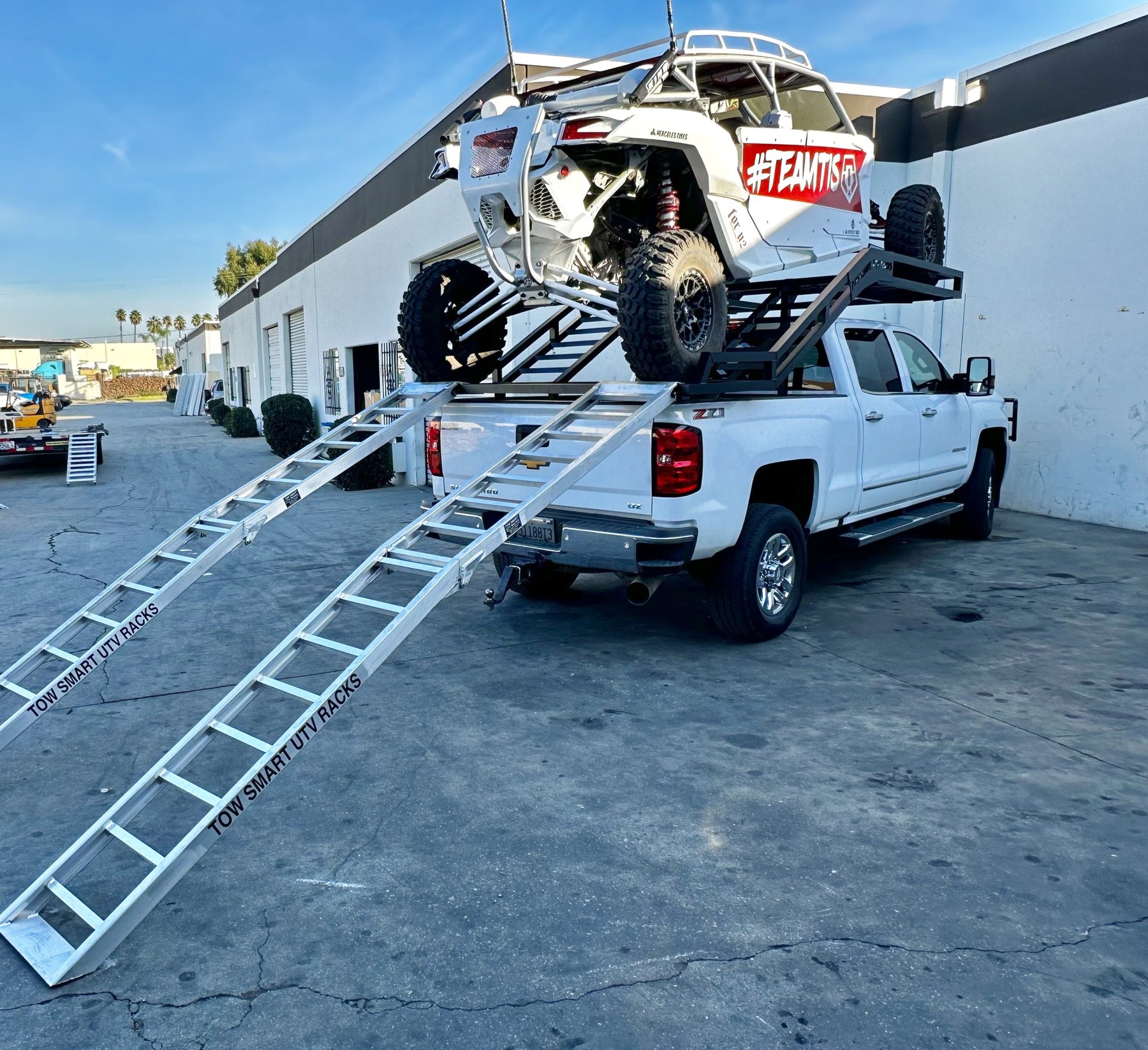

Load your UTV using the 12.2-foot aluminum ramps with pin-lock safety and anti-slip mesh, allowing a low approach angle even for wide SxSs. Once secured with four factory tie-downs and turnbuckles, the setup becomes one with your truck—solid, stable, and safe at highway speeds.
Aluminum vs Steel — The Weight Advantage
Aluminum Rack Weight
≈ 320 lbs
Steel Rack Weight
≈ 520 lbs
Weight Savings
40% lighter (≈ 200 lb difference)
Easier loading
loading can be done with 2 persons
Less weight means faster acceleration, smoother braking, and improved handling—without sacrificing payload capacity. Aluminum’s natural corrosion resistance also eliminates rust, making it ideal for coastal and winter environments.
Key Features

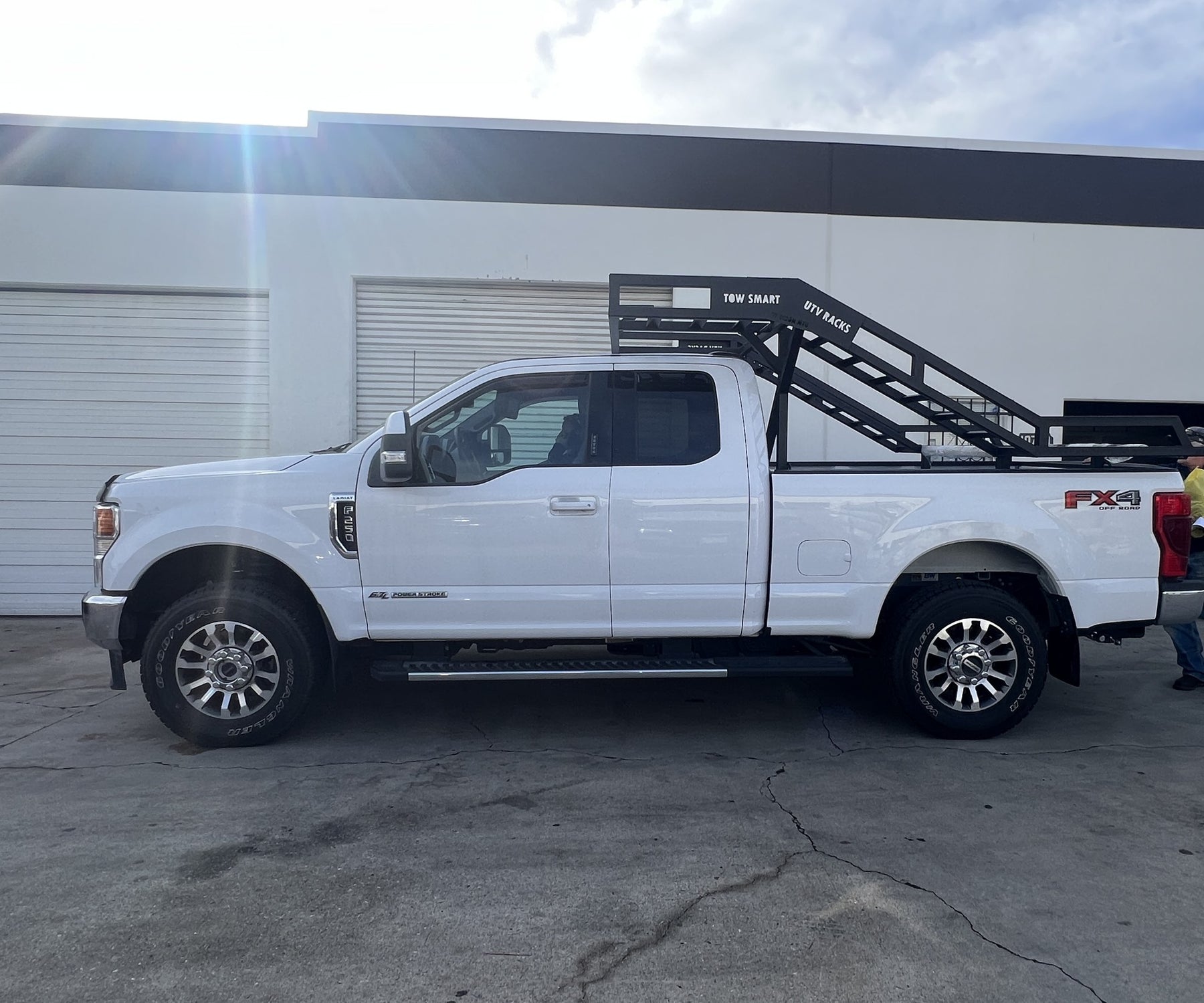

- Universal Fit Design – Works with short (6′–6′8″) and long (8′) beds, flatbeds, and most ½- to 1-ton trucks.
- Modular Construction – Replaceable crossbars and tie-down points for adaptable use.
- Anti-Slip Ramp System – Secure 12.2 ft ramps with locking pins ensure safe, stable loading.
- Quick Install – Attaches to factory tie-downs using heavy-duty turnbuckles—no drilling.
- Rust-Proof Durability – Powder-coated finish resists salt, sun, and impact.
- Compact Storage – Easy to remove and store flat when not in use.
- Dual-Use Capability – Carry your UTV while towing a boat or camper.
- California Built – Fabricated and assembled in Santa Fe Springs, CA.
Specifications
- Material: 6061-T6 Aluminum
- Overall Width: 76″ (standard) / 86″ (wide)
- Usable Width: 72″ / 82″
- Deck Length: 72″
- Mounting: Turnbuckle system to factory tie-downs
- Ramp Dimensions: 12.2 ft × 18″ each
- Rack Weight: ≈ 320 lbs
- Capacity: 3,000 lbs (total load)
- Finish: Powder-Coated Silver / Black Trim
- Warranty: 1-Year Manufacturer Warranty
Perfect For Adventurers Who Need It All
🏕 Overlanders
Carry your SxS and tow a camper—no compromises.
🏁 UTV Racers
Load up quick with 12 ft ramps and arrive track-ready.
🚙 Weekend Warriors
Keep bed space free for gear, fuel, and tools.
⚒️ Contractors
Convert the deck to haul ATVs or lumber on weekdays.
Gallery & Video
FAQs
- 1) Will this fit short and long beds?
- Yes — fits 6′–6′8″ short beds and 8′ long beds using the same mount system.
- 2) How much weight can it carry?
- Rated for up to 3,000 lbs combined (UTV + gear). Always check truck payload limits.
- 3) Do the ramps store on the rack?
- Yes — they pin securely underneath the deck using lock pins.
- 4) Is drilling required?
- No. It mounts to factory tie-down points with heavy-duty turnbuckles.

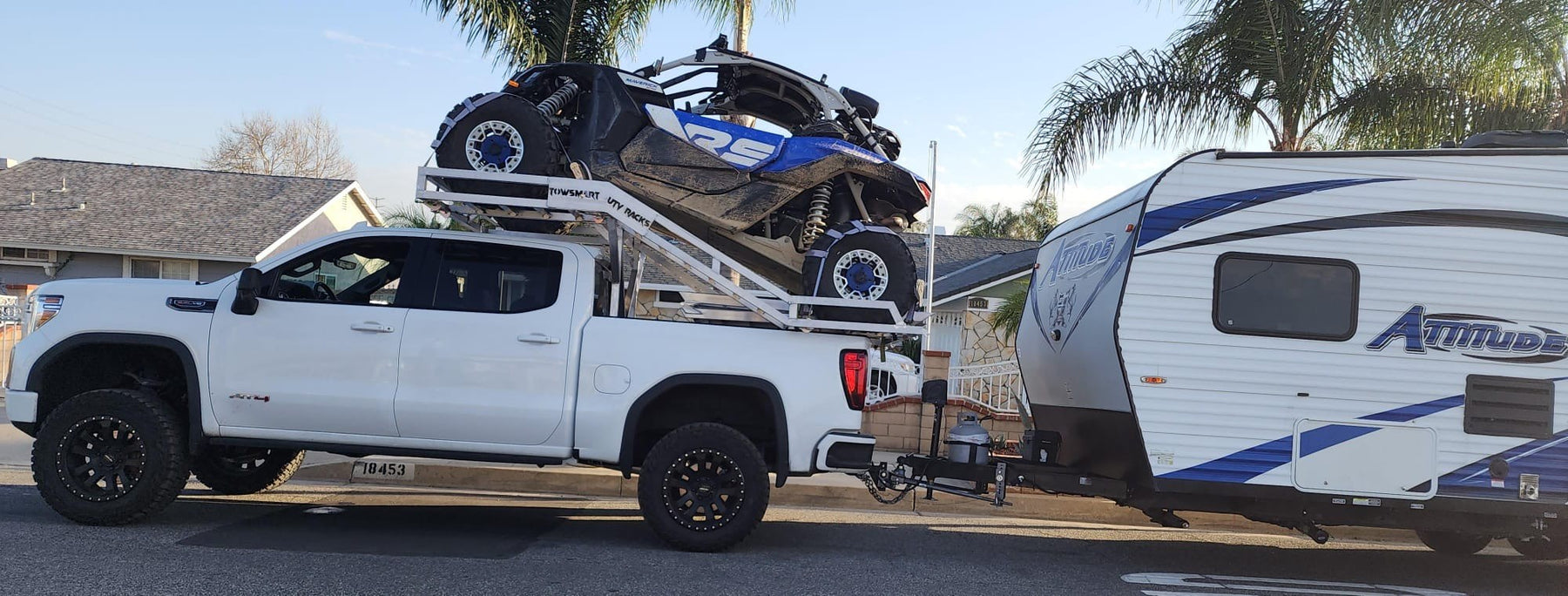

- 5) Can I tow a camper while hauling my UTV?
- Yes. The elevated deck keeps your hitch free for trailers or boats.
- 6) What maintenance is required?
- Inspect tie-downs and ramp pins regularly. Wash with mild soap to preserve finish.
- 7) Does it fit flatbeds?
- Yes — fits most flatbeds with mount spacing matching tie-down anchors.
- 8) Where is it made?
- Fabricated and assembled in Santa Fe Springs, California.
