6'x9' Utility Foldable Trailer
Regular price $4,200.00 Sale price $2,499.00Due to Demand We are current Sold out will be restocking April 15th Punch in your pre order to receive FREE NON MATCHING SPARE TIRE
At Tow Smart Trailers we carry some of the most versatile tow trailers for sale and our Endeavor Powersport Utility Trailer is no exception.
The Endeavor Powersport Utility Trailer stands out not only because it can accommodate a huge variety of cargo types, but also because of its smart folding design and a space-saving footprint.
Perfect for both serious hauling jobs and transporting toys for your weekend getaway, this utility trailer easily handles lumber and construction materials, home appliances, dirt bikes, motorcycles and trikes, all offroad vehicles (including ATV, UTV, and SxS), smart cars and other small cars, and even golf carts.
The 6’x9’ expanded metal platform ensures there is enough space for even the hardest-to-haul items, providing a wider and longer footprint than the average pickup truck or tow trailer in its price range. The foldable tailgate design makes the extra-long footprint no problem for storage. The low deck height and long ramps decrease the angle of approach when loading vehicles, making loading safer while maintaining a low center of gravity to increase towing stability. Made from tubular steel for enhanced strength and lightweight construction, the Endeavor Powersport Utility Trailer also features a heavy-duty steel mesh platform design that further adds to its lightweight, easy-to-fold design (meaning you can haul more and still stay within weight limits). Moreover, the mesh and cage design (as opposed to a solid platform and solid walls) also enable proper drainage in wet environments, preventing rust and keeping the loading platform from becoming slick. Both materials are powder coated to increase the trailer’s durability and resistance to cracks, rust, and damage from abrasion or chemical exposure, guaranteeing that this utility trailer will look as good as it performs for as long as you use it. And long-term, year-round use is what the Endeavor Powersport delivers. In one utility trailer, you get a work-horse trailer throughout the week and a toy hauler on the weekend. Take everything you want or need on one trailer, in one trip, with ease.
Utility Trailer Great For All Powersports
Features
● 6’x9’ (72”x108”) expanded metal platform for above-average towing capacity, even beyond that of extended-bed pickup trucks.
● Foldable tailgate for space-saving design and smaller-than-average storage footprint.
● 14” deck height and 9” axle clearance keep the center of gravity low without compromising shock absorption.
● Two included 48”x13” ramps ensure a low angle of approach and easier alignment than thinner, shorter ramps (or using wooden boards); with no wheel stop gap at the end of the ramp, loading does not risk damaging tires.
● Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over weight.
● Powder coated finish provides long-lasting high-quality appearance, damage-resistance, and durability.
Specifications
● Trailer Deck Dimensions: 6' x 9'
● Clearance To Bottom Of Axle: 9"
● Deck Height: 14"
● Overall Height With Ramps Stored: 28 1⁄4"
● Overall Height With Ramps Detached and Tailgate Folded: 24"
● Tailgate Length: 43"
● Folded Length With Tongue: 108"
● Folded Length without Tongue: 94"
● Maximum Overall Width: 101"
● Fender to Fender Interior Width: 84"
● Width Between Side Rails: 78”
● Maximum Extended Length (front of coupler to end of unfold tailgate): 151"
● Ramp Dimensions (two included): 48" x 13"
● Tire Size: ST175/80R13
● Wheel: 13" Aluminum
● Air Pressure: 50 cold psi
● Empty Weight: 530 lb.
● Maximum Load Capacity: 2000 lb.
● Hitch: Class 2 or Higher
● Hitch Height: 15"
● Ball Size: 2"
● Suspension: Independent Torsion Axle
● Suspension: Mounts Double
● Frame Material: Tubular Steel
● Finish: Powder Coated
Requirements
● Flat 4 Connector
● 2" Ball
● 12"-16" Tongue Height
● Some Assembly Required
Shipping
*Flat Rate Shipping $399.00, Shipping only applies to the following states CA, OR, WA, NV, AZ, UT & ID. Due to Trailer sizes, trailers are shipped to the nearest XPO LOGISTIC SERVICE CENTER or Business with forklift or Dock. Items usually ship 2-3 business days after purchase transit days range from 2-4 days. Please contact us for an exact shipping address for the terminal (562-788-0416).

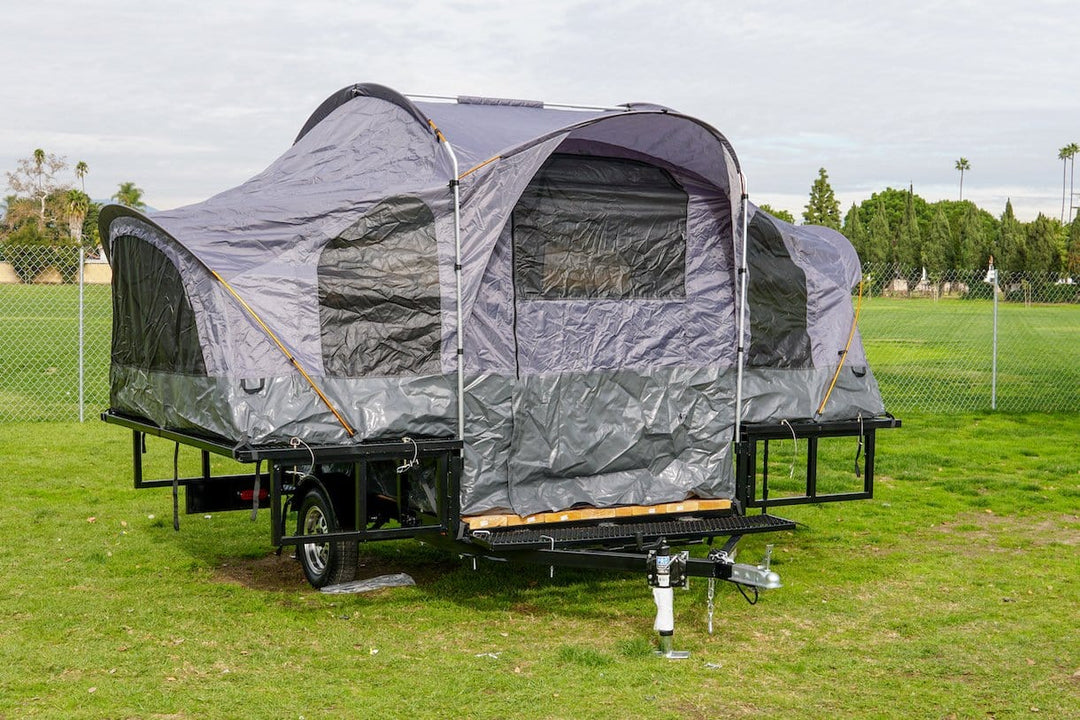

ATV Camping and Utility Trailer
Regular price $3,999.00 Sale price $2,299.008 UNITS STOCK NOW!
The Ultimate Tent Trailer Combo
2 in 1 Combo trailer capable of towing ATV, dirtbikes, and camping gear!
This original and unique trailer is a true two-in-one design that is a perfect solution for those who need to work and want to play! Don’t buy a tent camper or a utility trailer without seeing this first! Imagine a sturdy utility trailer that you can use all week to haul your work gear and when the weekend comes, you can convert it in just minutes to a comfortable tent camper! Take your ATV along without loading it in a truck! Just put it on the trailer, take it off at your campsite and in about the time it takes to pop a tent, you’re camper is ready too! And speaking of tents, this set-up includes a huge 150 denier polyester tent that can sleep, six people! Comfort, utility, and style are what this is all about. Here’s the best part, all of this can be towed with a Jeep, small SUV or even a car! All of the specs and a great video are available here:
Use to Camping Utility Trailer to:
- to keep you dry and off the ground as a tent trailer;
- to haul your favorite Harley as a motorcycle trailer;
- to get you to the rapids as kayak trailer;
- to hit the trails with family and friends as a mountain bike trailer;
- to find solace on a lake as a canoe trailer;
- to get lost in the woods as an ATV trailer; and
- to do your chores as a utility trailer.
Atv Camping Tent trailer Features
- The trailer is designed for smooth towing by any vehicle with a class II receiver towing capacity.
- Trailer frame can be used without a tent as a utility trailer
- Bed platforms can be stored on top of trailer and used as utility platform – this is not possible on similar trailers
- Weather resistant tent bag - protects tent while in storage and during transport - FREE
- 150 denier polyester weather resistant tent
- 7’ Ceiling*
- 81sq-ft of dining and sleeping space
- Fantastic ventilation provided by screen vents and 6 large windows
- Sleeps up to 6 people**
- Bed platforms accommodate 2 twin-sized air mattresses (1 per platform - not included)
- Trailer bed accommodates 1 queen-sized mattress (not included)
- Built-in wall pockets – for small-item storage inside the tent
- Bed platforms and supports can be stored beneath the trailer to provide a simpler utility trailer
- Front and rear end gates pivot open
- 12’’ Wheels
- Wiring harness with 4-pin flat connection
- Tongue jack - FREE
- LED taillights
- Loading Ramps
- Stabilizer Jacks
- 2” Ball Coupler
- Long-lasting lumber trailer bed
- Heavy-duty, rust-resistant steel frame
- Powder-coated finish
- Triple leaf spring suspension
Camping Tent trailer Specifications
- External- 88"L x 63" W x 20 1/2" H
- Internal- 84 3/8" L x 59 7/8" W x 14 1/8" H
- Overall Length of Trailer (from the tip of the tongue to the end of the trailer)- 136" L
- Overall Width of Trailer (platforms stored under the trailer)- 77 ½" W
- Overall Width of Trailer (platforms positioned over trailer bed)- 80" W
- Bed Platforms- 87" L x 40" W
- Gate Dimensions (each)- 30 1/4" L x 12 3/4" W x 1 5/16" H
- Trailer Bed- 84" L x 59" W
- Clearance from Ground to Bottom of Axle- 9 ½" H
- Distance from Ground to Bottom of Trailer Bed- 16 3/4" H
- Height from Ground to Top of Trailer Bed- 20" H
- Height from Ground to Top of Trailer Rails- 32 1/4"
- Towing Height- 17"
- Utility Cargo Space- 41.3cu-ft
TENT DIMENSION
Exterior- 84'' L x 136'' W x 84'' H
- Bed Platform & Accommodation- 75" L x 39" W Twin Mattress (Not Included)
- Tent Floor & Accommodation- 84'' L x 59 7/8'' W Queen Mattress (Not Included)
- Tent Interior Height- 7" (at highest point)
- Interior Space- 81sq-ft
- Tire Size- 5.30-12
- Wheel Size- 12"
- Load Range- C
- Air Pressure- 80 PSI COLD
- Empty Weight- 800lb
- Load Capacity- 1200lb – Trailer
- Gross Axle Weight Rating (GAWR)- 2100lb
- Gross Vehicle Weight Rating (GVWR)- 2000lb
- Trailer Frame- Powder-coated steel
- Trailer Floor Material- Wood
- Tent Frame- Aluminum Poles
- Tent Material- 150 Denier Polyester
- Tent Finish- 3000 mm PU Coating
- Tent Weight- 25lb
- Ball Coupler- 2"
- Tongue Length- 48"
- Maximum Tongue Weight- 200lb
- Suspension- Triple Leaf Spring
* At the tent’s highest point
** Including floor space - trailer bed accommodates one queen-sized mattress, and each bed platform accommodates one twin mattress
Easy assembly will require approximately 3 hours and may require 2 persons. Please see in the photo section of this ad the photos showing the disassembled dolly.
Black & Chrome Tow Dolly
Regular price $1,449.00B&C Car Tow Dolly
Description
Standard car tow dollies are almost always unassuming. Though some (like the complete line of Tow Smart Trailers car tow dollies) are designed to look good, they are not designed to stand out because of their appearance. Our car tow dollies and other vehicle trailers are always designed to stand out because of their unparalleled ease-of-use, professional-grade design, and standard accessory kits and safety features. This car tow dolly will also stand out because of its attractive, yet durable, black and chrome gloss powder-coated finish.
Featuring all the advanced design of our Car Tow Dolly With Swivel Pan, this car tow dolly strikes a perfect balance between dependability, affordability, and attractiveness. Its luxe outward appearance complements its high-grade engineering and construction. Its heavy-duty all-steel frame, steel fenders, heavy-duty tires, and accessory kit (including lashing winches, tire straps, and safety chains) enable it to haul even the biggest, heaviest pickup trucks and passenger vans. Yet its design is designed to minimize the stress placed on even the smallest four-wheeled passenger vehicles. Its standard heavy-duty spindles and cast hubs (with easy lube hubs) guarantee a smooth ride regardless of load weight or traveling speed. Its reticulating 80” swivel pan (balanced on maintenance-free Teflon pads) promises smooth, safe cornering and reduced wear-and-tear on your steering system.
Durable tilt down ramps makes loading simple enough to be handled by one person. Attaching and detaching the unit to any RV or truck is made easy by its standard trailer handle (welded near the coupler). This car tow trailer does more than just look good: it provides the safest, easiest, smoothest towing experience on the market. It makes towing look like an art form and lets you master the art of towing within minutes.
Features● Striking chrome and black finish ensures this car tow dolly will look every bit as luxurious as it is.
● Lightweight frame is easy for one person to maneuver, set up, and store.
● Convenient trailer handle welded near the coupler makes attaching and detaching the car tow dolly a breeze.
● Tie town straps, winches, and safety chain come standard and are integrated with the car tow dolly design to maximize ease-of-use and user safety.
● Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over weight.
● Powder coated finish provides long-lasting high-quality appearance, damage-resistance, and durability.
Specifications
● Overall Dimensions: 123”L x 102”W x 27 1⁄4”H
● Tire Pan Width:
● 79 1/2 in. maximum width● 43 3/4 in. minimum width
● Tow Capacity - 4900 lbs
● Empty Weight: 475lb
● Maximum Load Capacity: 3000lb (Tow Capacity)(axle)
● Coupler: 2”
● Finish: Powder-Coated
● 6,500lb Lashing Winches
● 12,000lb Rated Tire Nets (Free straps included)
● Dual Safety Chain Set
● Heavy Duty Spindles & Cast Hubs w/ Easy Lube Hub
● Sturdy Steel Fenders
● Tires: 14'' Heavy Duty
● Tire Size: ST205/75 D14
● Tire Pressure: 65 psi - Cold
● DOT Approved Lighting
● Pre- Wired Factory Wiring Harness
● Electric Brake Capability ( Brakes Not included)
● LED Taillights
● Maintenance Free Teflon Pads for Easy Turning Pan
● Warranty: 1-yr Limited Warranty
Requirements
● Flat 4 Connector
● 2" Ball
● 12"-16" Tongue Height
● Some Assembly Required
Shipping
*Flat Rate Shipping To Terminal $349.00, Shipping only applies to the following states CA, OR, WA, NV, AZ, UT & ID. Due to Trailer sizes, trailers are shipped to nearest XPO LOGISTIC SERVICE CENTER or Business with forklift or Dock. Items usually ship 2-3 business days after purchase transit days range from 2-4 days. Please contact us for an exact shipping address for the terminal (562-788-0416)

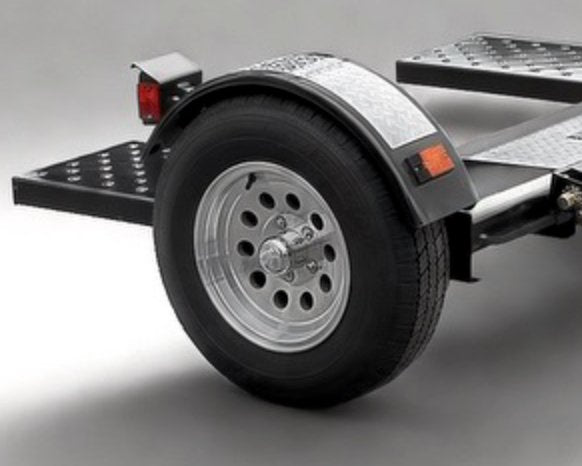

Car Tow Dolly
Regular price $1,249.00 CHECK OUT OUR: http://bit.ly/Premium-Edition-Tow-Dolly
Residential Delivery Now Available
Need to haul your car, truck or SUV but don’t want to pull a heavy enormous trailer? You've come to the right place, our Lightweight power coated Car dolly is the perfect cost-effective solution for you!
These are not your typical tired old rental car dollies. They’re brand new models! We take pride in the all-steel construction, professional finish, and quality components that go into every single one of our tow dollies.
An 80" Swivel carrying pan comes standard on our units. The swivel pan towing method on a car dolly is designed to do the steering for your car. The swivel pan rests on 2 maintenance-free Teflon pads, ensuring smooth cornering all the time. Tilt down ramps, also integrated to save time on loading and unloading, No more having to deal with rattling ramps!
Loading on a car consist of just the removal of a master pin, safety collar and installment of wheel straps. Optional braking systems are offered for this tow car dolly.
Tow Dolly Ships To the (Nearest XPO Destination Center)
Tow Dolly Specifications
-
Overall Dimensions L x W x H (in) - 123 x 102 x 27 1/4
-
Tow Capacity - 4900 lbs
-
Heavy Duty Frame
-
2'' Coupler
-
Powder Coat Finish
-
6,500lb Lashing Winches
-
12,000lb Rated Tire Nets
-
Dual Safety Chain Set
-
Heavy-Duty Spindles & Cast Hubs w/ Easy Lube Hub
-
Sturdy Steel Fenders
-
14'' Heavy-Duty Tires
-
DOT Approved Lighting
-
Pre- Wired Factory Wiring Harness
-
Electric Brake Capability
-
LED Taillights
-
Maintenance Free Teflon Pads for Easy Turning Pan
-
Tire Size - ST205/75 D14
-
Tire Pressure - 65 psi - Cold
-
Empty Weight - 475lb
-
Maximum Load Capacity - 3000lb (Tow Capacity)(AXLE)
-
ELECTRIC BRAKE KIT SOLD SEPARATELY
Tire Pan Width
-
79 1/2 in. maximum width
-
43 3/4 in. minimum width
Warranty
1-yr Limited Warranty
Shipping
*Flat Rate Shipping To Terminal $349.00, Shipping only applies to the following states CA, OR, WA, NV, AZ, UT & ID. Due to Trailer sizes, trailers are shipped to nearest XPO LOGISTIC SERVICE CENTER or Business with forklift or Dock. Items usually ship 2-3 business days after purchase transit days range from 2-4 days. Please contact us for an exact shipping address for the terminal (562-788-0416)

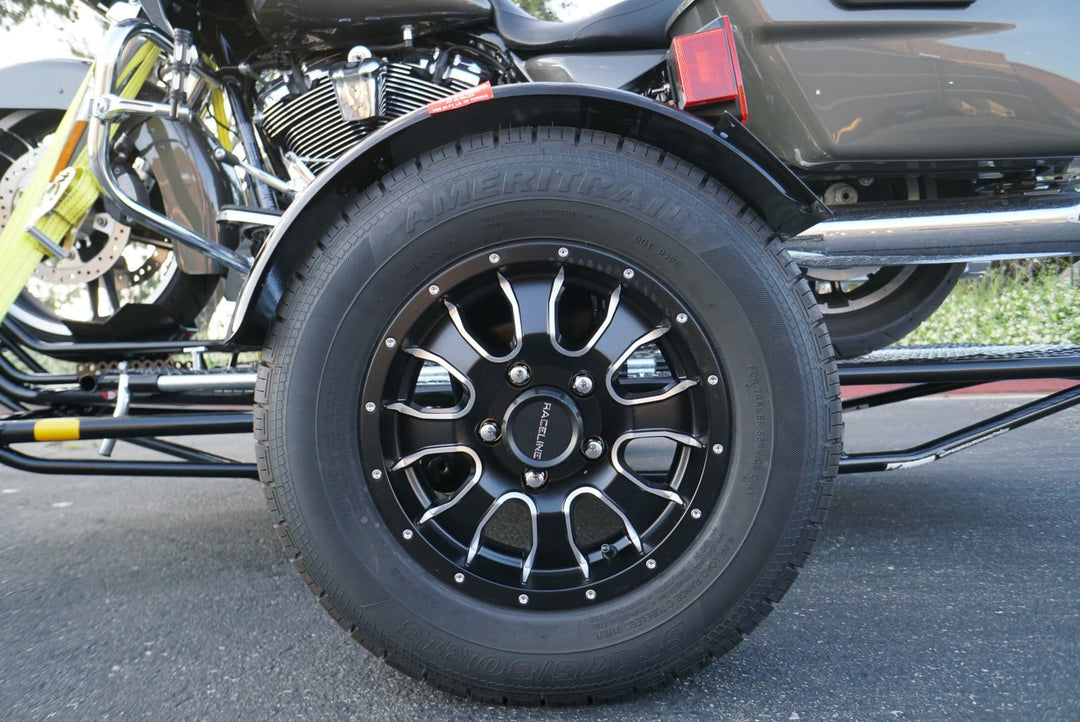

Dirt Bike Trailer, Scooter & Sport Bike Trailer
Regular price $2,999.00 Sale price $2,149.00Foldable 3-Rail Dirt bike Trailer
Tow Smart Trailers’ Small Cargo Trailer features a unique 3-rail design with fully adjustable chocks, meaning you can use it to haul nearly anything. Plus, because this combination bike-trailer-cum-scooter-trailer also features Tow Smart’s industry-leading lightweight, heavy-duty construction, it’ll get take whatever manner of toys or gear you load it with to nearly anywhere you can think of going.
To bike owners of all persuasions, we say: we’re proud to have this multi-use dirt bike trailer for sale at our store, since it is fully equipped to haul almost any combination of bikes — including single or double heavy bikes and pleasure cruisers, as well as up to three dirt bikes, adventure bikes, or sport bikes — without much setup or any fuss. Just keep your load under the weight limit and you’ll be good to go! Whether you choose to use our Foldable Dirtbike Trailer as an everyday bike trailer, a sportbike trailer, or a dirt bike trailer, it’ll easily get your gear where you need to go, then stow quickly with a small storage footprint. That way you can spend more time riding and less time looking for someplace to park.
To scooter owners and other folks who need a small cargo trailer, we say: you might have never thought to look for a dirt bike trailer for sale, but look no further. This small cargo trailer easily functions as a two scooter trailer. What’s more, its expanded deck, long loading ramps, and low angle of approach ensure that you’ll have an easy time loading, hauling, and unloading whatever equipment you need to. All the while, its frame and deck designs are lightweight, slip-resistant, easy-to-clean, rust-resistant, and east-to-store. That means this small Dirt bike trailer is perfect for any hauler with any degree of experience and physical ability.
No matter who uses this small cargo trailer and what uses you find for it, when you invest in a Tow Smart 3-Rail Dirt Bike Trailer you’re making a major investment in your freedom to go anywhere, on any adventure, with ease. This Dirt bike Trailer will make your bikes Stand out from all competition whether on the Track or at the Pits.
Features
- The best value combination small cargo trailer, scooter trailer, and dirt bike trailer for sale.
- Tow Smart Trailers’ industry-leading sportbike trailer/dirt bike trailer design and specifications: keep your adventure bikes safe during hauling and keep your options for adventures endless.
- 3-rail trailer design can accommodate a wide variety of bikes, scooters, and other equipment, as well as many different equipment combinations.
- Wide channel rail accommodates a vast range of tire sizes, making this small cargo trailer just as capable of hauling narrow-wheeled adventure bikes as it is of handling the standard stresses of a heavy or pleasure bike trailer.
- Folding/stow-away tailgate and loading ramps give this small cargo trailer a truly space-saving design (and a smaller-than-average storage footprint).
- Long ride-up loading ramp ensures a low angle of approach and easier alignment than thinner, shorter ramps (or using wooden boards) , promising safe, easy one-person loading for even when used as a heavy bike trailer.
- Integrated, fully-adjustable wheel chocks makes loading, unloading, and tying off a cinch, no matter what gear (or combination of gear) you decide to haul with it.
- Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over the pre-load weight limit.
- The diamond treadplate deck prevents slipping, even in wet and low-visibility conditions.
Specifications
● Trailer Deck Dimensions: 52″ x 70″
● Clearance To The Bottom Of The Deck: 13 1⁄4’’
● Clearance To The Bottom Of The Undercarriage: 7’’
● Center To The Center Of Each Rail: 20 1⁄4’’
● Tailgate Length: 24’’
● Folded Length: 87’’
● Maximum Overall Width: 84’’
● Maximum Extended Length: 110’’
● Width Between Fenders: 67″
● Maximum Motorcycle Length – Outside Rail: 77’’
● Maximum Motorcycle Length – Center Rail: 96’’
● Tire Size: St175/80 R13
● Wheel: 13’’ Aluminum Mag
● Air Pressure: 50 Cold Psi
● Empty Weight: 380 lb
● Maximum Load Capacity: 1,500 lb
● Hitch: Class 2 Or Higher
● Hitch Height: 19’’ - 21’’ H
● Ball Size: 2’’
● Suspension: Independent Torsion Axle
● Frame Material: Steel Tubing
● Finish: Powder Coated
REQUIREMENTS
- 2" INCH BALL
- CHAIN LINKS
- Electrical Connector: 4-Pin Flat
SHIPPING
*Shipping only applies to the following states CA, OR, WA, NV, AZ, UT & ID. Due to Trailer sizes, trailers are shipped to the nearest XPO LOGISTIC SERVICE CENTER or Business with forklift or ADDITIONAL FEES FOR CURB SIDE DELIVERY . Items usually ship 4-5 business days after purchase transit days range from 2-4 days. Please contact us for an exact shipping address for the terminal (562-788-0416).
Premium Folding Tow Dolly
Regular price $4,195.00 Sale price $2,699.00Folding Car Tow Dolly With Surge Brakes
Stow N Go Line
From our Heavy Duty Car Tow Dolly line up we bring you another quality space saving design "The Stow N Go Folding Car Dolly." Has the ability to store and fold for storage, reducing in size by Fifty Percent ( 5ft x 8.5ft ) . Paired With a collapsable trailer tongue and Folding Ramps to deliver a space saving solution like no other. Premium Models like this unit is only offered with the highest quality components money can buy to ensure reliability for every long mile trip. Not only do we provide you with storage features. This unit comes standard with Demco Drum Brake system (Surge Brakes). Simple loading mechanism allows anyone to load up a vehicle in minutes. Loading up a Car consist of removing the Safety Collar, Safety Pin, Lowering the ramps , Driving onto the Swivel pan and tying the vehicle down with the with straps and 2" winches provided.
Free Shipping to the nearest XPO LOCATION Ships fully assembled Simply unload from pallet and drive off.
● Striking chrome and black finish ensures this car tow dolly will look every bit as luxurious as it is.
● Lightweight frame is easy for one person to maneuver, set up, and store.
● Convenient trailer handle welded near the coupler makes attaching and detaching the car tow dolly a breeze.
● Tie town straps, winches, and safety chain come standard and are integrated with the car tow dolly design to maximize ease-of-use and user safety.
● Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over weight.
● Powder coated finish provides long-lasting high-quality appearance, damage-resistance, and durability.
Specifications
● Overall Dimensions: 123”L x 102”W x 27 1⁄4”H
● Tire Pan Width:
79 1/2 in. maximum width - 43 3/4 in. minimum width● Tow Capacity - 4700 lbs
● Empty Weight: 550lb
● Maximum Load Capacity: 3000lb (Tow Capacity Front axle weight - Can Haul up to 4,700lb
● Coupler: 2”
● Finish: Powder-Coated
● 6,500lb Lashing Winches
● 12,000lb Rated Tire Nets (Free straps included)
● Dual Safety Chain Set
● Heavy Duty Spindles & Cast Hubs w/ Easy Lube Hub
● Sturdy Steel Fenders
● Tires: 14'' Heavy Duty
● Tire Size: ST205/75 D14
● Tire Pressure: 65 psi - Cold
● DOT Approved Lighting
● Pre- Wired Factory Wiring Harness
● Electric Brake Capability ( Brakes Not included)
● LED Taillights
● Maintenance Free Teflon Pads for Easy Turning Pan
● Warranty: 1-yr Limited Warranty
Requirements
● Flat 4 Connector
● 2" Ball
● 12"-16" Tongue Height
● Some Assembly Required
Shipping
*Flat Rate Shipping To Terminal $349.00, Shipping only applies to the following states CA, OR, WA, NV, AZ, UT & ID. Due to Trailer sizes, trailers are shipped to nearest XPO LOGISTIC SERVICE CENTER or Business with forklift or Dock. Items usually ship 2-3 business days after purchase transit days range from 2-4 days. Please contact us for an exact shipping address for the terminal (562-788-0416)
Single Rail Motorcycle Trailer
Regular price $3,200.00 Sale price $1,999.00Single Rail Motorcycle Trailer
DUE TO DEMAND Unit is Sold Out Till Late January 2021 Units will ship out how the orders were received. Check out our other Motorcycle Trailer (FREESTYLE TRAILER)
Built with Tow Smart Trailers’ powder-coated steel pipe frame, stow-away ramps, and folding deck, our Single Rail Motorcycle Trailer features all the durability and flexibility you need to stay safe as a single rider on the move. This motorcycle trailer stands out from the competition with its three sturdy side-by-side ramps, smart suspension, and small, lightweight storage configuration. The modular ramps ensure safe, easy one-person loading. These ramps can be combined to create a single loading ramp to safely handle any tire width or vehicle weight.
Features
● Foldable tailgate for space-saving design and smaller-than-average storage● Wide channel rail accommodates a vast range of tire sizes.
● Three-piece 42.5” long ride-up loading ramp ensures a low angle of approach
● Integrated wheel chock makes loading, unloading, and tying off a cinch.
● Tubular steel and steel mesh construction for a high-strength, low-weight design so you can haul more per load without going over weight.
● Diamond tread plate deck prevents slipping, even in wet and low-visibility conditions.

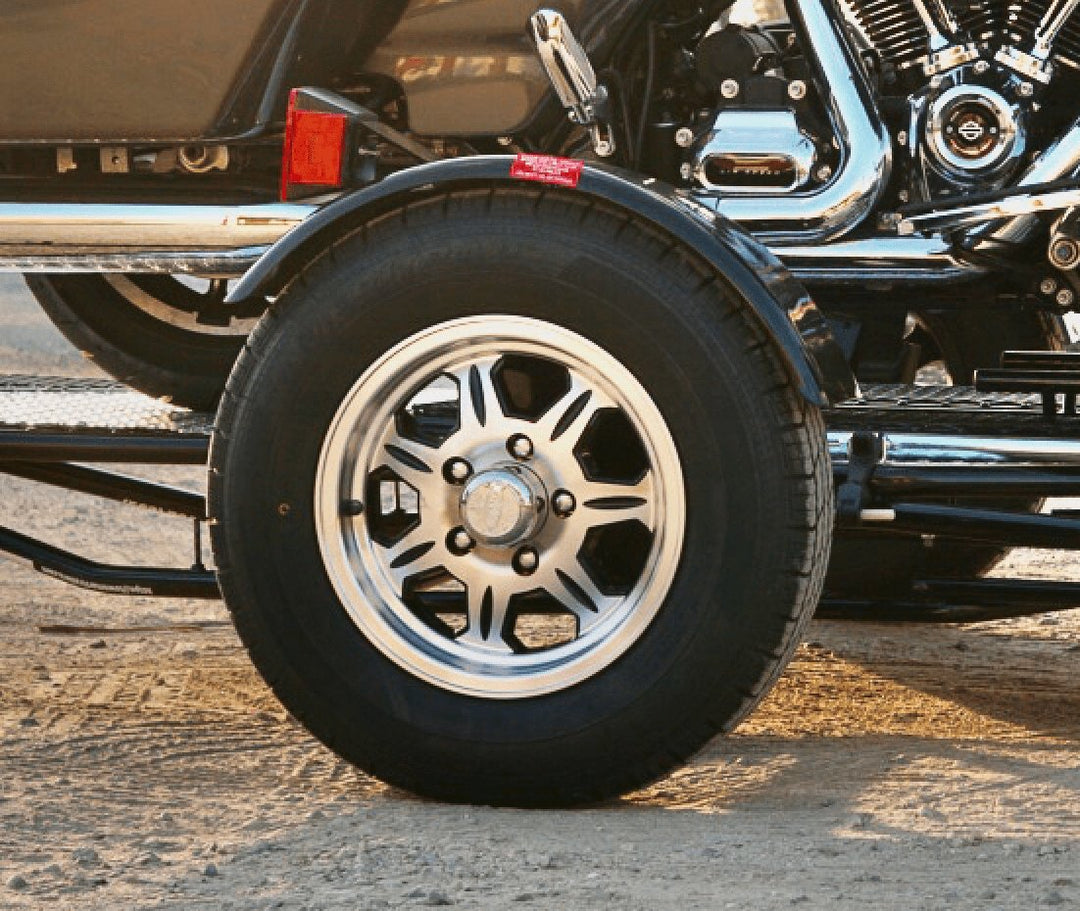

● FREE 13’’ Aluminum wheel and radial tire upgrade ($399.90 value)
Specifications
● Clearance to the Top of the Deck: 13’’ H
● Tailgate Length: 32’’ L
● Folded Length: 85’’ L (from tip of coupler to end of folded bed)
● Overall Extended Length: 117’’ L (from front of coupler to end of open trailer bed)
● Outside Fender-to-Fender Width: 72’’
● Inside Fender-to-Fender Width: 54’’
● Height: 27’’
● Maximum Motorcycle Length: 98’’ L (from motorcycle’s front tire to its rear axle)
● Trailer Deck Type: Aluminum Diamond Tread Plate
● 3-Piece Loading Ramp
○ Overall dimensions: 33’’ W x 42.5’’ L○ Outside ramps (2): 11’’ W x 42.5’’ L
○ Center ramp (1): 11’’ W x 42.5’’ L
● Hitch: Class 2 or Higher
● Hitch Height: 21’’-22’’
● Ball Size: 2’’
● Tire Size: ST175/80R13 Radial Tire
● Wheel: 13” Aluminum Split-Spoke
● Air Pressure: 50 cold psi
● Suspension:
○ Independent Torsion Axle○ Suspension Mounts
○ Double Mounting Brackets
● Empty Weight: 325lb
● Maximum Load Capacity: 1000lb
● Frame Material: Steel Tubing
● Finish: Powder Coated
Requirements
● Some Assembly Required
Shipping
*Shipping only applies to the following states CA, OR, WA, NV, AZ, UT, NM & ID. Due to Trailer sizes, trailers are shipped to the nearest XPO LOGISTIC SERVICE CENTER or Residential Curbside delivery is possible. Items usually ship 2-3 business days after purchase transit days range from 2-4 Business days. Please contact us for an exact shipping address for the terminal (562-788-0416).
