Tow Smart • UTV Deck System
Long Bed UTV Truck Rack
Universal fit for factory 8′ long-bed trucks. Built to haul your side-by-side and keep your camper free. No drilling. Made in Santa Fe Springs, CA.
Long Bed Only — 8′ Free 12.2 ft Ramp Upgrade — $600 Value
2×2 Steel Frame
No-Drill Mount
3000 lb Rated
Powder-Coated
Made in California
12 ft Ramps
What’s Included

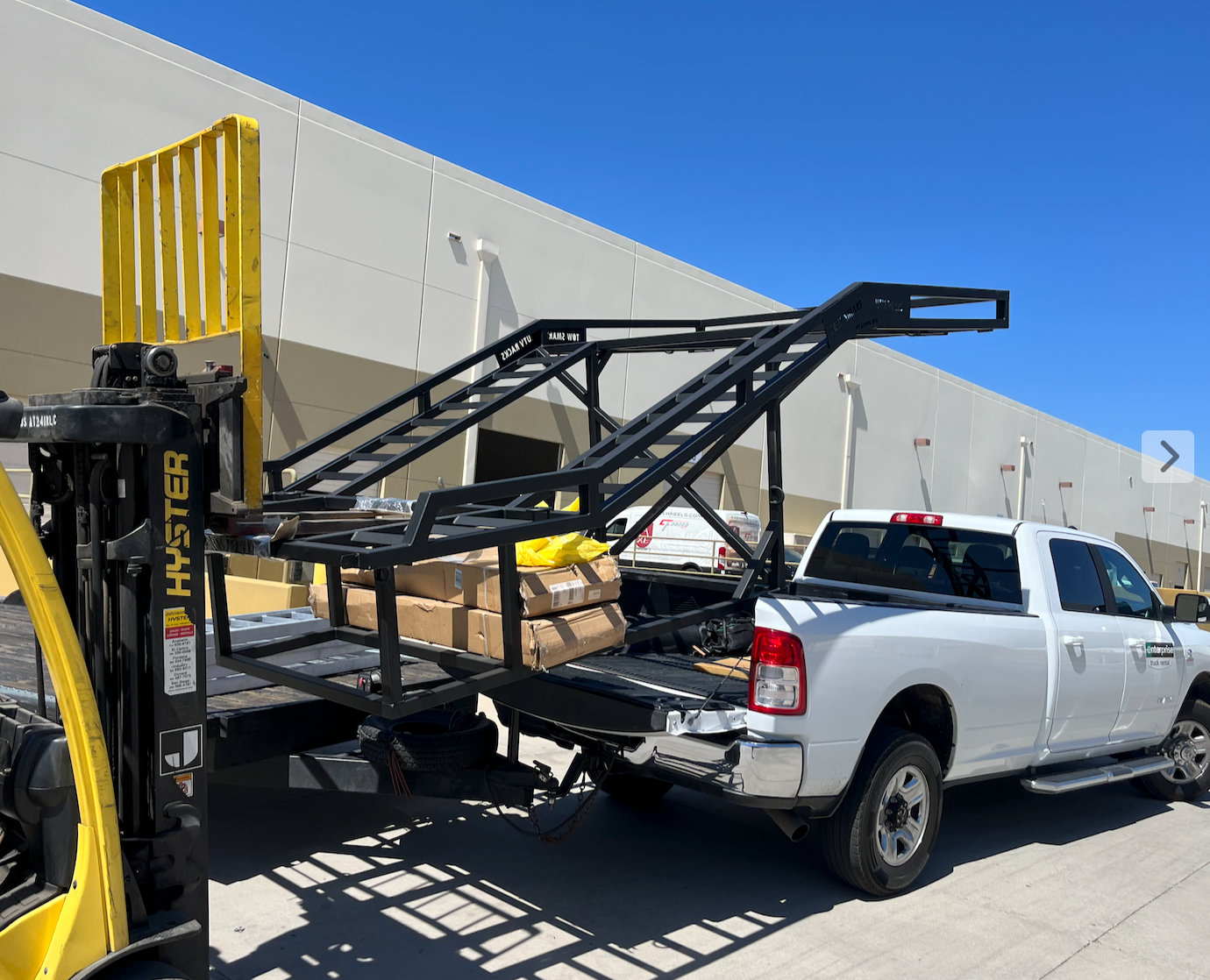

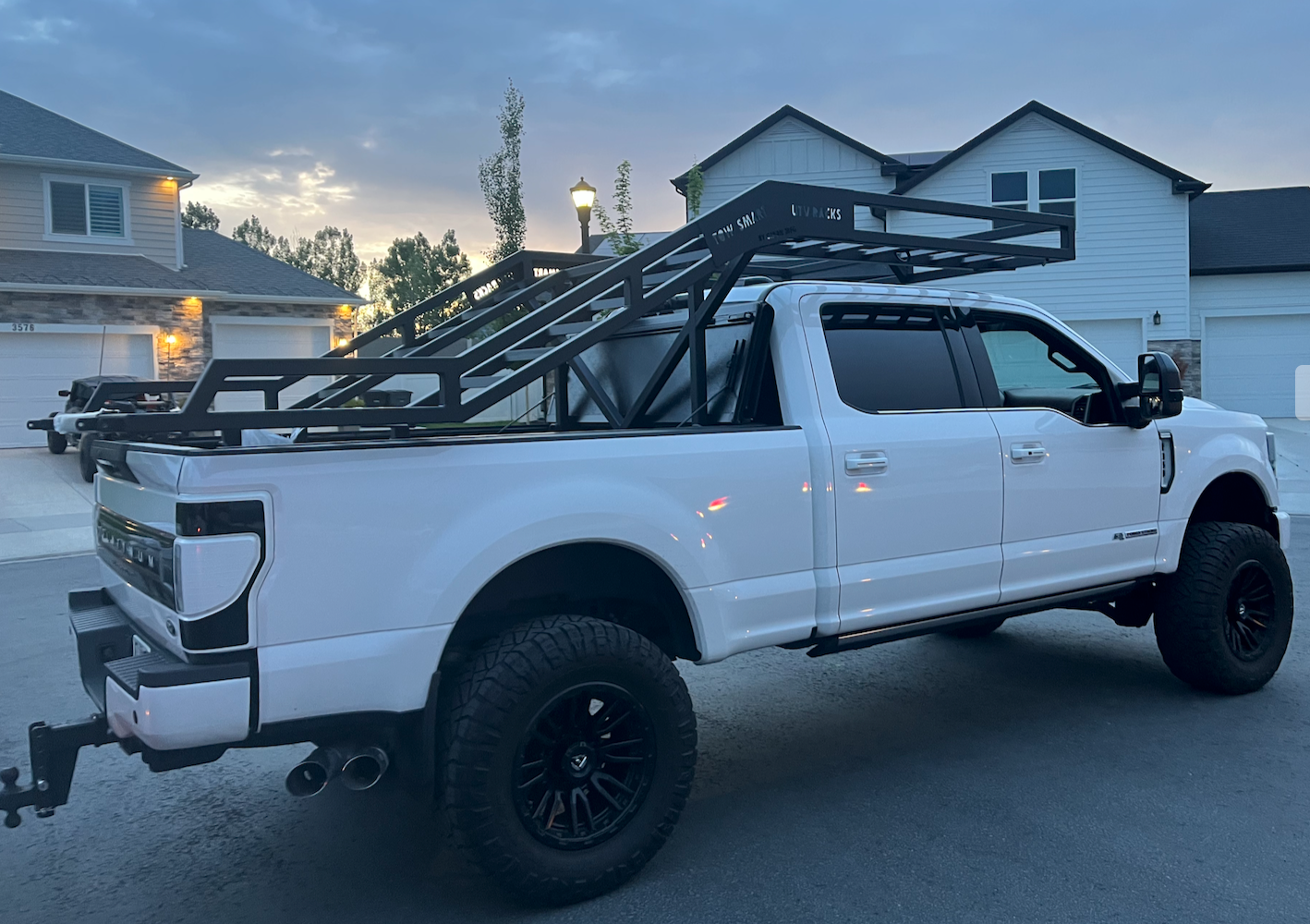

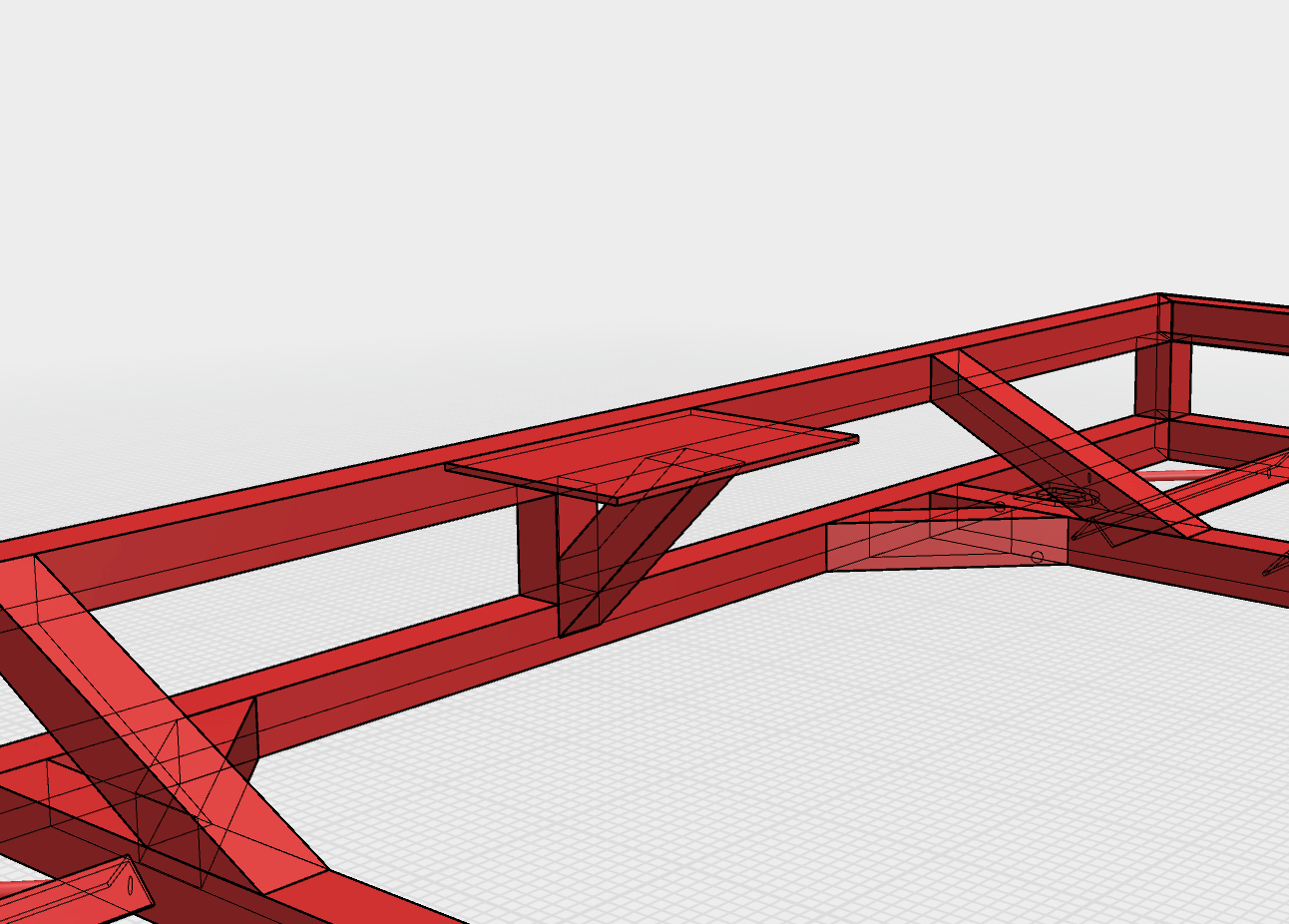

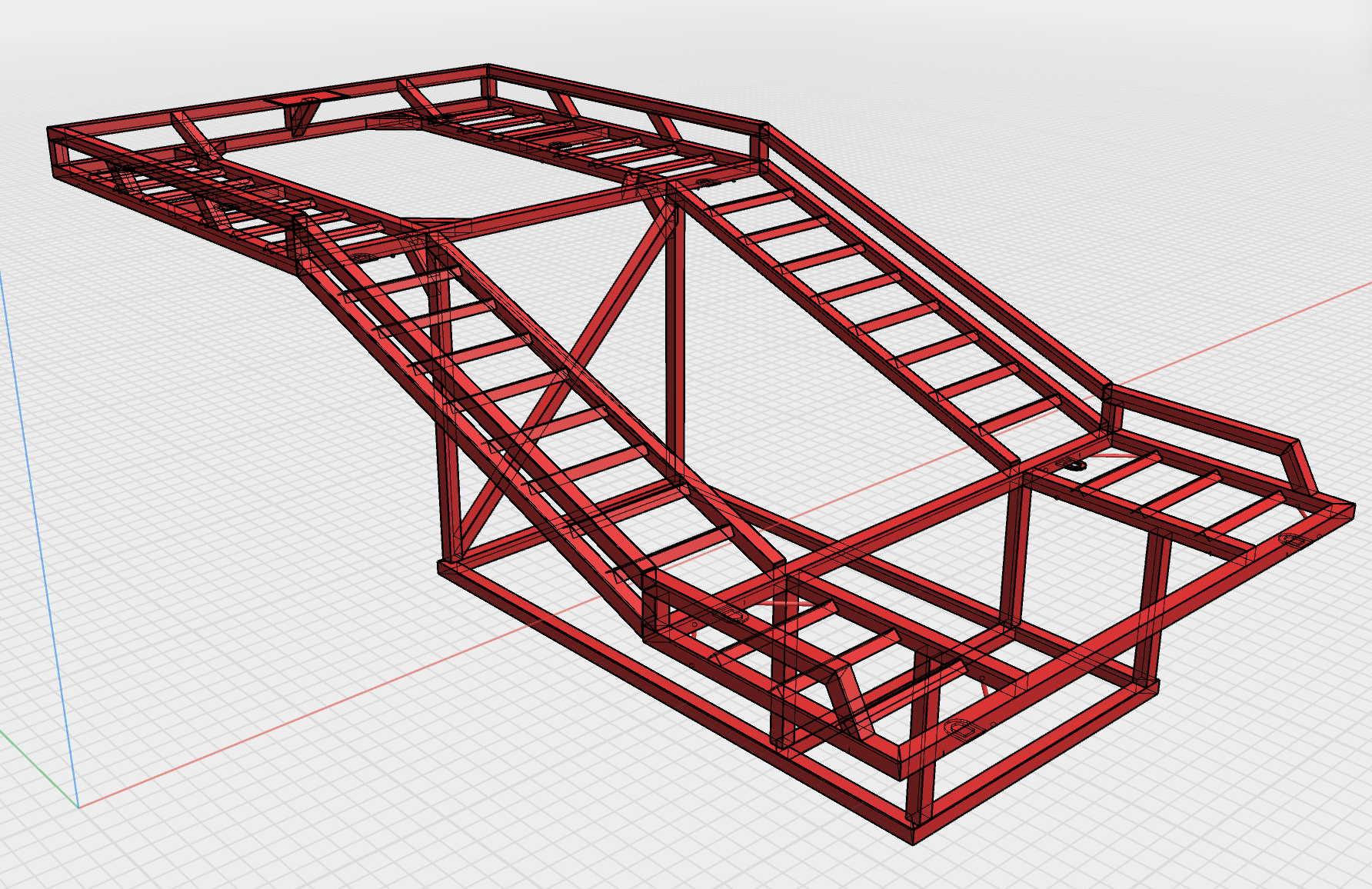

- Long Bed UTV Rack (2×2 steel, powder-coated flat black)
- (2) Bi-fold aluminum ramps — 12.2 ft × 18" (pinned safety), 3,000 lb combined
- (4) Heavy-duty turnbuckles — secure to factory corner tie-down points

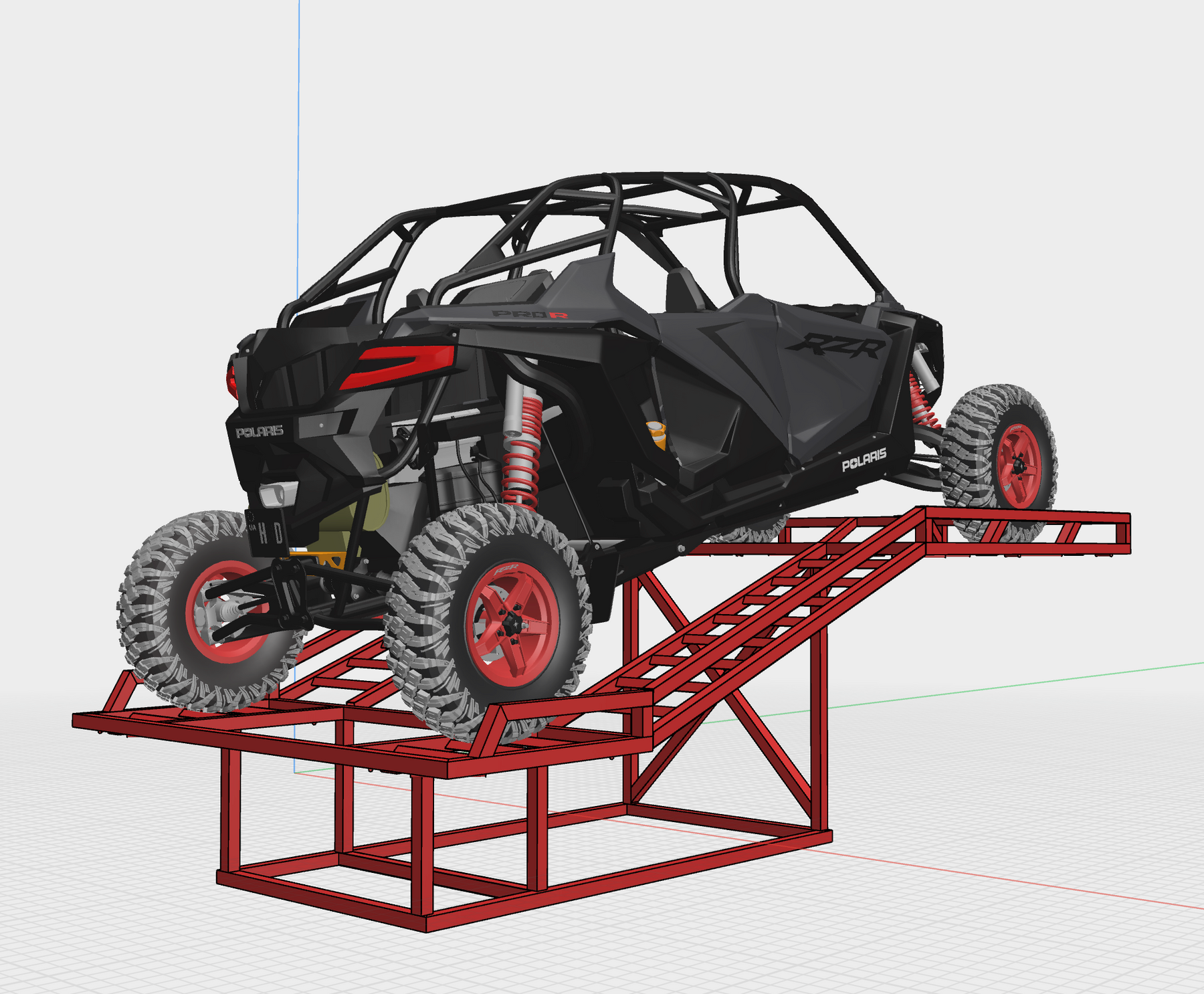

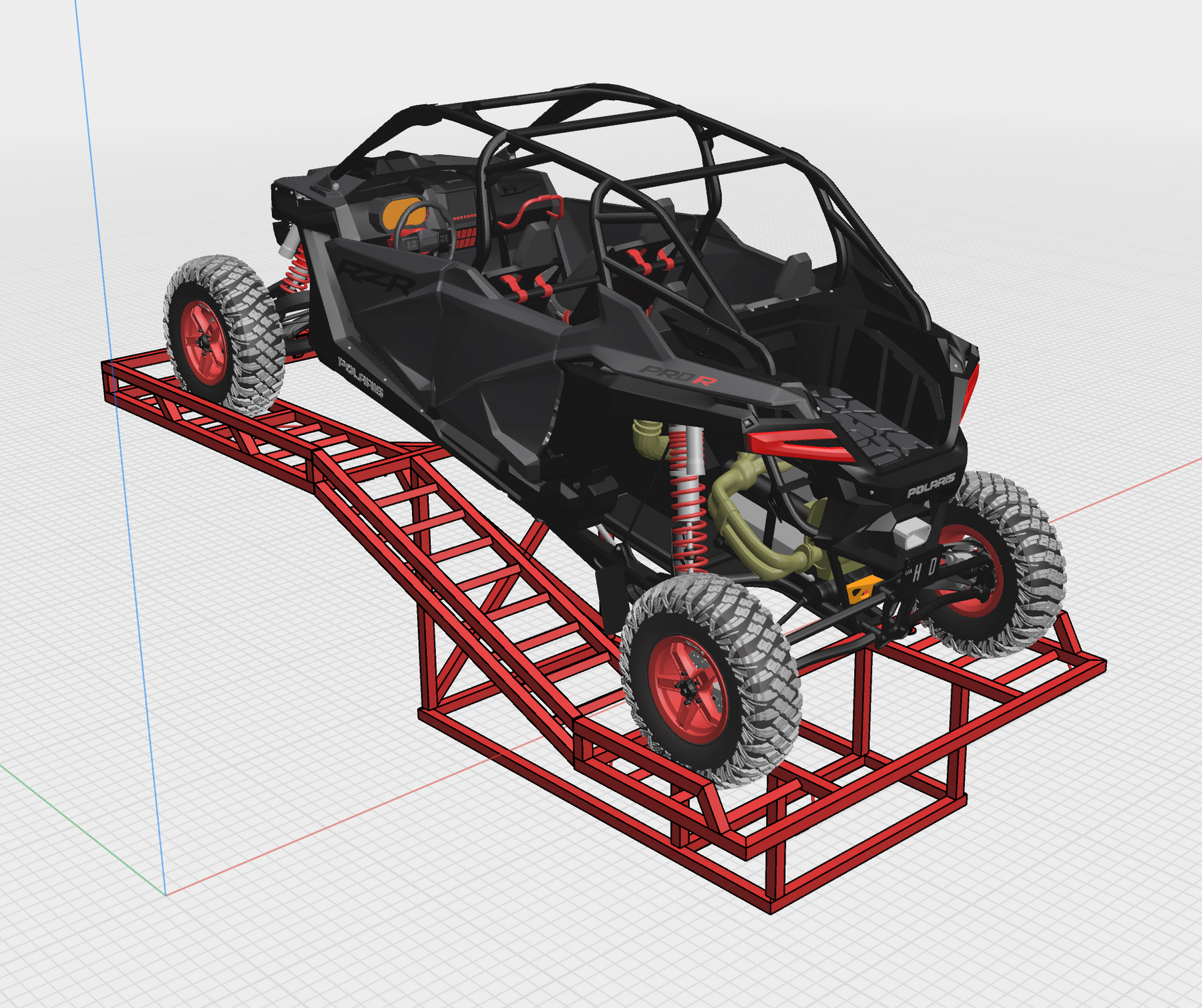

- Pre-positioned front-wheel tie-down points where the front wheels sit
- Welded D-rings + 3-point per-wheel tie-downs
- 6" side railings for confident loading
Specifications — 76″ Model (2-Seater)
| Overall Width | 76" |
| Usable Width | 72" |
| Usable Length | 168" |
| Overall Length | 176" |
| Center Width | 44" |
| Base Length | 96" |
| Base Width | 48" |
| Overall Height | 57" |

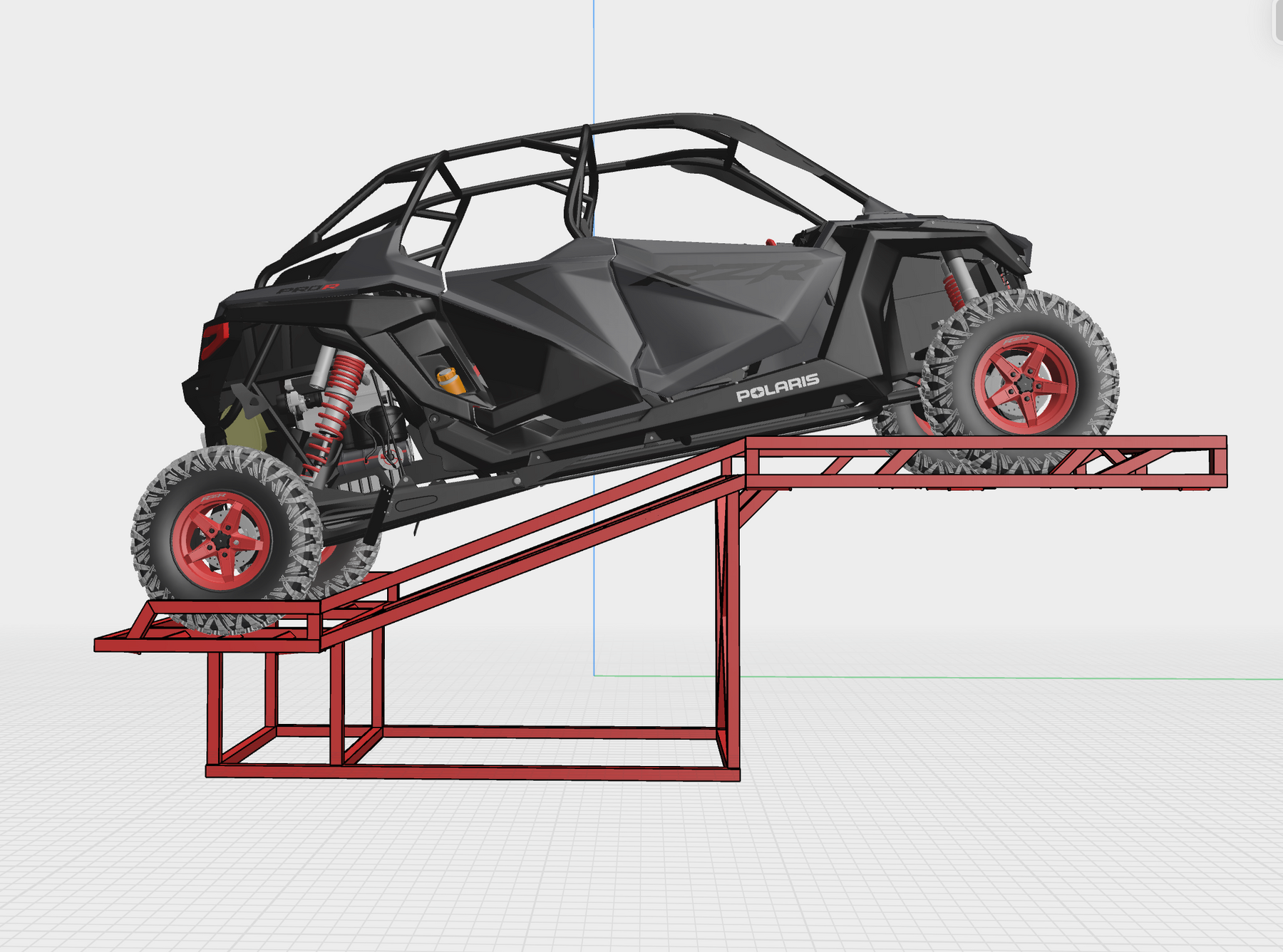

| Rear Wheel Platform Height | 25" |
| Front Wheel Platform Height | 51" |
| Wheel Track (each) | 17" |
| Rack Weight | ~450–550 lbs (config-dependent) |
| Ramp Length | 12.2 ft upgrade included |
Specifications — 86″ Model (4-Seater / Wide)
| Overall Width | 86" |
| Usable Width | 82" |
| Usable Length | 168" |
| Overall Length | 176" |
| Center Width | 44" |
| Base Length | 96" |
| Base Width | 48" |
| Overall Height | 57" |
| Rear Wheel Platform Height | 25" |
| Front Wheel Platform Height | 51" |
| Wheel Track (each) | 18" |
| Rack Weight | ~450–550 lbs (config-dependent) |
| Ramp Length | 12.2 ft upgrade included |
Why RV Owners Choose This Rack

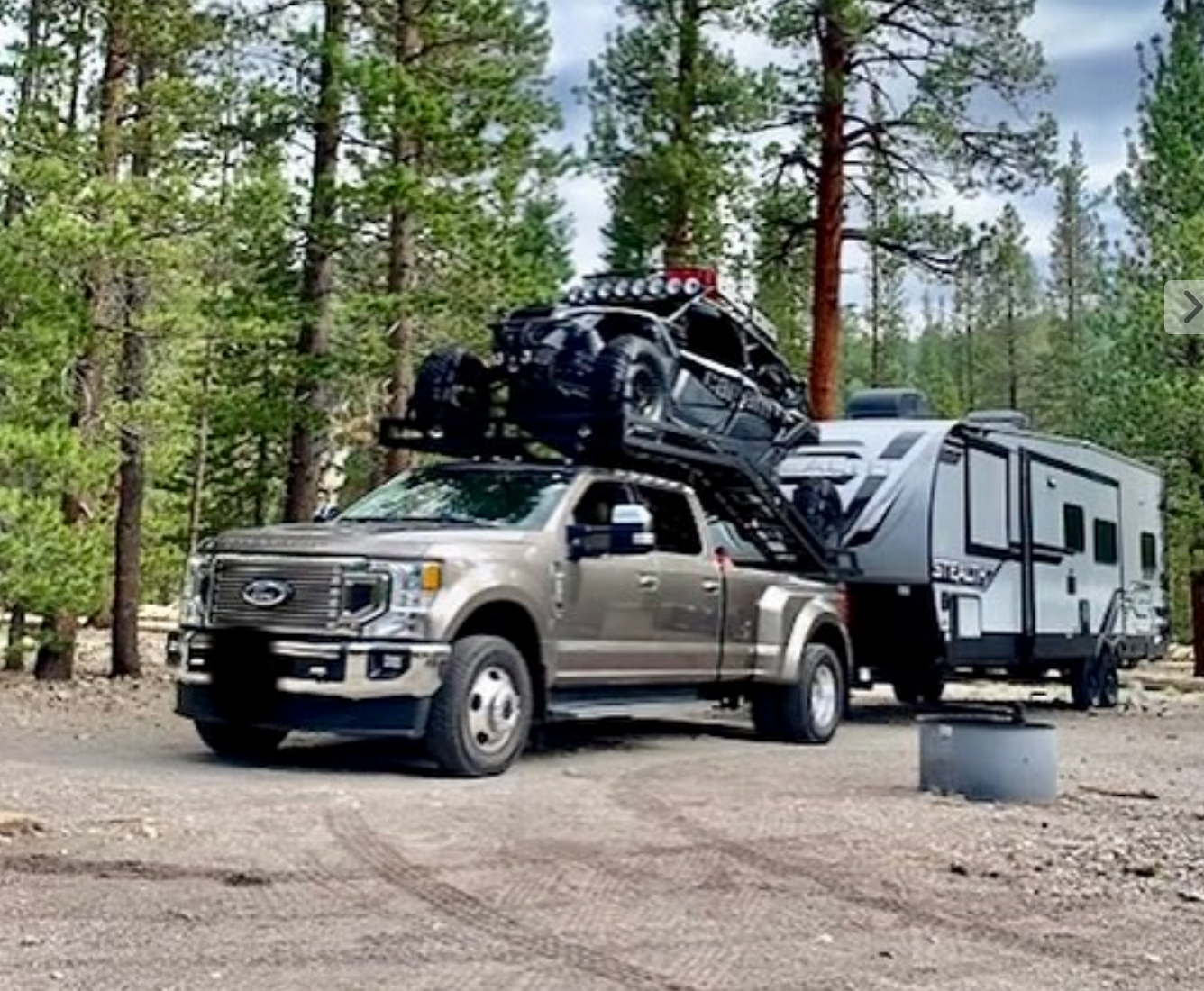

If you roll with a travel trailer or camper, this rack solves the classic problem: how do you tow your home on wheels and bring the side-by-side? With our long-bed UTV rack, your hitch stays free for a bumper-pull camper while your SxS rides securely on top of the truck bed. That means one clean setup, one campsite, and zero compromises. Pull in, drop the trailer, unload the UTV in minutes, and you’re on the trail while everyone else is still shuffling rigs.

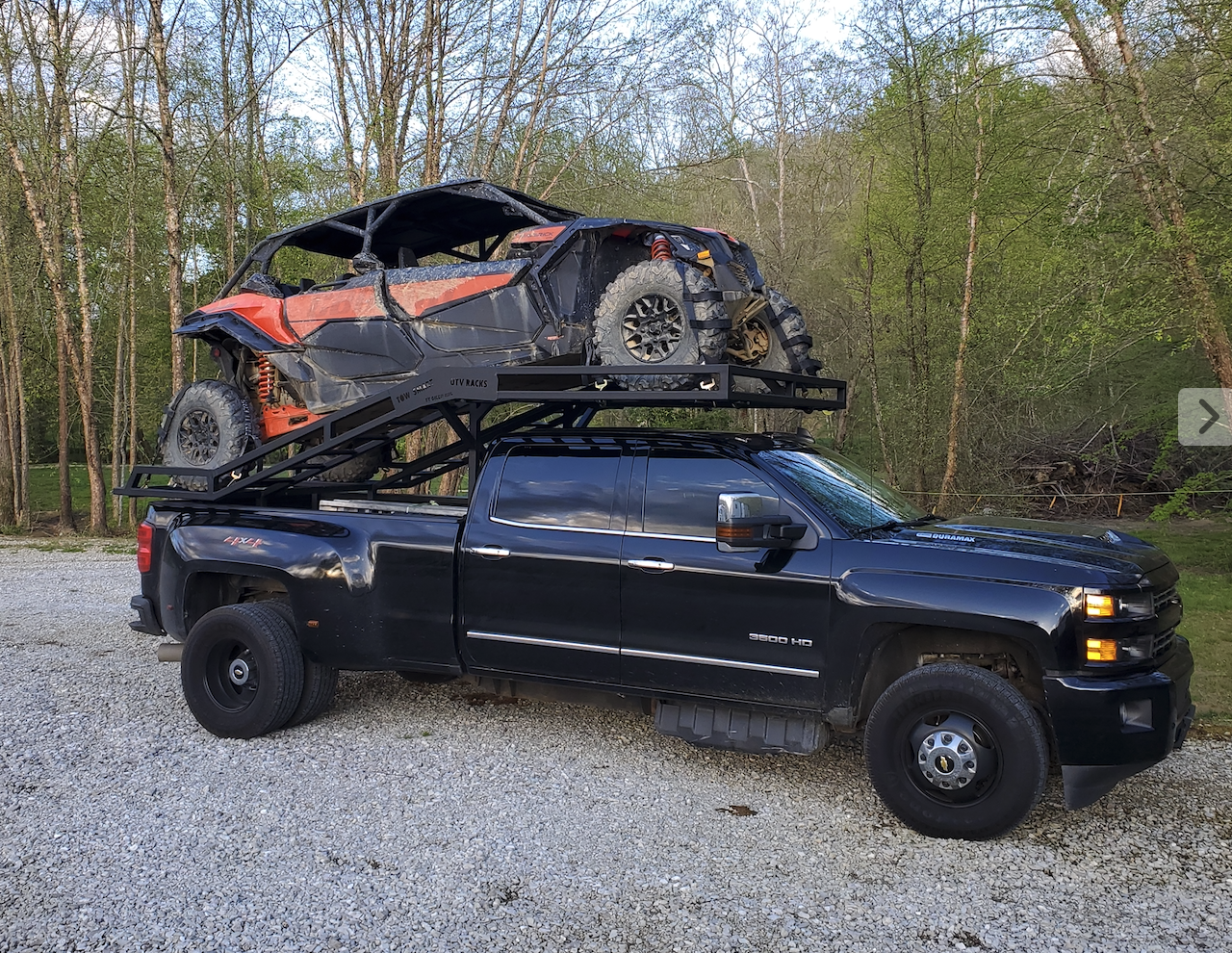

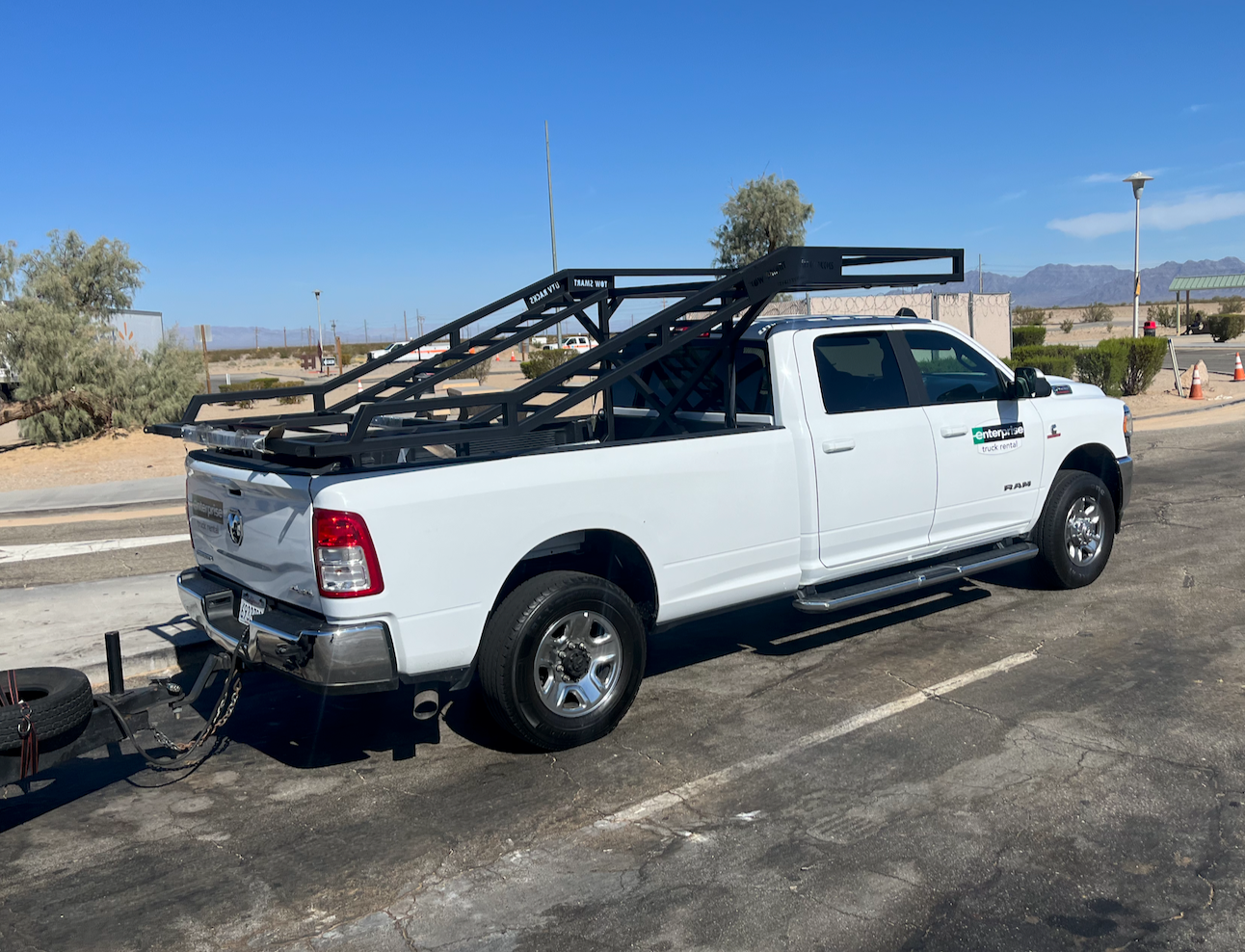

The deck is purpose-built for factory 8′ long-bed 2500/3500 trucks (and flatbeds), so it plays perfectly with the tow vehicles RVers already run. Choose the 76″ model (72″ usable) for most two-seater machines, or the 86″ model (82″ usable) for wide four-seaters like Pro R and X3 Max— both options share the same smart layout and easy loading. Pre-positioned front-wheel tie-down points are welded exactly where your tires land, so you clip in fast and cinch down once. The included 12.2-foot aluminum ramps pin straight to the rack for a stable approach and quick stow when you’re done.
RV life is about reliability and space. This rack gives you both. The fully welded construction, no-drill mounting to factory tie-downs, and up-to-3,000-lb payload rating deliver the confidence to haul today’s bigger UTVs with gear without beating up your bed. Because it’s a universal long-bed fit, you avoid the measuring, delays, and resale headaches of custom one-offs—swap trucks or trailers later and keep the same deck working for you. It’s all about spending less time setting up and more time riding, grilling, and dialing in camp.
In short: if you want to tow your camper and bring the SxS on every trip, this is the cleanest, strongest, most flexible way to do it—built in California, designed for real-world RV use, and made to load fast, ride quiet, and look right on a serious tow rig.
- Keeps your hitch free for a bumper-pull camper or boat
- Universal 8′ long-bed fit (2500/3500 trucks) and flatbed compatible
- 76″ for most 2-seaters • 86″ for wide 4-seaters
- Pre-placed front-wheel tie-downs for rapid, repeatable securement
- Includes 12.2-ft, 18″-wide aluminum ramps with pin-in safety
- No-drill install to factory tie-downs • fully welded construction
- Up to 3,000-lb payload capacity for machine + gear
- Built in Santa Fe Springs, CA
FAQs
- 1) What trucks will this UTV rack fit?
- This rack is designed to fit long bed 2500 and 3500 trucks as well as flatbeds. It will not fit short bed trucks. Popular compatible models include the RAM 2500/3500, Chevy Silverado 2500/3500, GMC Sierra 2500/3500, and Ford F-250/F-350 Super Duty.
- 2) What is the payload capacity of the UTV rack?
- The UTV deck rack supports up to 3,000 pounds of payload, making it strong enough to carry today’s heaviest four-seater UTVs with extra gear. Its fully welded aluminum design ensures durability while keeping overall weight low.
- 3) Does the UTV rack require assembly?
- No. The rack comes fully welded and ready to use. The only step required is drilling holes in the ramps to secure the locking pins into the rack. This makes installation simple and ensures long-term strength.
- 4) How do I install the UTV rack?
- Installation is straightforward: place the fully welded rack into your long bed truck, position the included ramps, and drill the pin holes to secure them in place. No complex assembly is needed, and most installs take under an hour.
- 5) How long does shipping take?
- Shipping and handling typically take about 3 weeks from the time of order. All racks ship from California, and freight tracking is provided once your unit leaves the warehouse.
- 6) What warranty is included with the UTV rack?
- Every rack includes a 1-year manufacturer’s warranty. This covers defects in materials and workmanship, giving you peace of mind when hauling your UTV.
- 7) Will this rack fit a short bed truck?
- No. This UTV rack is specifically designed for long bed trucks only. Short bed trucks do not provide the necessary clearance and loading length required to safely transport a UTV.
- 8) Can the rack be used on flatbed trucks?
- Yes. The rack is also compatible with flatbed trucks, giving owners of custom haulers and heavy-duty builds a secure way to carry UTVs.
- 9) How heavy is the UTV rack?
- Despite its strength, the rack is built from all-aluminum construction to keep it lighter than steel alternatives. This makes it easier to handle while still supporting a full 3,000 lbs payload.
- 10) Do the ramps come included with the rack?
- Yes. The rack includes 12-foot, 18-inch wide aluminum ramps. The ramps are pinned to the rack for safety, and you simply drill the holes to secure the pins during setup.
